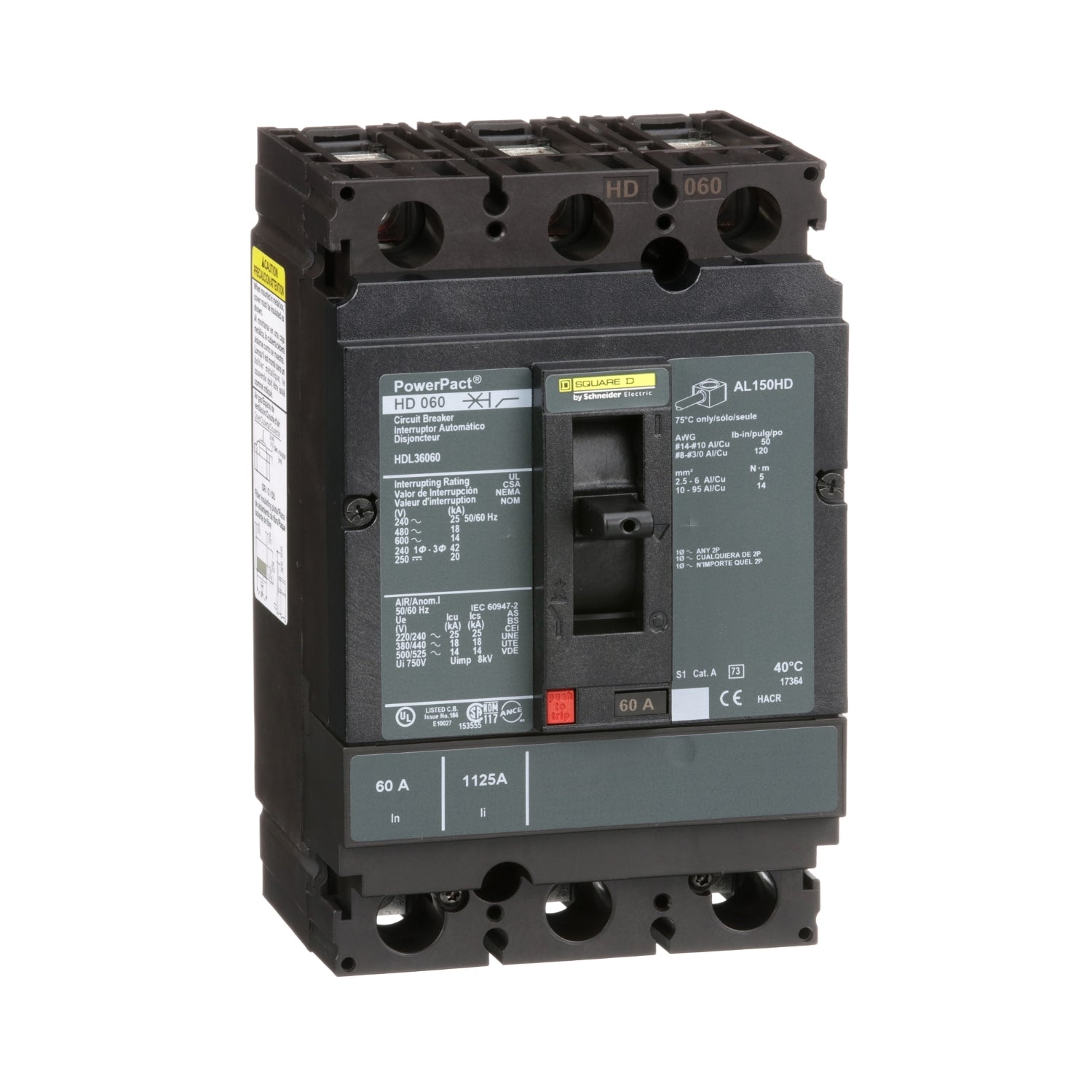

HDL36060 | Schneider Electric Circuit Breaker
HDL36060 | Schneider Electric Circuit Breaker
Part #: HDL36060 Manufactured by: Schneider Electric

HDL36060 | Schneider Electric Circuit Breaker

Regular price
$554.00
Sale price
$554.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The HDL36060 Circuit Breaker, belonging to the PowerPacT H series, is engineered to safeguard electrical systems against o...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: HDL36060
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
HDL36060 | Schneider Electric Circuit Breaker
    HDL36060 | Schneider Electric Circuit Breaker
HDL36060 | Schneider Electric Circuit Breaker
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: HDL36060

Description / Specifications

Description

The HDL36060 is a PowerPacT H-Frame circuit breaker engineered to safeguard electrical systems against overload and short circuit damage. Available with either thermal magnetic or Micrologic electronic trip protection units, this circuit breaker offers versatile protection options.

Featuring thermal magnetic circuit protection, the HDL36060 delivers a breaking capacity of 14kA at 600VAC. Equipped with dual-break rotating contacts, it efficiently reduces peak current during short circuit faults, minimizing potential damage.





Technical Specifications

Part #

HDL36060

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Line Rated Current

60 A

Number of Poles

3P

Protected Poles Description

3t

Control Type

Toggle

Breaking Capacity Code

D

[Ue] Rated Operational Voltage

690 V AC 50/60 Hz IEC 60947-3

Network Frequency

50/60 Hz

[Uimp] Rated Impulse Withstand Voltage

8 kV IEC 60947-2

Trip Unit Technology

Thermal-magnetic

Magnetic Tripping Current

1450 A

Magnetic Hold Current

800 A

Continuous Current Rating

80 %

[Ui] Rated Insulation Voltage

750 V IEC 60947-2

Suitability for Isolation

Yes IEC 60947-2

Utilisation Category

Category A

AWG Gauge

AWG 14...AWG 3/0 aluminium/copper terminal

Local Signalling

Switched off (OFF) 1 trip indicator green)

Mounting Mode

Unit mount lug)

Mounting Support

Lug

Electrical Connection

Lugs, line; Lugs, load

Terminal Identifier

AL150HD

Power Wire Stripping Length

0.63 in (16 mm)

Color

Black

Height

6.42 in (163 mm)

Width

4.09 in (104 mm)

Depth

3.39 in (86 mm)

Net Weight

4.85 lb(US) (2.2 kg)

Quantity per Set

1

IP Degree of Protection

Front cover IP40 IEC 60529

Pollution Degree

3 IEC 60947-1

Ambient Air Temperature for Operation

-13…158 °F (-25…70 °C)

Ambient Air Temperature for Storage

-58…185 °F (-50…85 °C)



Information About HDL36060

The HDL36060 Circuit Breaker, part of the PowerPacT H series, is designed to safeguard electrical systems against damage arising from overloads and short circuits. These circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. The HDL36060 provides thermal magnetic circuit protection with a notable breaking capacity of 14kA at 600VAC.

Equipped with dual-break rotating contacts, the PowerPacT H-Frame circuit breakers effectively reduce the peak current during a short circuit fault. Additionally, they feature an integral push-to-trip button in the cover, enabling manual tripping of the circuit breaker when necessary.

Available in both 2 and 3-pole unit mount and I-Line constructions, the PowerPacT H circuit breakers offer versatility in installation options. The HDL36060 breaker features lugs on both the line and load sides, ensuring secure electrical connections.
