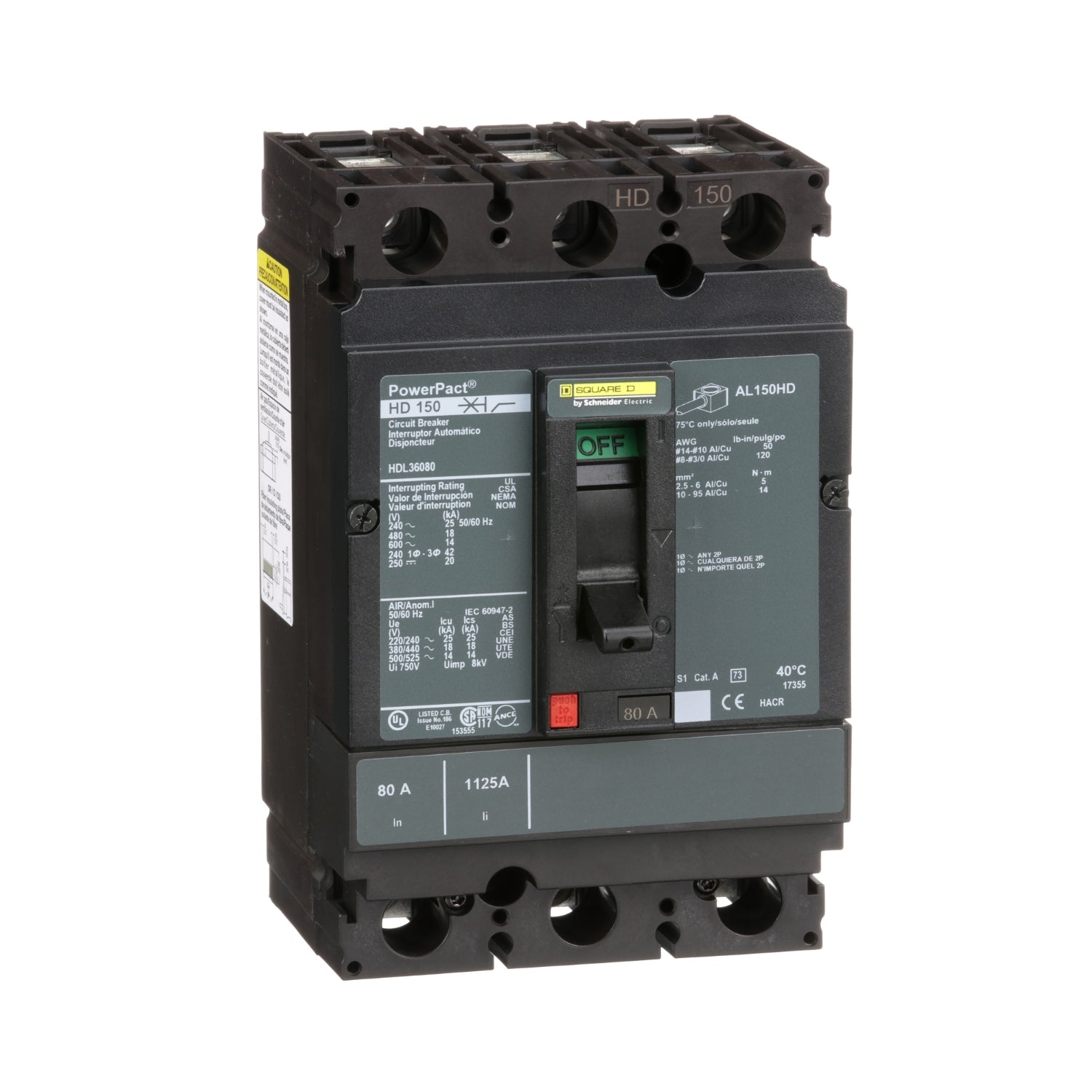

HDL36080 | Schneider Electric Circuit Breaker
- Regular price
- $557.00
- Sale price
- $557.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HDL36080
Description
The HDL36080 PowerPacT H-Frame circuit breaker is designed to safeguard electrical systems against overload and short circuit conditions. It features thermal magnetic circuit protection with a robust breaking capacity of 14kA at 600VAC. Equipped with dual-break rotating contacts, this breaker mitigates peak current during short circuit faults effectively.
Technical Specifications
|
Part # |
HDL36080 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
80 A |
|
Number of Poles |
3P |
|
Protected poles description |
3t |
|
Control Type |
Toggle |
|
Breaking capacity code |
D |
|
[Ue] rated operational voltage |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
1450 A |
|
Magnetic hold current |
800 A |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
|
Local signalling |
Switched off (OFF) 1 trip indicator green) |
|
Mounting mode |
Unit mount lug) |
|
Power wire stripping length |
0.63 in (16 mm) |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb(US) (2.2 kg) |
Information About HDL36080
The HDL36080 PowerPacT H-Frame circuit breaker is engineered to safeguard electrical systems against potential damage from overloads and short circuits. Available with either thermal magnetic or Micrologic electronic trip protection units, this breaker model specifically offers thermal magnetic circuit protection with a robust breaking capacity of 14kA at 600VAC.
Featuring dual-break rotating contacts, the PowerPacT H-Frame design efficiently reduces peak current during short circuit faults. An integral push-to-trip button integrated into the cover allows for manual tripping of the circuit breaker when necessary.
PowerPacT H circuit breakers are versatile, available in both 2 and 3-pole configurations for unit mount and I-Line constructions. Lugs are present on both the line and load sides, enhancing installation flexibility and ease.
This specific HDL36080 model is a 3-pole circuit breaker rated at 80A. Alongside its impressive breaking capacity, it maintains a continuous current rating of 80%, ensuring reliable performance under varying load conditions.
