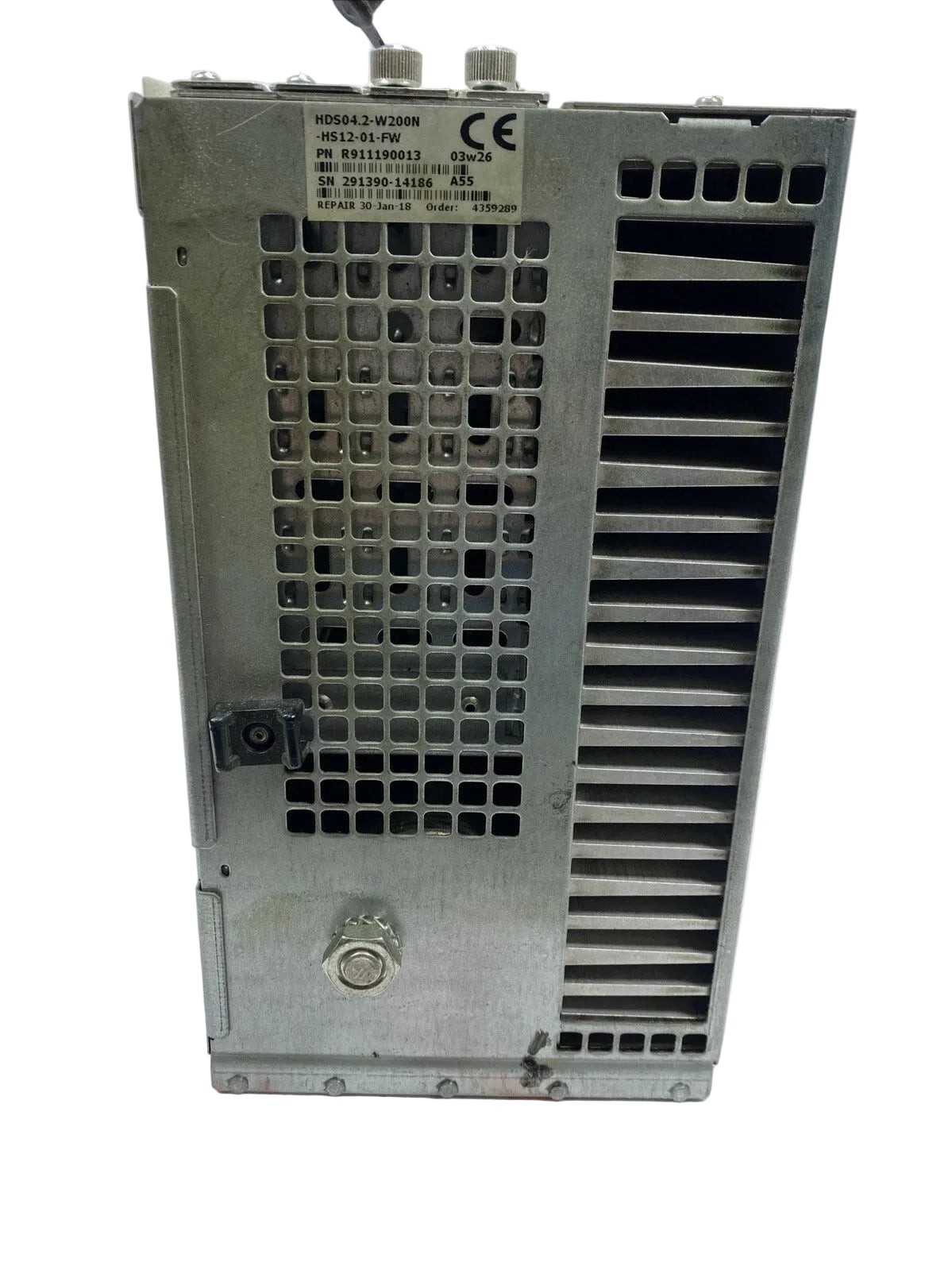

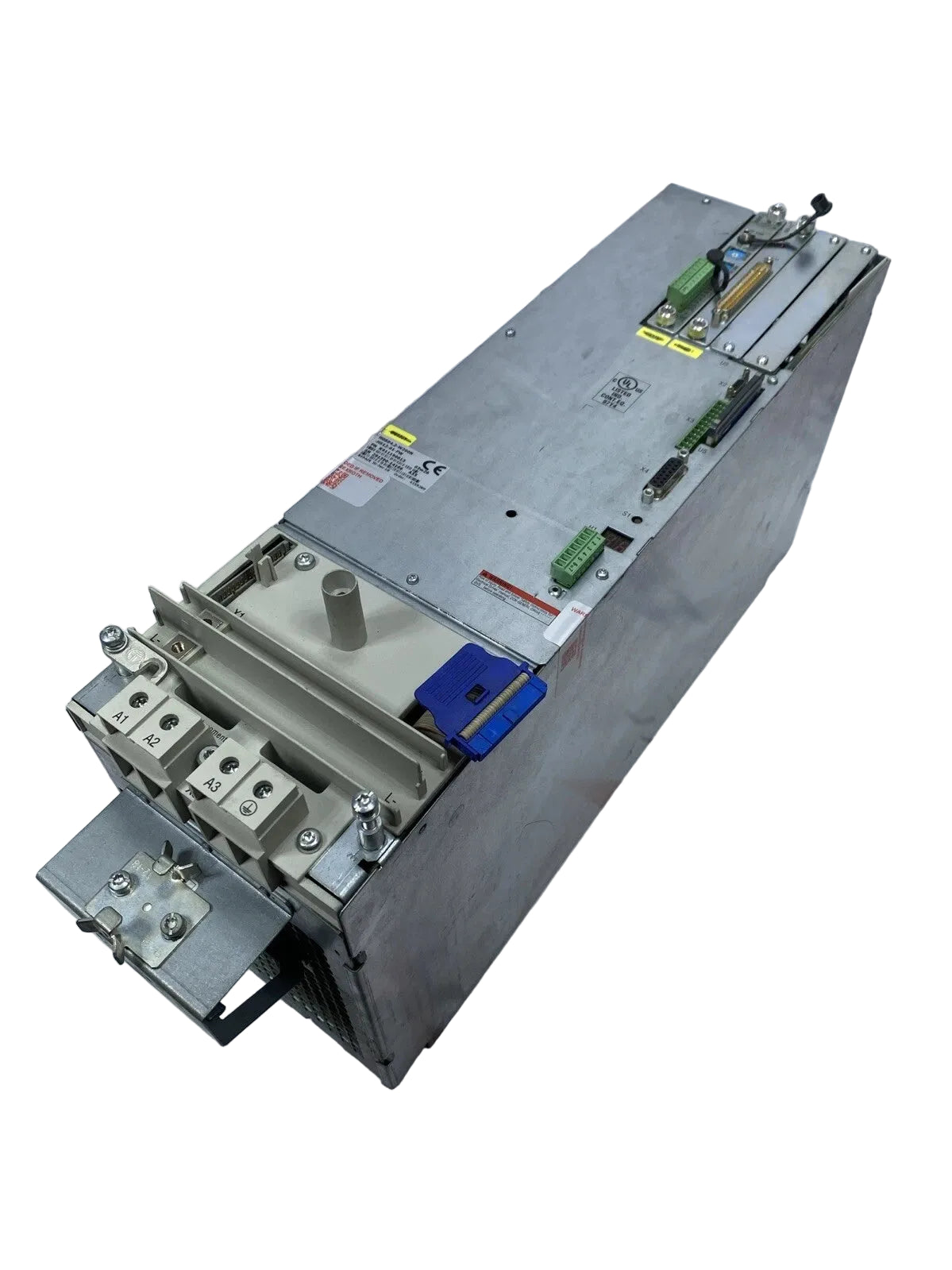

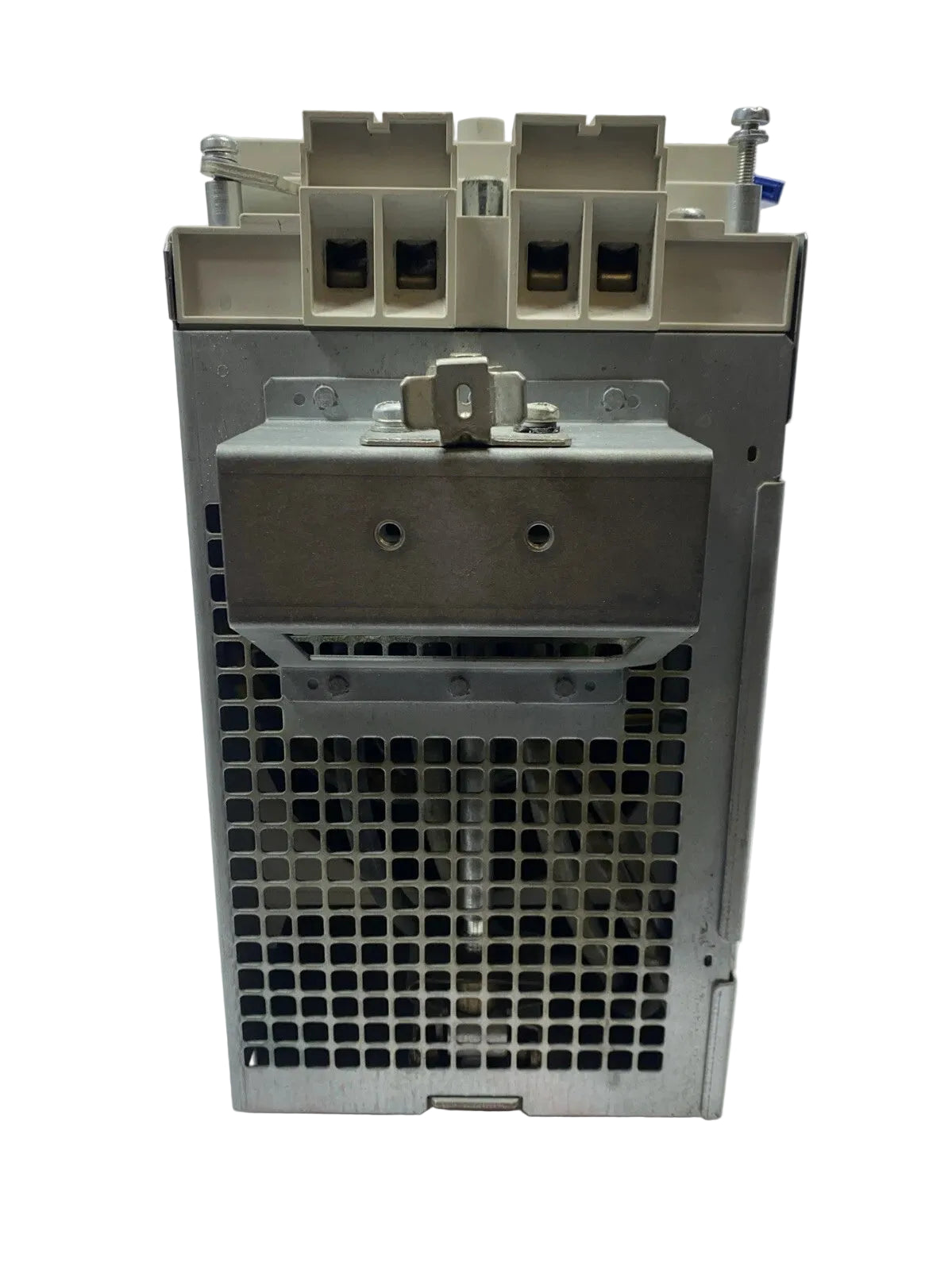

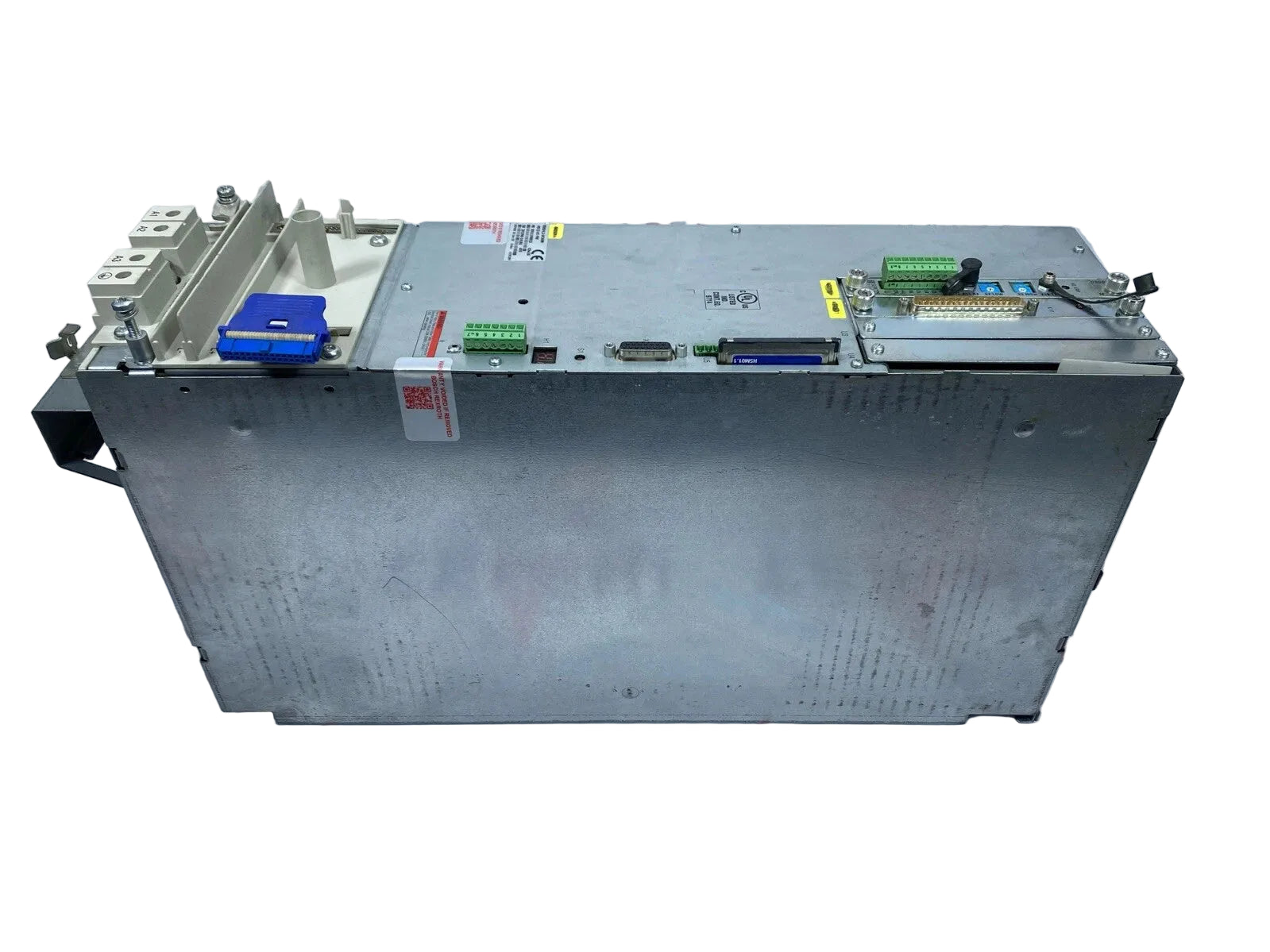

HDS04.2-W200N-HS12-01-FW | Bosch Rexroth DIAX04 HDS 200 A Servo Drive Controller
- Regular price
- $3,999.00
- Sale price
- $3,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HDS04.2-W200N-HS12-01-FW
Description
The Bosch Rexroth HDS04.2-W200N-HS12-01-FW is a high-performance HDS drive controller designed for precise control of servo motors in demanding industrial motion systems. Rated for up to 200 A, it supports SERCOS communication for real-time, deterministic control. This controller is engineered for integration within DIAX04-based drive architectures requiring reliable high-current operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch Rexroth |
| Category | Industrial Automation |
| Part Number | HDS04.2-W200N-HS12-01-FW |
| Subcategory | Drive Controllers |
| Product Type | HDS Drive Controller |
| Controller Family | DIAX04 |
| Series | HDS |
| Line | 04 |
| Version | 2 |
| Command Interface | SERCOS |
| Rated Current | 200 A |
| Continuous Current (4 kHz / 8 kHz) | 120 A / 80 A |
| DC Bus Input Voltage | 530–670 VDC |
| Output Voltage | 500 VAC |
| Cooling Method | Internal Air Blower |
| Power Loss at Continuous Current | 800 W |
| Insulation Classification | Class C |
| Protection Category | IP10 |
| Storage & Transport Temperature | -30 to +85°C |
| Weight | 40 lbs |
Information About HDS04.2-W200N-HS12-01-FW
The HDS04.2-W200N-HS12-01-FW is part of the Bosch Rexroth DIAX04 controller family, specifically within the HDS series designed for modular servo drive systems. It features an internal air blower for active cooling, allowing sustained operation under high electrical loads. The controller is intended for use in multi-axis motion control systems such as machine tools, robotics, and automated production equipment. Its design supports SERCOS interface communication, enabling synchronized motion control and fast data exchange within advanced automation environments.
Key Features:
- DIAX04 HDS Series Controller: Designed for integration within Bosch Rexroth DIAX04 modular servo systems.
- High Rated Current Capacity: Supports up to 200 A for demanding servo motor applications.
- SERCOS Communication Interface: Enables real-time, deterministic communication for precise motion control.
- Built-In Air Cooling: Equipped with an internal blower to manage thermal load during continuous operation.
- Continuous Current Performance: Delivers 120 A at 4 kHz and 80 A at 8 kHz switching frequencies.
- Industrial Insulation Class: Class C insulation supports high thermal and electrical endurance.
- Modular Firmware Handling: Firmware is ordered separately, allowing system-specific configuration.
The HDS04.2-W200N-HS12-01-FW delivers the reliability and precision required for high-current servo drive control in advanced industrial motion and automation systems.
