HE-X5EC | Horner Automation PLC Controller
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

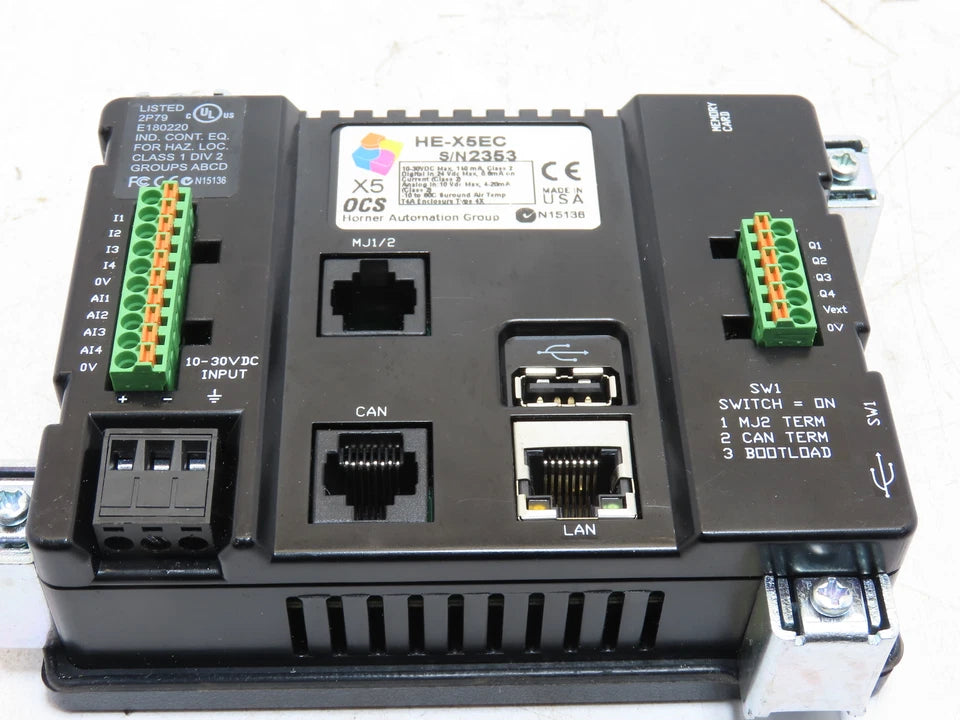

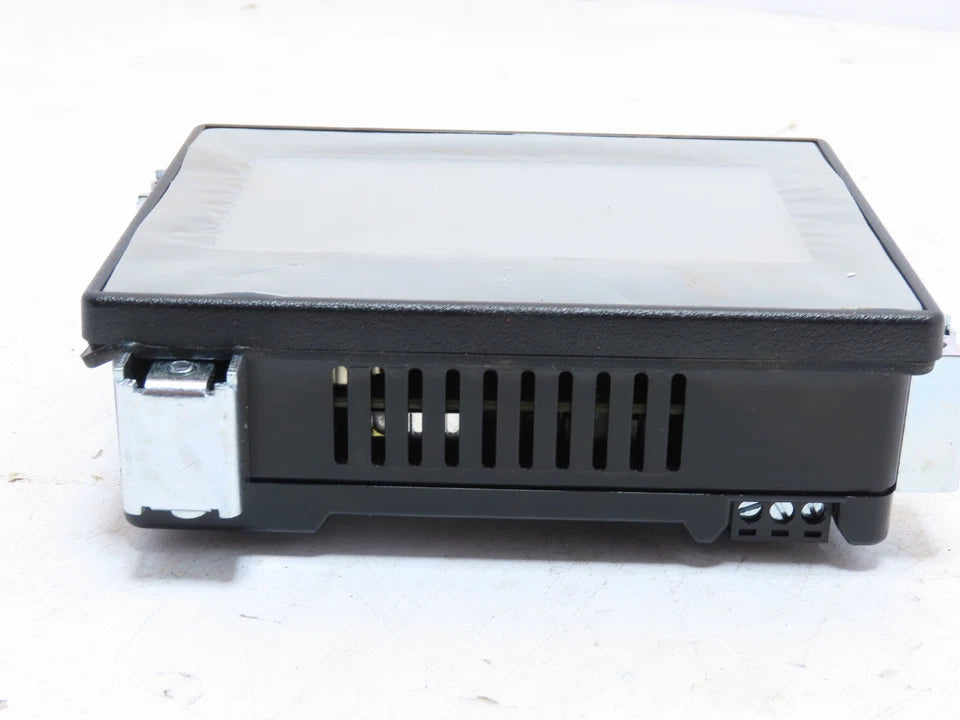

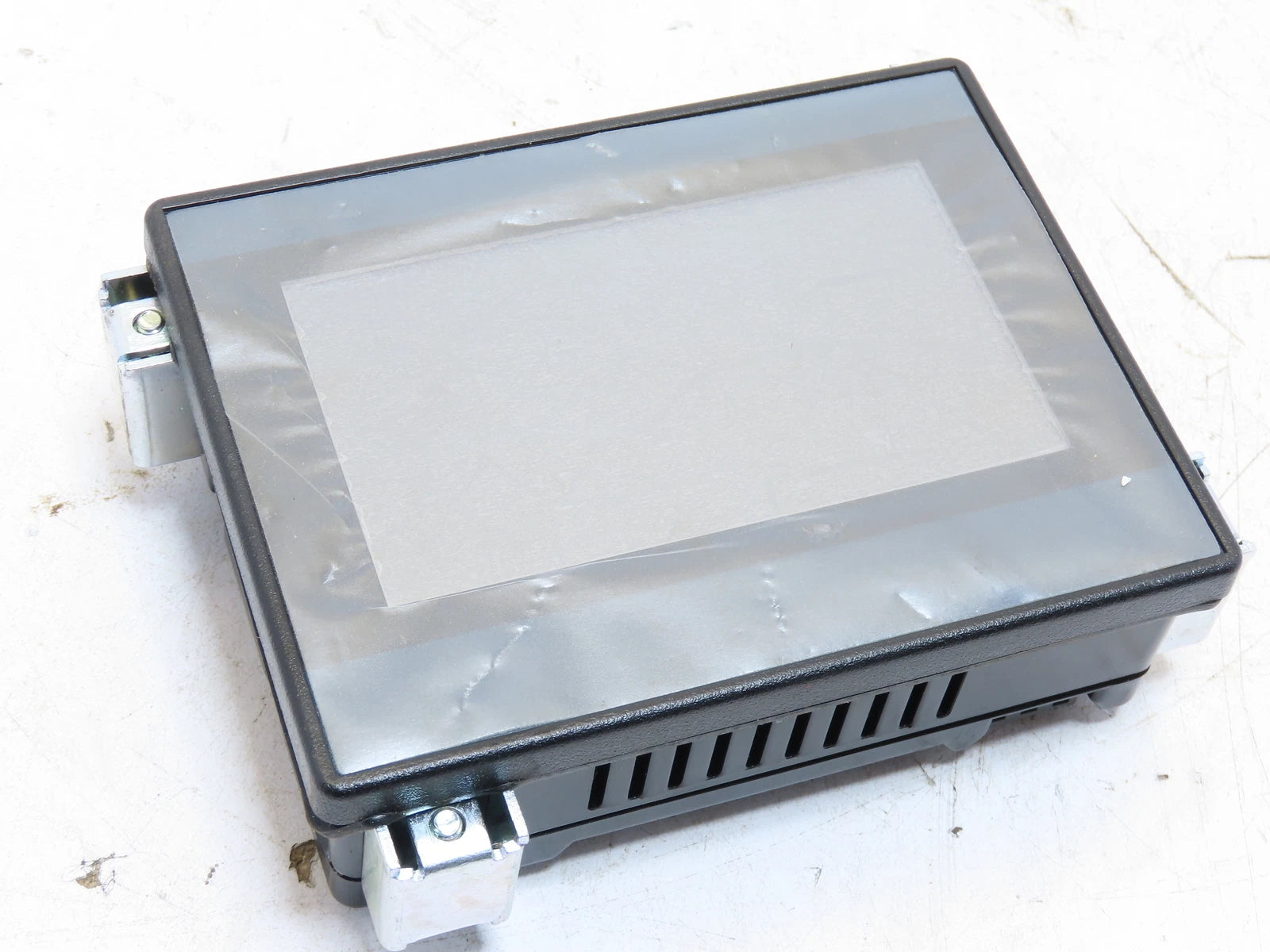

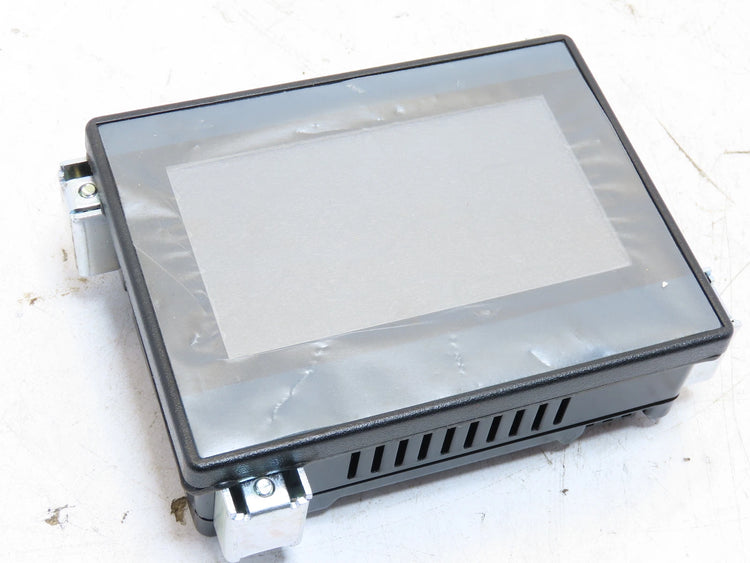

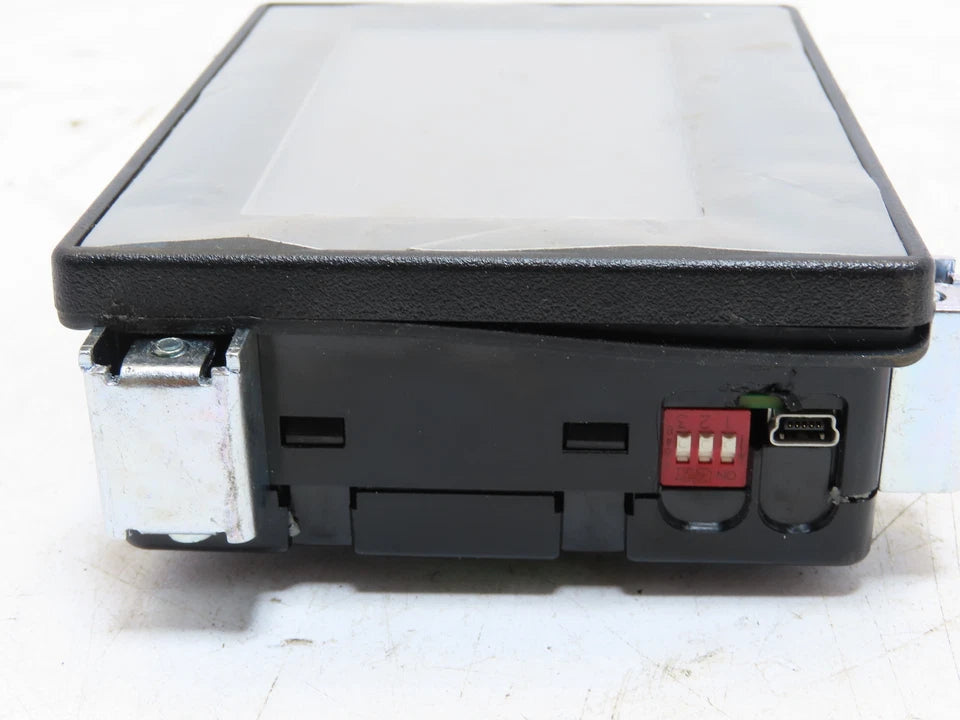

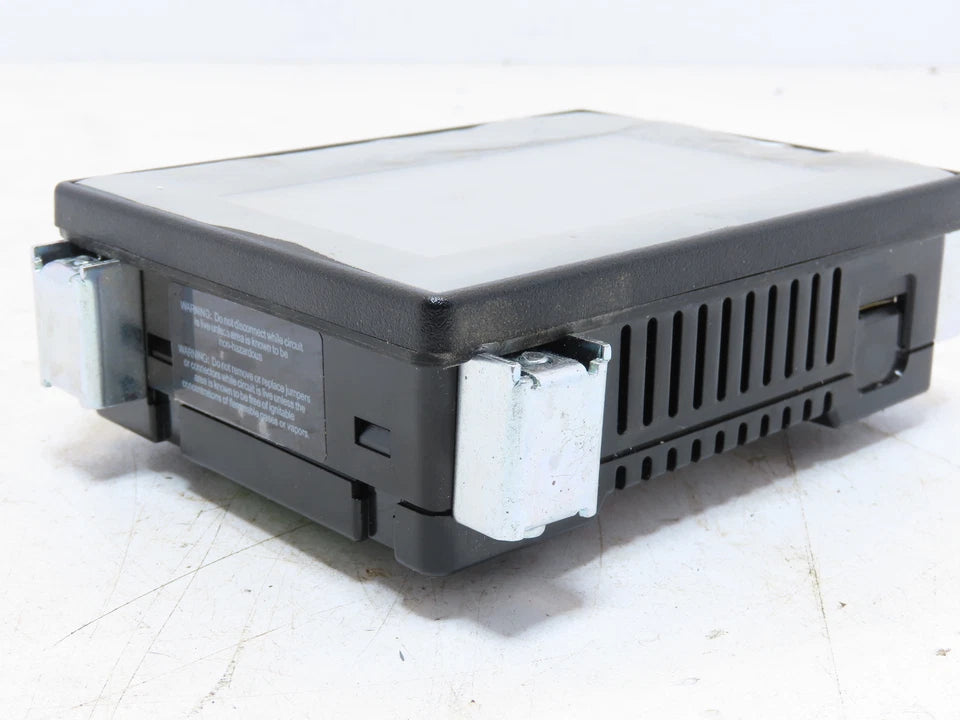

Product Description P/N: HE-X5EC
Description
The HE-X5EC is a compact all-in-one PLC controller designed for automation tasks requiring streamlined integration. With built-in I/O, networking, and an onboard HMI, it serves as a powerful control solution for small to mid-sized industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Horner Automation |
| Category |
PLCs / Machine Control
|
| Part Number | HE-X5EC |
| Subcategory | PLC Controllers |
| Display Size | 4.3" TFT Color Touchscreen |
| Processor | ARM9 400 MHz |
| Memory | 256 MB Application Flash |
| Operating Voltage | 10–30 VDC |
| Digital Inputs | 12 (sink/source) |
| Digital Outputs | 6 (relay) |
| Analog Inputs | 4 (0–10V or 4–20mA selectable) |
| Ethernet Ports | 2 x 10/100 Mbps |
| Communication Protocols | Modbus TCP/IP, CsCAN |
| USB Ports | 1 host, 1 mini-B device |
| Programming Software | Cscape |
| Operating Temperature | -10°C to 60°C |
| Mounting Type | Panel Mount |
| Dimensions (LxWxH) | 6 x 5 x 2 in |
| Weight | 0.91 lbs (approx. 413 g) |
Information About HE-X5EC
The HE-X5EC is part of Horner Automation’s XL Series controllers, engineered to provide control, communication, and visualization in one unit. It supports both digital and analog I/O, Modbus communication, and Ethernet connectivity. Designed for machine builders and process automation engineers, the HE-X5EC eliminates the need for separate components. Its embedded color touchscreen HMI allows for direct interface with users in space-constrained installations.
Key Features:
- Integrated I/O System: Offers a combination of digital and analog inputs/outputs for full system control.
- Built-in HMI: 4.3" color touchscreen for real-time process visualization and interaction.
- Networking Capability: Features dual Ethernet ports and Modbus TCP/IP support for seamless device communication.
- Compact Form Factor: Small housing suitable for panel-mounted applications with limited space.
- Programming Environment: Fully programmable via Horner’s Cscape software using IEC 61131 languages.
- Wide Power Supply Range: Operates from a 10–30V DC input, suitable for various industrial power standards.
- Rugged Design: Fanless operation and high electromagnetic compatibility for harsh environments.
- Flexible Expansion: Supports remote I/O through CsCAN and SmartMod modules.
The HE-X5EC delivers the reliability and precision required for integrated machine control and monitoring.
