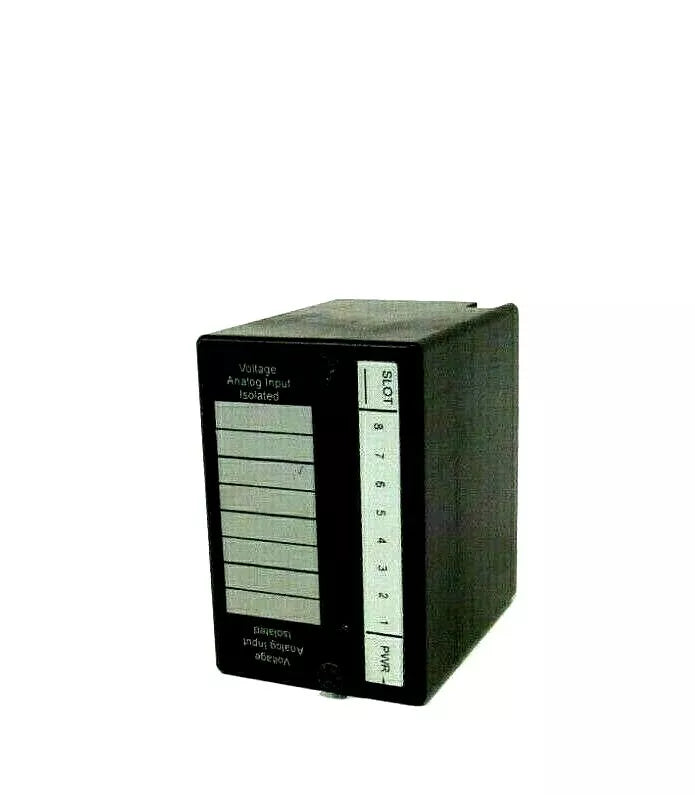

HE670ADC830C | GE Fanuc Field Control Analog Input Module
- Regular price
- $1,397.00
- Sale price
- $1,397.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HE670ADC830C
Description
The GE Fanuc HE670ADC830C Field Control Analog Input Module is a high-precision, 8-channel input module designed for GE Fanuc Field Control systems. It provides 12-bit resolution (11 bits + sign) and supports a voltage input range of 0 to +10VDC or -10 to +10VDC.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category |
PLCs and Accessories
|
| Part Number | HE670ADC830C |
| Subcategory | PLC Expansion Modules |
|
Power Consumption |
130mA from backplane |
| Number of Channels | 8 |
| Range | 0 to +10VDC -10 to +10VDC Selectable by the BIU |
| Channel –to– Channel Isolation | 400VDC |
| Channel –to– Backplane Isolatio |
1000VDC |
| Input Impedance | 1 Mohm |
| Resolution (0 to +10) (-10 to +10) | 12-bits 11-bits + sign |
| Output Format | Set by BIU, Normally 10V = 10000 counts |
| Maximum error at 25°C | +/- 0.1% Full Scale |
| Operating Temperature | 0 to 75°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Input Power | 24VDC +/-10% |
Information About HE670ADC830C
The HE670ADC830C Analog Input Module is engineered to convert voltage input signals into digital values, making them accessible through communication with the Bus Interface Unit (BIU). It operates with a standard Field Control I/O case, providing compatibility with multiple I/O bases for flexible installation. The module features a 1MΩ input impedance and a maximum error of ±0.1% full scale at 25°C, ensuring high accuracy in data acquisition systems.
Key Features:
- 8 analog input channels with selectable voltage ranges (0 to +10VDC, -10 to +10VDC).
- 12-bit resolution (11 bits + sign) for accurate signal conversion.
- Channel-to-channel isolation: 400VDC for noise immunity and safety.
- Channel-to-ground isolation: 1000VDC for enhanced system protection.
- Input impedance: 1MΩ, ensuring minimal signal interference.
- High precision: ±0.1% full-scale accuracy at 25°C.
- Output format: Set by BIU, normally 10V = 10,000 counts.
- Operating temperature range: 0 to 75°C for industrial applications.
- Relative humidity tolerance: 5% to 95%, non-condensing.
- Power consumption: 130mA from backplane, 24VDC ±10% input power.
With high accuracy, robust isolation, and flexible configuration, the GE Fanuc HE670ADC830C is an ideal choice for industrial process control, data acquisition, and automation applications.
