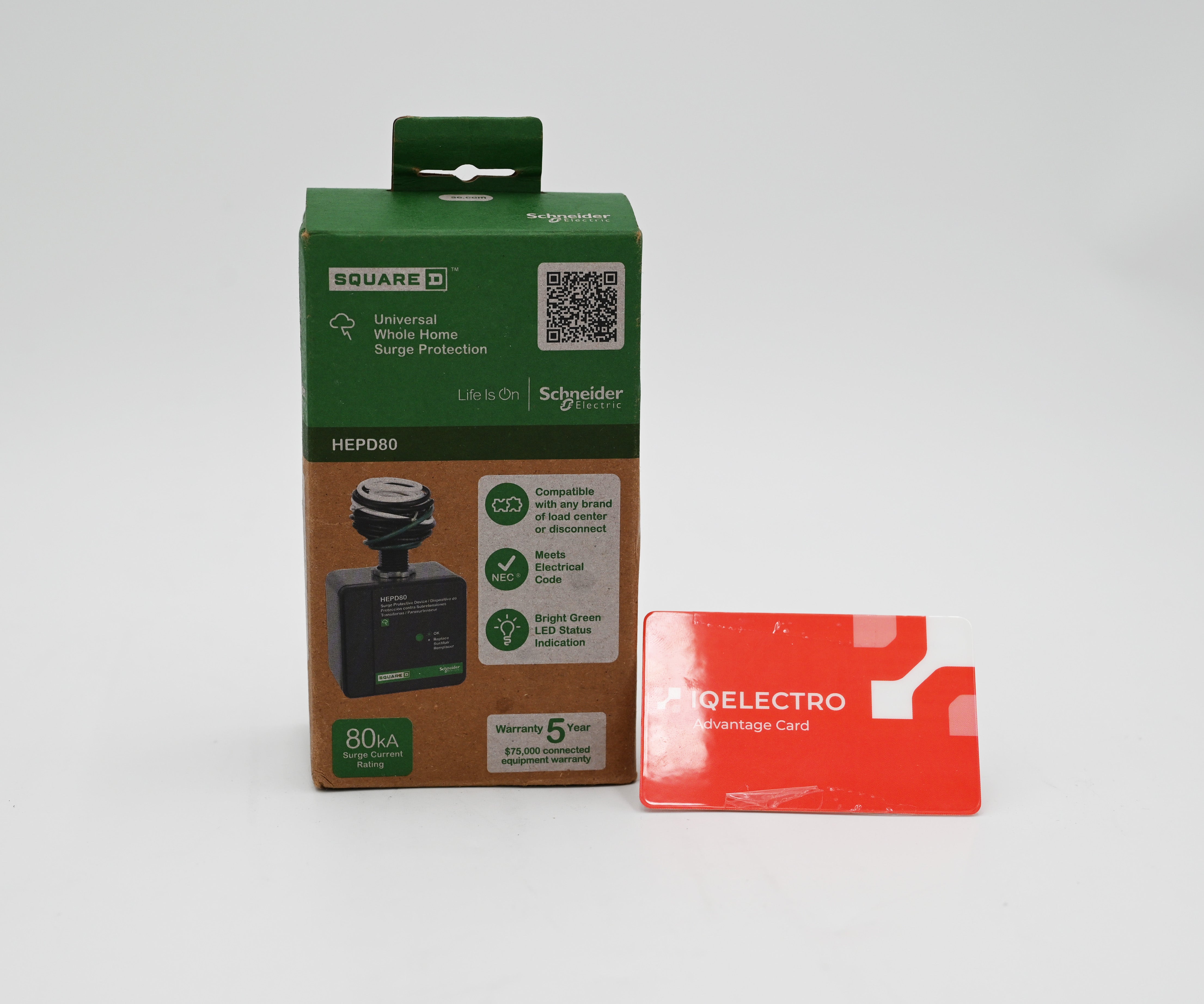

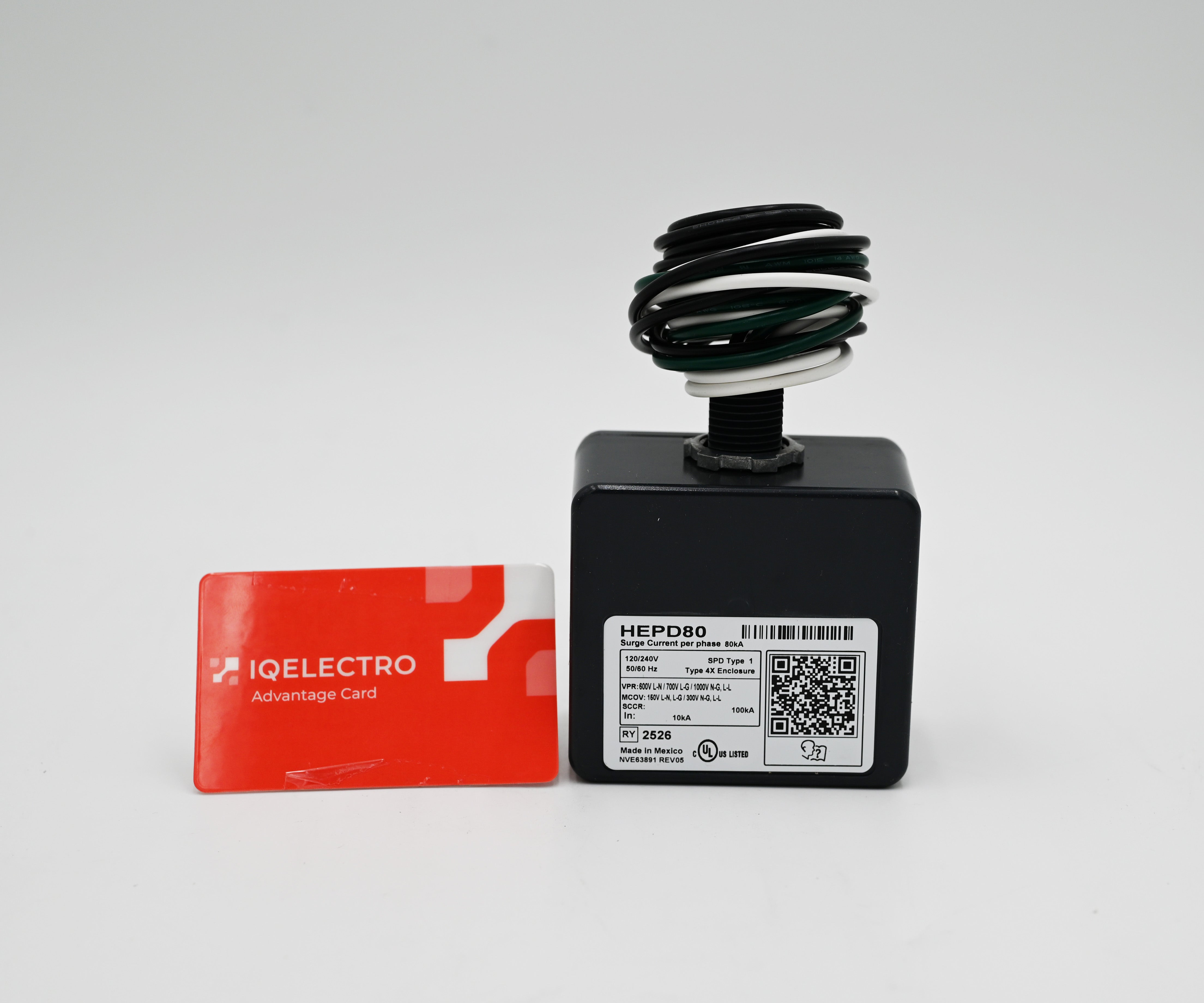

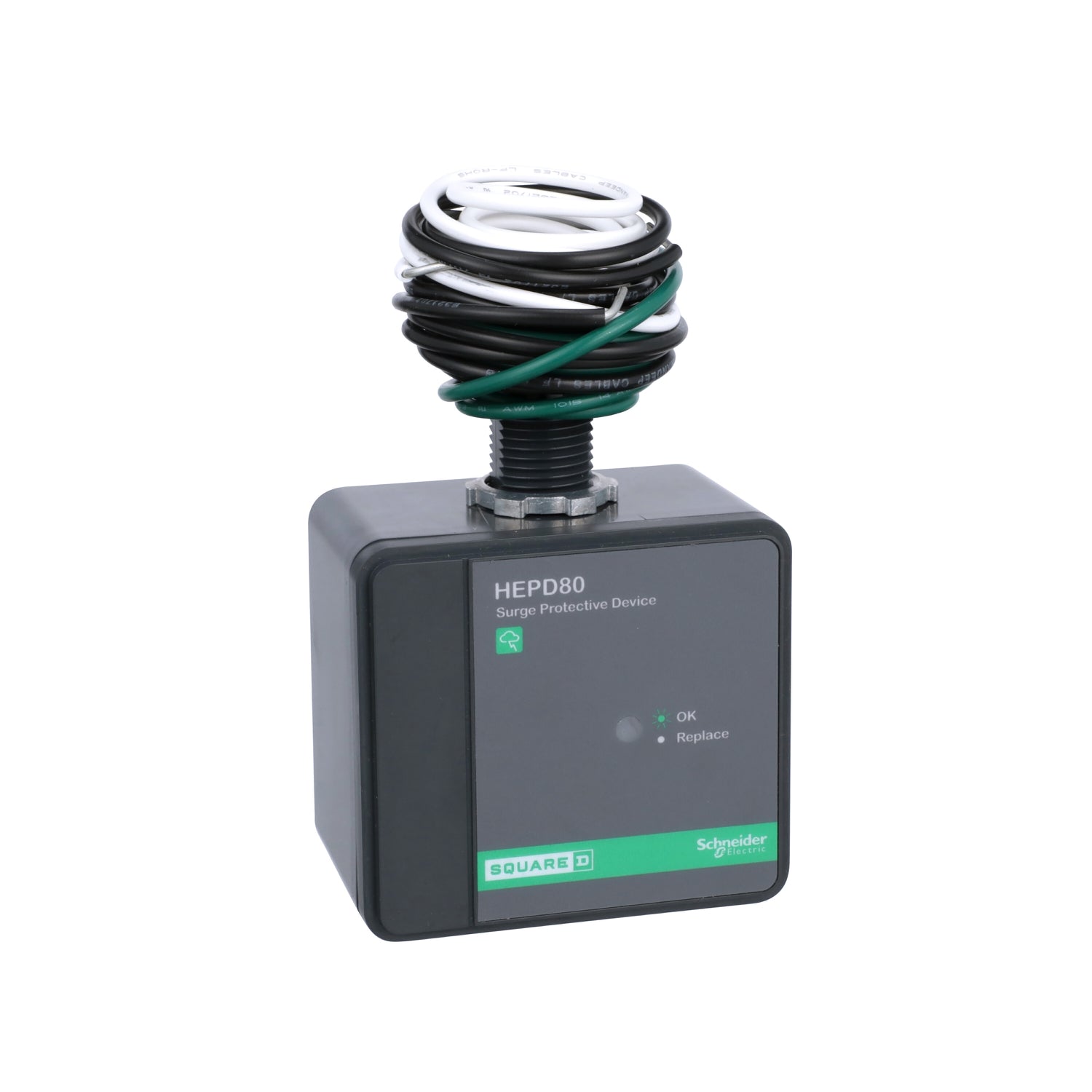

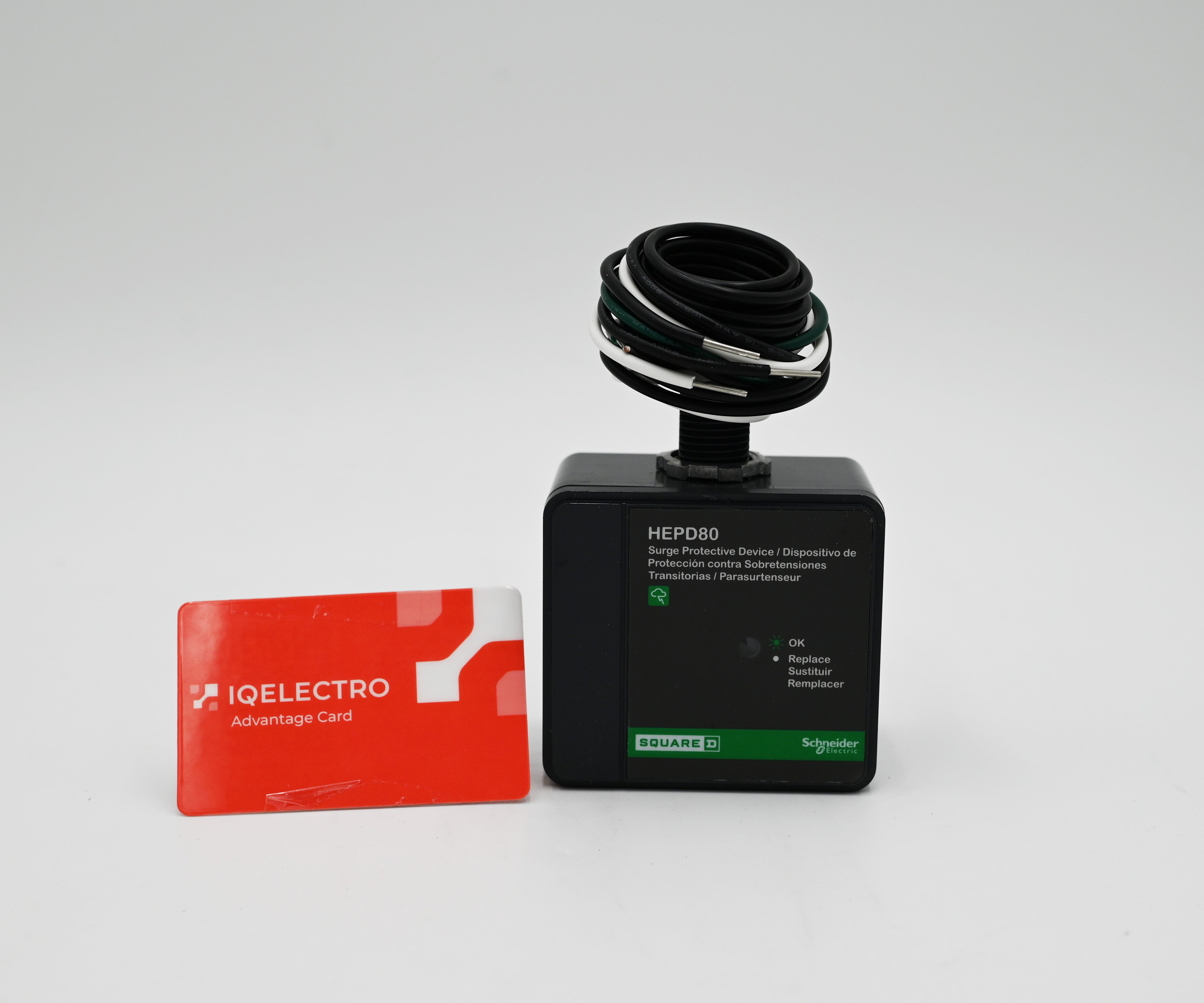

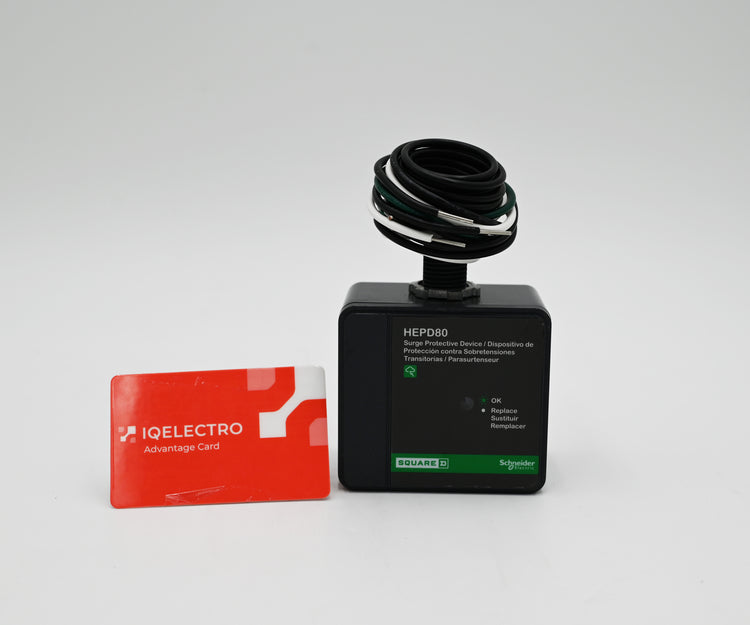

HEPD80 | Schneider Electric HEPD Series 80kA Whole House Surge Protection Device
- Regular price
- $107.00
- Sale price
- $107.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HEPD80
Description
The Schneider Electric HEPD80 is a residential surge protection device designed to protect entire AC power systems from transient voltage events. It provides high-capacity surge suppression for single-phase 120/240 V systems and installs directly at the load center.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Schneider Electric |
| Category | Controls & Indicators |
| Part Number | HEPD80 |
| Subcategory | Power Controller Voltage Rating |
| Series / Family | HEPD Series |
| Device Type | Surge Protection Device (SPD) |
| Voltage Rating | 120/240 V AC |
| MCOV | 150 V |
| Surge Current Capacity | 80 kA per phase |
| Nominal Discharge Current | 10 kA |
| Rated Current | 10 kA |
| Short-Circuit Current Rating (SCCR) | 25 kA |
| Number of Phases | 1 Phase |
| Wiring Configuration | 3-Wire (Isolated Ground) |
| Connection Wire Size | AWG 14 |
| Local Status Indication | Green LED (Normal / Off) |
| Installation Location | Load Center |
| Cable Length | 34 in (863.60 mm) |
| Height | 3.23 in (82.04 mm) |
| Width | 3.72 in (94.49 mm) |
| Depth | 2.10 in (53.34 mm) |
| Operating Temperature Range | -40 to 149 °F (-40 to 65 °C) |
| Enclosure Rating | NEMA 4X |
| Enclosure Material | Non-Metallic |
Information About HEPD80
The HEPD80 is a whole-house surge protection device from the Schneider Electric HEPD series developed for residential electrical systems. It is engineered to protect all connected branch circuits and hardwired equipment from transient voltage surges entering through the AC service. The device is designed for single-phase, three-wire 120/240 VAC systems with an isolated ground and integrates directly into the load center. Its compact non-metallic enclosure and environmental sealing support long-term installation in demanding residential environments.
Key Features
- 80 kA surge protection capacity: Provides high-level suppression of transient voltage surges on each phase.
- Whole-house AC system protection: Shields internal wiring, appliances, and electronics beyond point-of-use surge strips.
- Single-phase 120/240 V compatibility: Designed for standard residential electrical service configurations.
- 25 kA SCCR rating: Ensures coordination with upstream overcurrent protection devices.
- NEMA 4X enclosure: Offers resistance to moisture, dust, and corrosion for indoor or protected outdoor use.
- LED status indicators: Provide clear visual confirmation of operational and protection status.
- Compact load-center mounting: Allows efficient installation without significant space requirements.
The HEPD80 delivers the reliability and precision required for comprehensive surge protection in residential electrical distribution systems.
