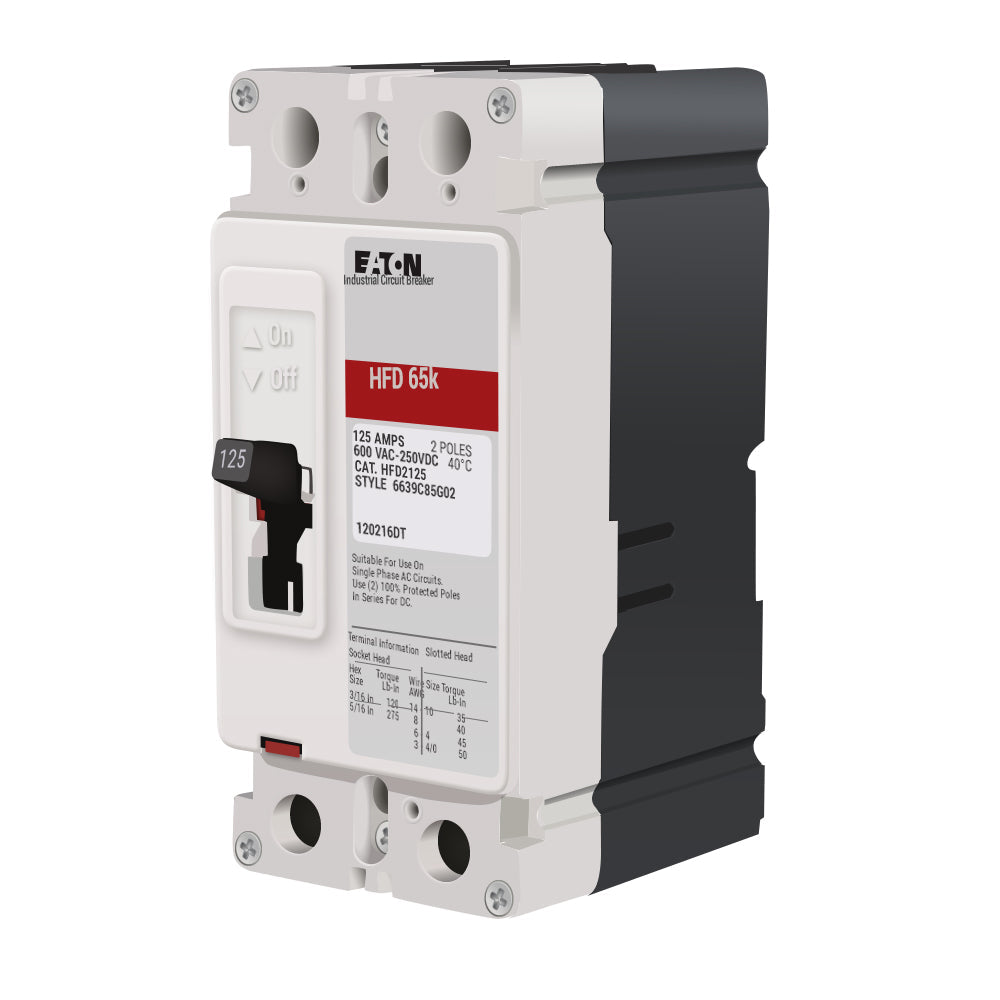

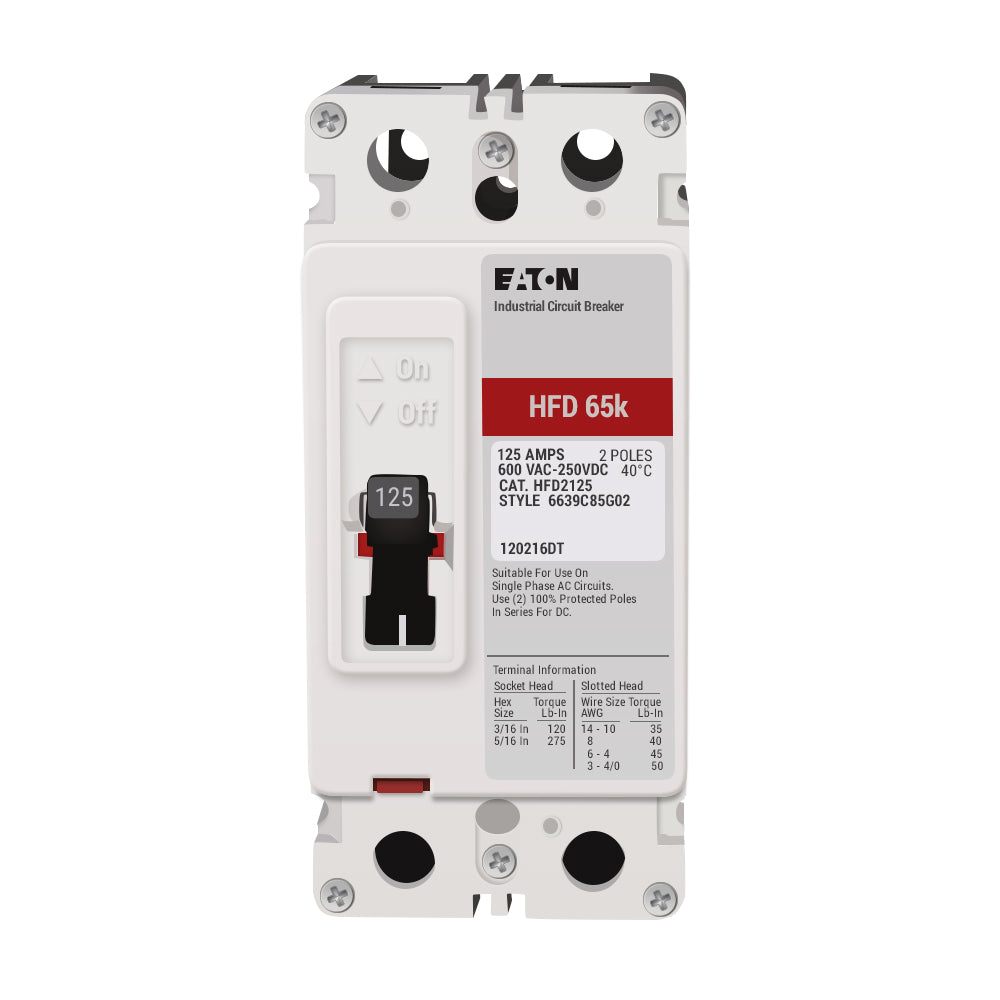

HFD2125 | Eaton 125A 2-Pole Series C F-Frame High-Interrupt Molded Case Circuit Breaker
- Regular price
- $1,125.00
- Sale price
- $1,125.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HFD2125
Description
The Eaton HFD2125 is a two-pole molded case circuit breaker designed to deliver dependable thermal-magnetic protection for single-phase electrical systems. This breaker supports up to 125 A at 600 VAC or 250 VDC, offering high interrupting capacity for demanding commercial and industrial installations. With its F-frame construction and bolt-on configuration, the HFD2125 provides robust performance and secure mounting in distribution equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | HFD2125 |
| Subcategory | Molded Case Circuit Breakers |
| Series | Series C |
| Frame Type | F-Frame |
| Circuit Breaker Type | HFD |
| Amperage Rating | 125 A |
| Voltage Rating | 600 VAC / 250 VDC |
| Interrupt Rating | 100 kA @ 240 VAC; 65 kA @ 480 VAC; 25 kA @ 600 VAC; 22 kA @ 250 VDC |
| Trip Type | Fixed Thermal / Fixed Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Number of Poles | 2 |
| Phase | Single-Phase |
| Mounting Type | Bolt-On |
| Line Termination | Busbar (No Lugs) |
| Load Termination | Lugs |
| Frequency | 50/60 Hz |
| Dimensions (H × W × D) | 3.25 in × 5 in × 7.5 in |
| Certifications | UL Listed, CSA Certified, IEC Rated |
| Country of Origin | Dominican Republic |
| Weight | 2.93 lb |
Information About HFD2125
The HFD2125 is part of Eaton’s Series C family, built with an F-frame molded case that supports high interrupting ratings across a wide voltage range. It incorporates an HFD-type fixed thermal and magnetic trip unit that provides long-time and instantaneous protection for overload and fault events. Designed for compatibility with panelboards, MCCs, and other single-phase systems, the breaker features bolt-on mounting and standard load-side lugs for reliable field installation. Certified to UL, CSA, and IEC standards, it is engineered for use in industrial power distribution where consistent, high-capacity circuit protection is required.
Key Features:
- 125 A Rating: Provides high-capacity protection for demanding single-phase loads.
- Two-Pole Configuration: Supports 600 VAC and 250 VDC circuits in industrial and commercial systems.
- High Interrupt Capability: Rated 100 kA at 240 VAC and 65 kA at 480 VAC for fault-clearing performance.
- Thermal-Magnetic Trip: Fixed long-time and instantaneous functions ensure accurate overload and short-circuit response.
- F-Frame Molded Case: Durable housing designed for heavy-duty electrical environments.
- Bolt-On Connection: Secures the breaker directly to bus structures for stable mounting.
- Standard Lug Terminals: Load-side lugs simplify wiring while maintaining strong electrical contact.
- UL, CSA, IEC Certifications: Meets major global electrical protection and performance standards.
The HFD2125 delivers the reliability and precision required for high-capacity molded case circuit protection.
