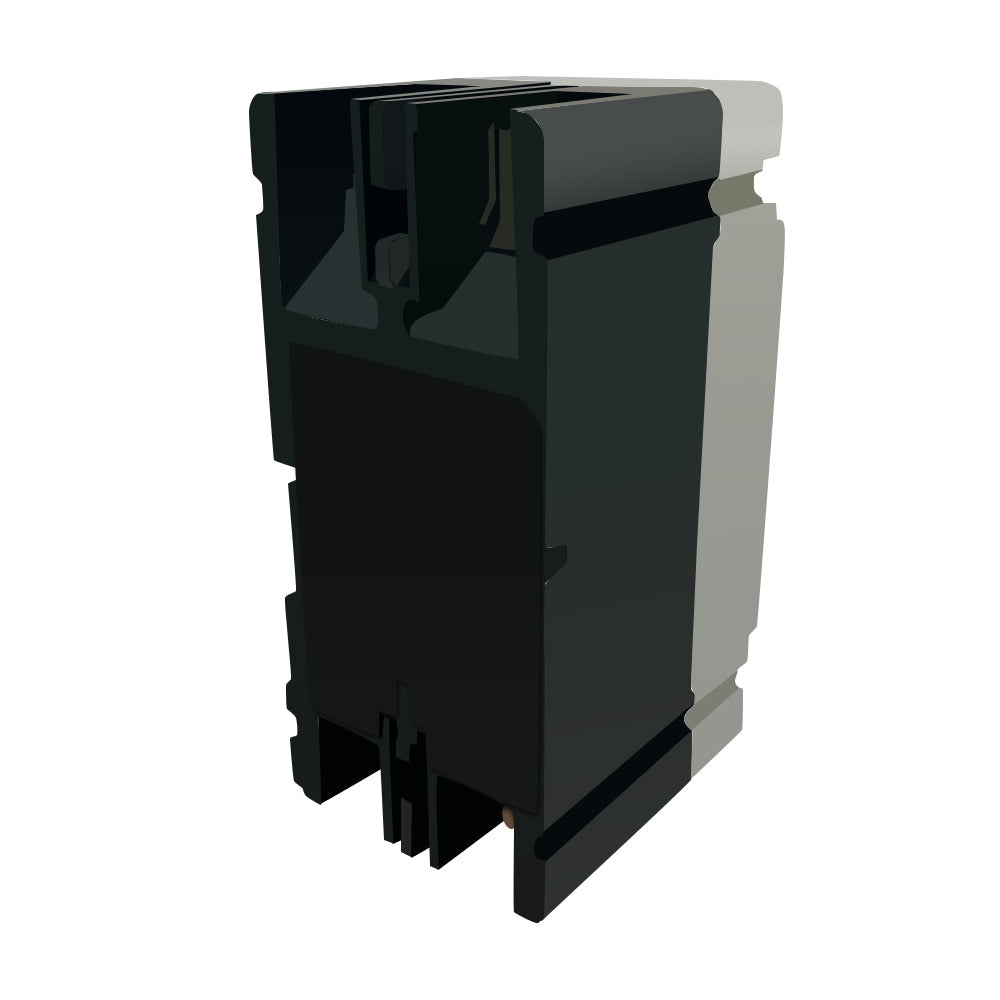

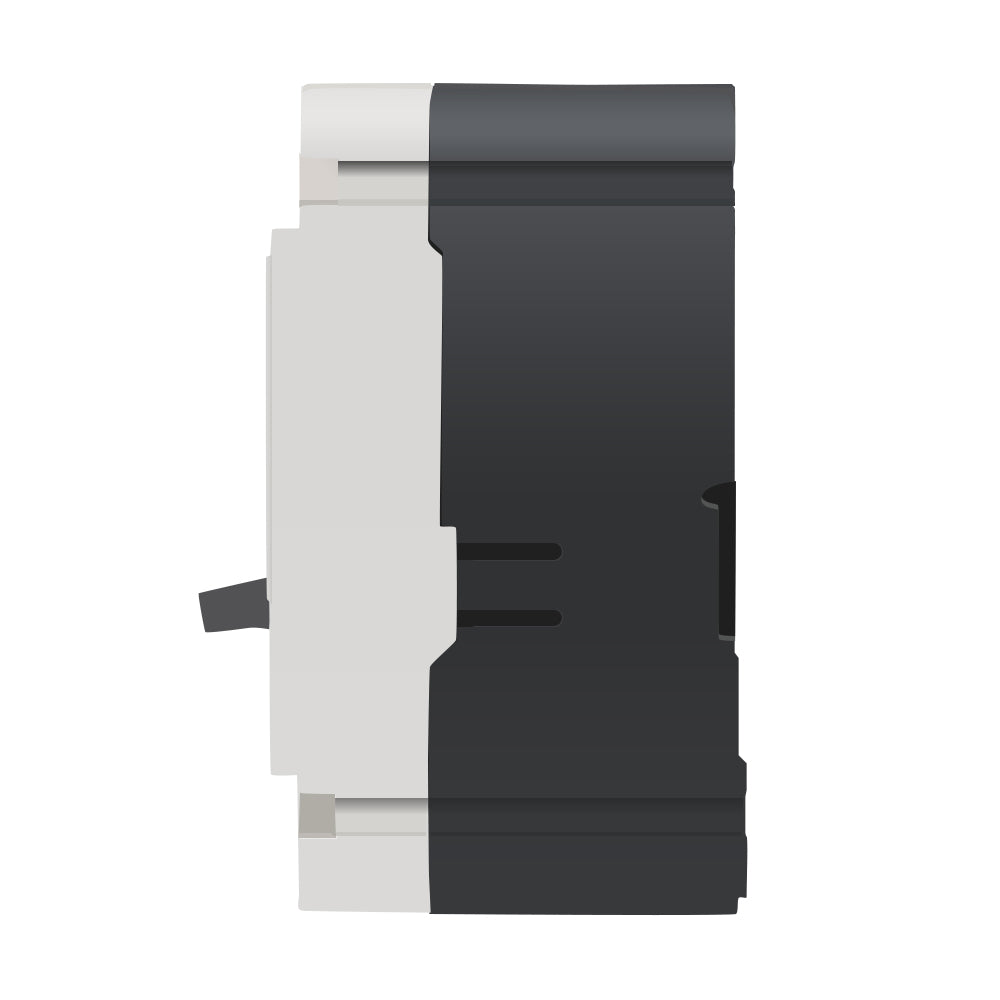

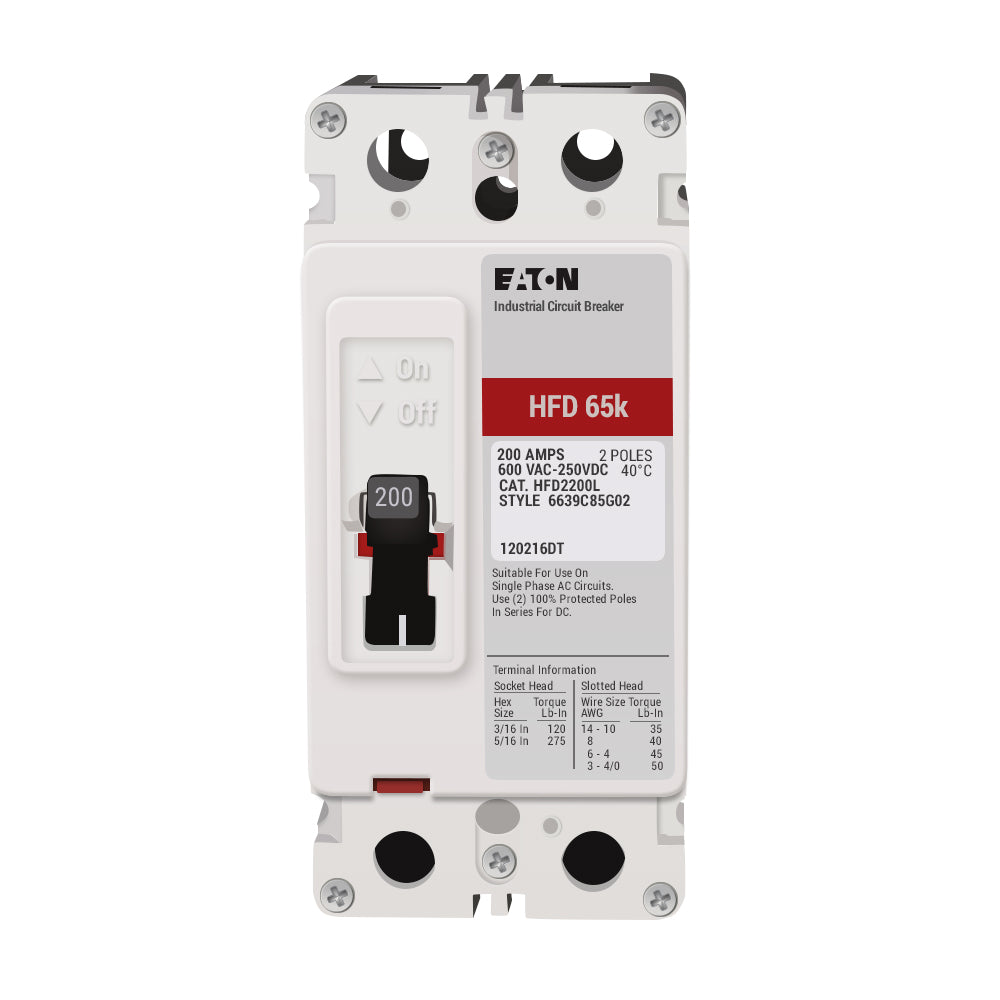

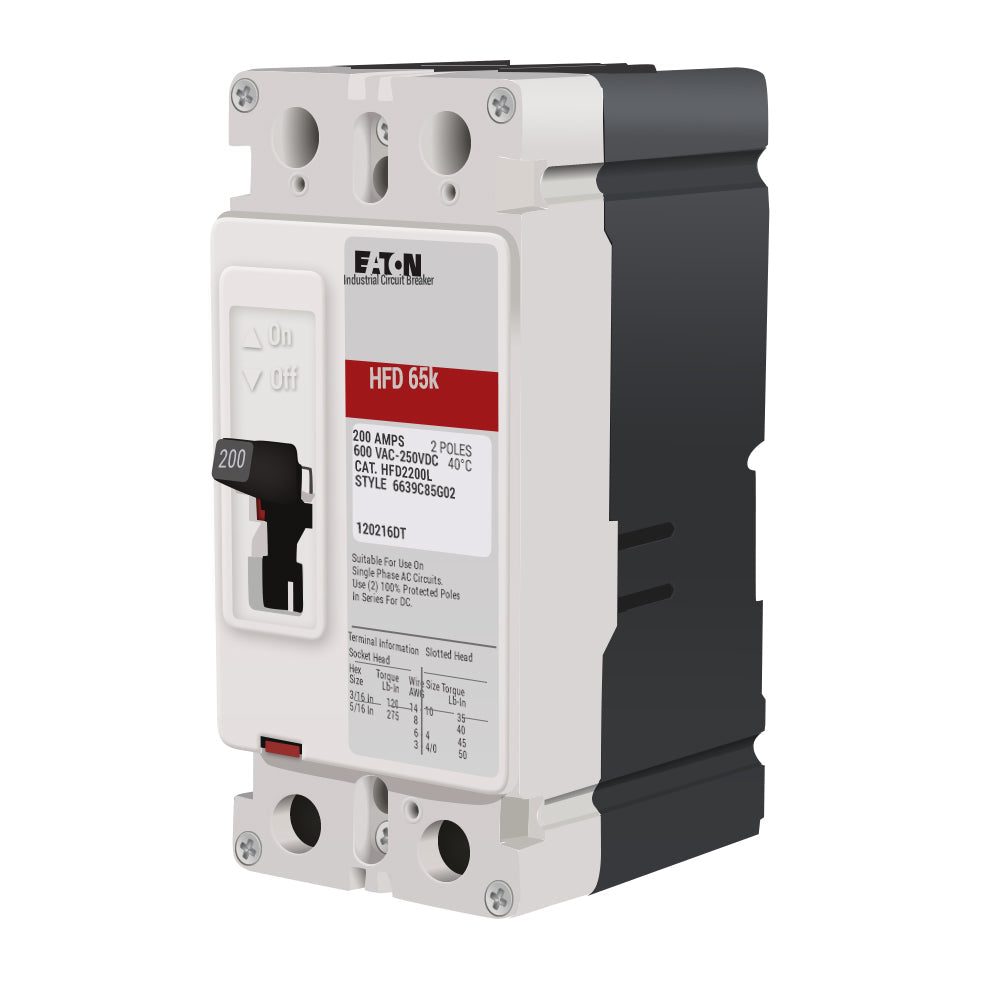

HFD2200L | Eaton 200A 2-Pole 600V Series C F-Frame Molded Case Circuit Breaker
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HFD2200L
Description
The Eaton HFD2200L is a 2-pole molded case circuit breaker rated for 200 amps and up to 600 VAC / 250 VDC. It provides reliable protection against overloads and short circuits with a high interrupting capacity of 65 kA at 480 VAC. Designed for feed-thru installation, this breaker combines thermal magnetic protection with robust Series C construction, making it ideal for commercial and industrial power distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breakers |
| Part Number | HFD2200L |
| Subcategory | Molded Case Circuit Breakers |
| Series | Series C |
| Frame Type | F-Frame |
| Number of Poles | 2 |
| Amperage Rating | 200 A |
| Voltage Rating | 600 VAC / 250 VDC |
| Interrupting Rating | 65 kA @ 480 VAC, 100 kA @ 240 VAC, 25 kA @ 600 VAC |
| Trip Type | Thermal Magnetic |
| Trip Function | Long-Time and Instantaneous (LI) |
| Connection Type | Feed-Thru with Line and Load Lugs |
| Mounting Type | Bolt-On |
| Frequency Rating | 50/60 Hz |
| Phase | Single Phase |
| Certifications | UL Listed, CSA Approved |
| Operating Temperature | 40°C standard |
| Application | Power distribution and circuit protection |
| Dimensions (HxWxD) | 6" x 2.75" x 3.38" |
| Weight | 4.5 lbs (2.04 kg) |
Information About HFD2200L
The HFD2200L is part of the Eaton Series C molded case circuit breaker family, known for its durability, compact design, and proven protection technology. It features an F-frame configuration with line and load lugs, allowing easy feed-thru connections in power panels or control assemblies. The breaker incorporates long-time and instantaneous (LI) trip functions to ensure accurate fault detection and system safety. Built for performance under demanding conditions, the HFD2200L meets UL and CSA standards, ensuring dependable service in a wide range of electrical environments.
Key Features:
- Amperage Rating: 200A continuous current capacity for mid-range load applications.
- Voltage Rating: Rated for operation at 600 VAC and 250 VDC for versatile use.
- Interrupting Capacity: Withstands up to 65 kA at 480 VAC for high fault protection.
- Trip Function: Thermal magnetic design with long-time and instantaneous trip response.
- Connection Type: Feed-thru lugs on both line and load sides for secure installation.
- Frame Type: F-frame construction for mechanical strength and compatibility with Series C systems.
- Certifications: UL listed and CSA approved for verified safety and performance compliance.
- Construction: Compact molded case design ensures durability and efficient heat dissipation.
The HFD2200L delivers the reliability and precision required for safe power distribution and overload protection in demanding electrical systems.
