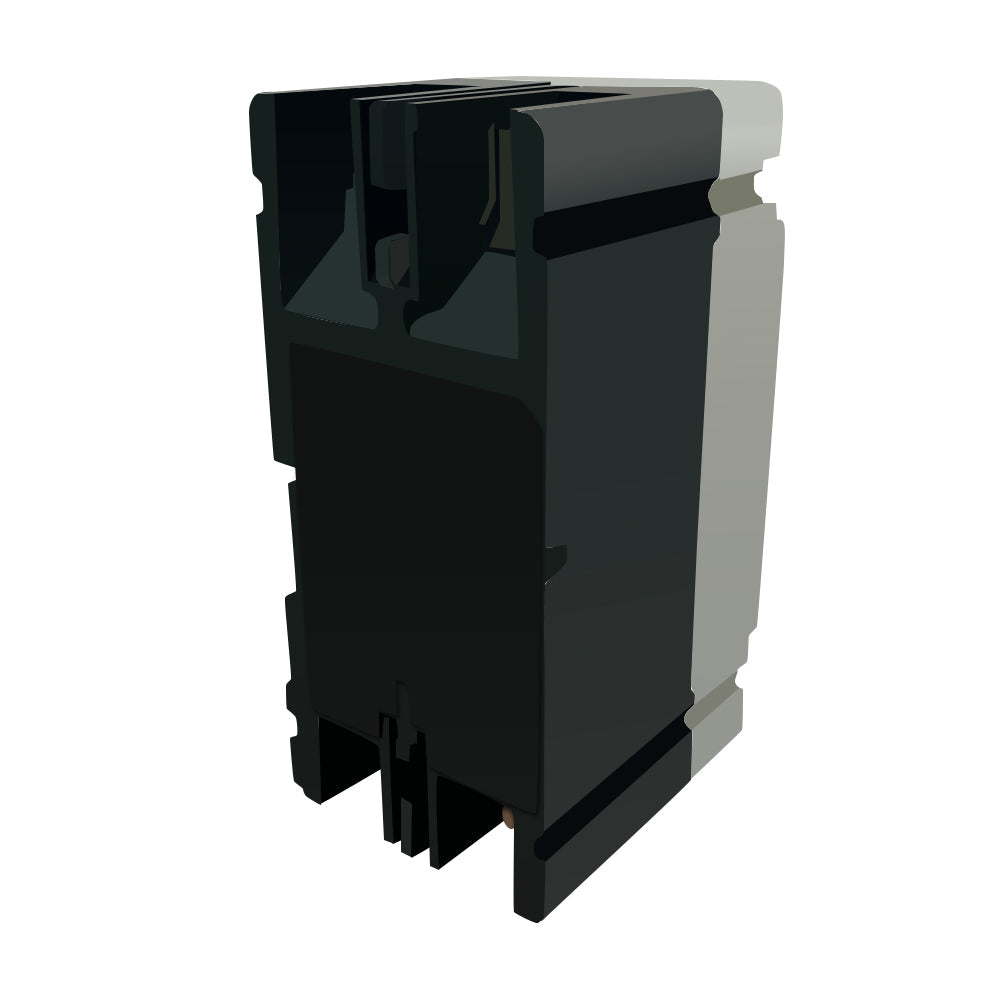

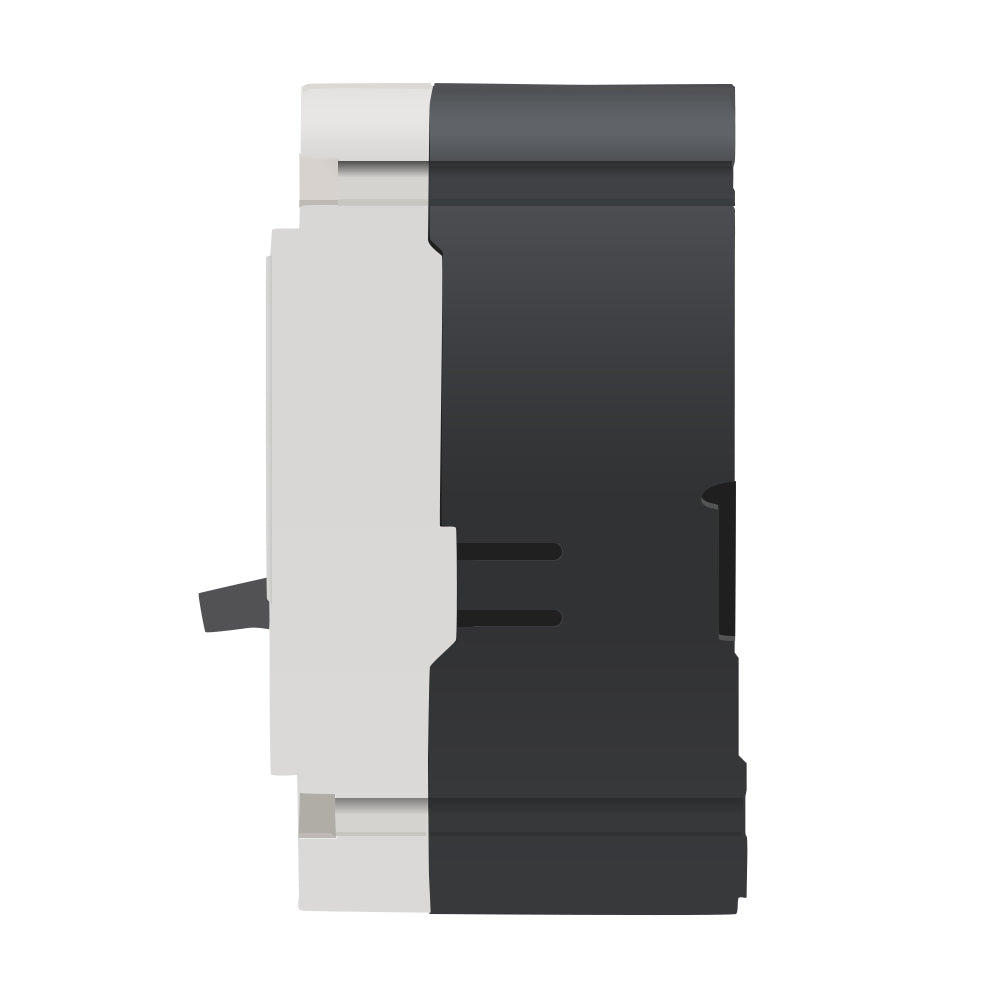

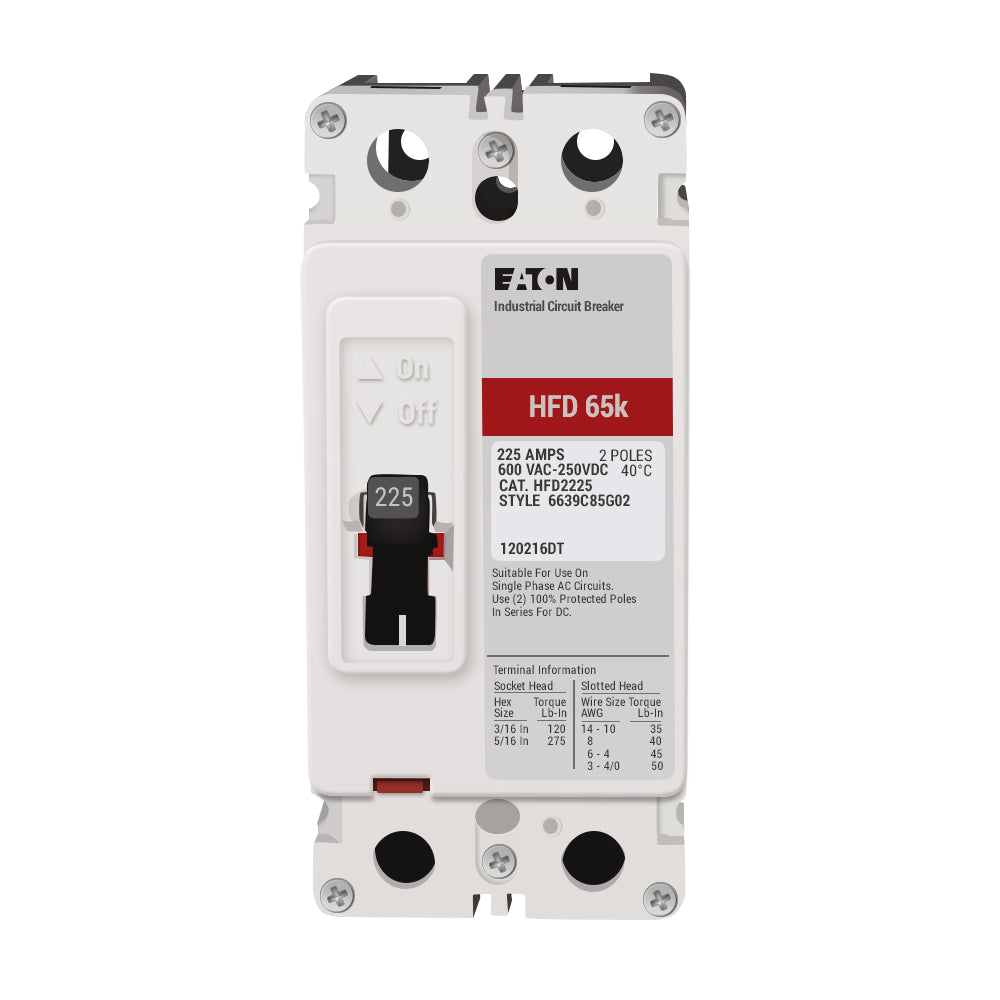

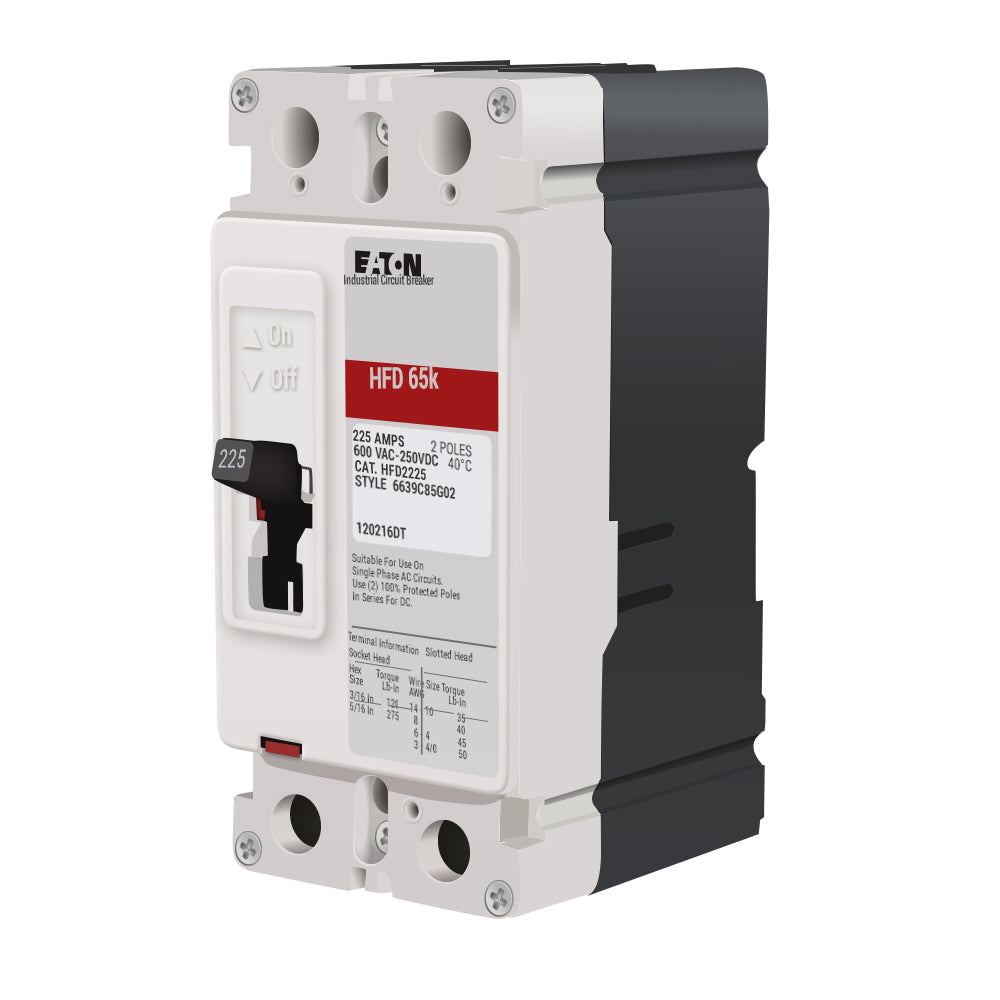

HFD2225 | Eaton 225A 2-Pole 600V Series C F-Frame Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HFD2225
Description
The Eaton HFD2225 is a 2-pole molded case circuit breaker designed for dependable protection of electrical systems in industrial and commercial environments. Rated at 225 amps and 600 VAC, it uses a thermal magnetic trip mechanism to safeguard circuits from overloads and short circuits. With an interrupting capacity of up to 65 kA at 480 V, this breaker ensures robust performance in demanding power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breakers |
| Part Number | HFD2225 |
| Subcategory | Molded Case Circuit Breakers |
| Series | Series C |
| Frame Type | F Frame |
| Amperage Rating | 225 A |
| Voltage Rating | 600 VAC / 250 VDC |
| Interrupting Rating | 65 kA @ 480 VAC, 100 kA @ 240 VAC, 25 kA @ 600 VAC |
| Trip Type | Thermal Magnetic |
| Functions | Long-Time and Instantaneous Trip |
| Number of Poles | 2 |
| Mounting Type | Bolt-On / Panel Mount |
| Connection Type | Busbar Line Side / Lug Load Side |
| Phase | Single Phase |
| Frequency Rating | 50/60 Hz |
| Certifications | UL Listed, CSA Approved, CE Compliant |
| Operating Temperature | 40°C |
| Dimensions (HxWxD) | 2.75 in x 2.75 in x 3.38 in |
| Weight | 4.5 lb |
Information About HFD2225
The HFD2225 is part of Eaton’s Series C F-Frame molded case circuit breaker line, known for its high reliability, compact design, and broad system compatibility. It features bolt-on mounting and load-side lug terminals, making installation straightforward in panel-mounted configurations. The breaker combines long-time and instantaneous trip functions, offering precise thermal magnetic protection across a range of circuit conditions. Fully UL Listed and CSA certified, the HFD2225 provides a durable and cost-effective solution for industrial and commercial power systems up to 600 VAC or 250 VDC.
Key Features:
- Amperage Rating: 225A continuous current capacity for mid-range electrical circuits.
- Voltage Rating: Supports 600 VAC and 250 VDC operation for flexible installation.
- Interrupting Capacity: Rated at 65 kA @ 480 VAC and 100 kA @ 240 VAC for high fault tolerance.
- Trip Unit: Thermal magnetic trip design for long-time and instantaneous protection.
- Mounting Type: Bolt-on panel mount ensures stable and secure installation.
- Frame Type: F-Frame molded case provides compact size and high durability.
- Certifications: UL Listed, CSA Approved, and CE compliant for global use.
- Applications: Ideal for industrial panels, switchboards, and power distribution equipment.
The HFD2225 delivers the reliability and precision required for safe, efficient, and long-term electrical circuit protection in demanding commercial and industrial systems.
