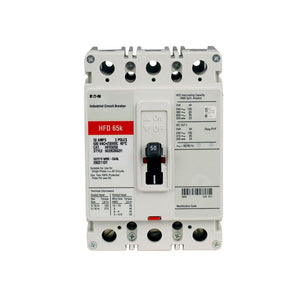

HFD3060 | Eaton Cutler-Hammer Series C F-Frame Molded Case Circuit Breaker 60A 3-Pole 600V
- Regular price
- $645.00
- Sale price
- $645.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HFD3060
Description
The Eaton Cutler-Hammer HFD3060 is a Series C molded case circuit breaker designed for reliable protection of three-phase electrical systems. This F-frame breaker is rated at 60 A and operates at up to 600 VAC with fixed thermal and fixed magnetic trip functions. The HFD3060 supports dependable long-time and instantaneous protection for industrial power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton Cutler-Hammer |
| Category | Molded Case Circuit Breaker |
| Part Number | HFD3060 |
| Subcategory | Molded Case / 3-Pole |
| Series / Family | Series C |
| Frame Type | F-Frame |
| Breaker Type | HFD |
| Number of Poles | 3 |
| Amperage Rating | 60 A |
| Voltage Rating | 600 VAC |
| Phase | 3 |
| Trip Unit Type | Fixed Thermal / Fixed Magnetic |
| Protection Functions | LI – Long-Time and Instantaneous |
| Protection Technology | Thermal-Magnetic |
| Interrupt Rating | 65 kA at 480 V |
| Connection Type | Feed Thru |
| Frequency Rating | 50/60 Hz |
Information About HFD3060
The HFD3060 is part of Eaton’s Series C family and is built using an F-frame molded case construction for consistent performance in industrial environments. It incorporates fixed thermal and magnetic trip elements that respond to both sustained overloads and instantaneous short-circuit conditions. The breaker is configured as a three-pole device, making it suitable for three-phase distribution and motor protection systems. Its design supports straightforward integration into electrical assemblies where predictable tripping characteristics are required.
Key Features:
- Series C F-Frame Construction: Provides durable molded case design for industrial power systems.
- Fixed Thermal-Magnetic Trip Unit: Delivers stable and repeatable overload and short-circuit protection.
- 60 Amp Current Rating: Supports medium-duty three-phase circuit protection requirements.
- Three-Pole Configuration: Enables protection and control of three-phase electrical circuits.
- LI Protection Functions: Combines long-time overload and instantaneous fault response.
- 65 kA Interrupt Capacity: Supports high fault current interruption at rated voltages.
The HFD3060 delivers the reliability and precision required for three-phase circuit protection in Eaton Series C industrial power distribution systems.
