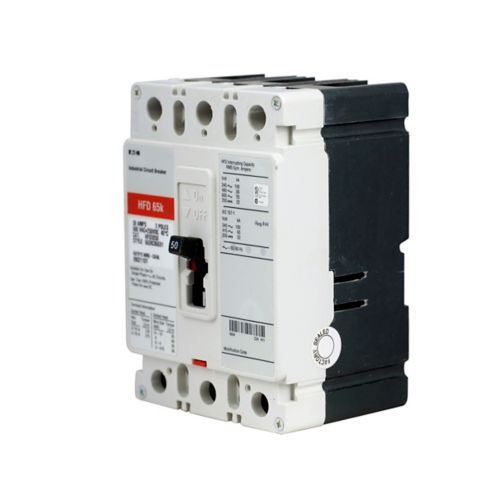

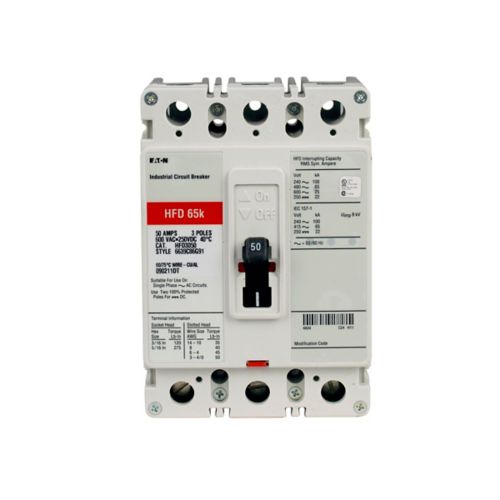

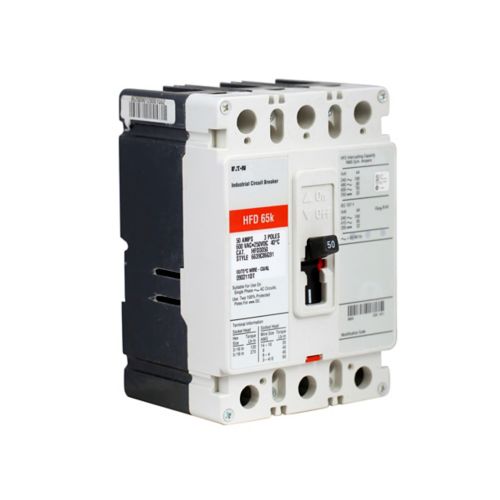

HFD3125BP10 | Eaton Series C Molded Case Circuit Breaker
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HFD3125BP10
Description
The Eaton HFD3125BP10 is a molded case circuit breaker from the Series C line, designed for industrial and commercial applications requiring reliable overcurrent protection.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Circuit Breaker
|
| Part Number | HFD3125BP10 |
| Subcategory | Molded Case Circuit Breaker |
| Series | Series C |
| Amperage | 125 Amp |
| Circuit Breaker Type | HFD |
| Frame | F |
| Interrupt Rating | 65 kAIC |
| Terminal Type | Load Side |
| Current | 125 Amp |
| Frequency | 50 Hz |
| Number of Poles | 3 Pole |
| Trip Type | Fixed Magnetic,Fixed Thermal |
| Voltage | 250 Volt |
| Interrupt Rating | 65 kAIC at 480 Vac 100 kAIC at 240 Vac |
| Length/Depth | 3.38 in |
| Height | 4.13 in |
| Width | 4.13 in |
| Weight |
4.5 lbs
|
Information About HFD3125BP10
The HFD3125BP10 is a molded case circuit breaker developed by Eaton as part of its Series C product line, built for demanding industrial and commercial electrical systems. Rated for 125A and supporting voltage ratings up to 600V AC and 250V DC, it features a fixed thermal-magnetic trip unit that ensures dependable overcurrent protection. This 3-pole F-frame breaker delivers high interrupting capacity and compact form factor for ease of integration into power distribution panels. It is UL Listed and engineered for high-performance environments where safety and reliability are essential.
Key Features:
- 125 Amp Rating: Supports medium-capacity loads in commercial and industrial systems.
- Voltage Versatility: Compatible with systems up to 600V AC and 250V DC.
- Interrupting Capacity: Rated for 100 kAIC at 240V AC and 65 kAIC at 480V AC for high fault current protection.
- Trip Unit Type: Fixed thermal-magnetic trip unit offers reliable protection without calibration.
- Pole Configuration: 3-pole setup supports three-phase installations common in industrial settings.
- Frame Design: Compact F-frame for space-efficient panel or cabinet mounting.
- UL Listed: Compliant with North American electrical safety standards.
- Application Range: Ideal for branch circuit protection, motor control centers, and general-purpose circuit interruption.
The HFD3125BP10 delivers robust overcurrent protection in a space-saving design, making it a trusted choice for engineers and facility managers in mission-critical power distribution environments.
