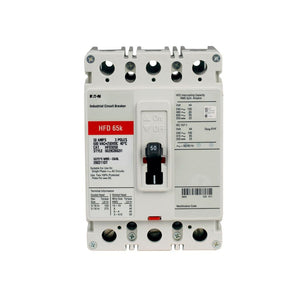

HFD3150 | Eaton Series C Complete Molded Case Circuit Breaker
- Regular price
- $1,784.00
- Sale price
- $1,784.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HFD3150
Description
The HFD3150 is an Eaton Series C complete molded case circuit breaker. It is classified as an F-frame, HFD type. This circuit breaker features a fixed thermal and fixed magnetic trip type. It is a three-pole breaker with a 150 A current rating. The voltage ratings are 600 Vac and 250 Vdc. It is designed for load side installation and operates at a frequency of 50/60 Hz.
Technical Specifications
|
PRODUCT NAME |
Eaton Series C complete molded case circuit breaker |
|
CATALOG NUMBER |
HFD3150 |
|
UPC |
786679175910 |
|
PRODUCT LENGTH/DEPTH |
3.38 in |
|
PRODUCT HEIGHT |
4.13 in |
|
PRODUCT WIDTH |
4.13 in |
|
PRODUCT WEIGHT |
4.25 lb |
|
AMPERAGE RATING |
150 A |
|
VOLTAGE RATING |
600 Vac, 250 Vdc |
|
TRIP TYPE |
Fixed thermal, fixed magnetic |
|
CIRCUIT BREAKER TYPE |
HFD |
|
CIRCUIT BREAKER FRAME TYPE |
Complete breaker |
|
SERIES |
Series C |
|
TERMINALS |
Load side |
|
INTERRUPT RATING |
100 kAIC at 240 Vac |
|
|
65 kAIC at 480 Vac |
|
NUMBER OF POLES |
Three-pole |
Information About HFD3150
The HFD3150 is an Eaton Series C complete molded case circuit breaker. This product is categorized under the Series C line and is identified as an F-frame, HFD type circuit breaker. It is designed as a complete breaker with both fixed thermal and fixed magnetic trip types. The breaker is configured as a three-pole device, making it suitable for three-phase electrical systems.
The HFD3150 circuit breaker has an amperage rating of 150 A. This rating signifies the maximum current the breaker can handle without tripping under normal operating conditions. The voltage ratings for this breaker are 600 Vac and 250 Vdc. These ratings indicate the maximum alternating current (AC) and direct current (DC) voltages the breaker can safely operate within.
The trip type of the HFD3150 is both fixed thermal and fixed magnetic. The fixed thermal trip provides protection against overload conditions by sensing the heat generated by the excessive current flow. The fixed magnetic trip protects against short circuits by using a magnetic field to detect and respond to the high current flow instantaneously.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
