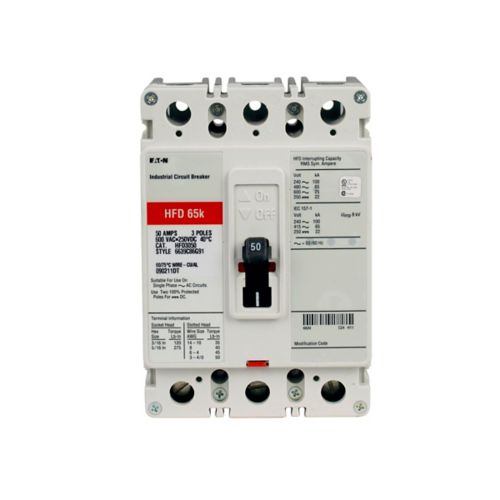

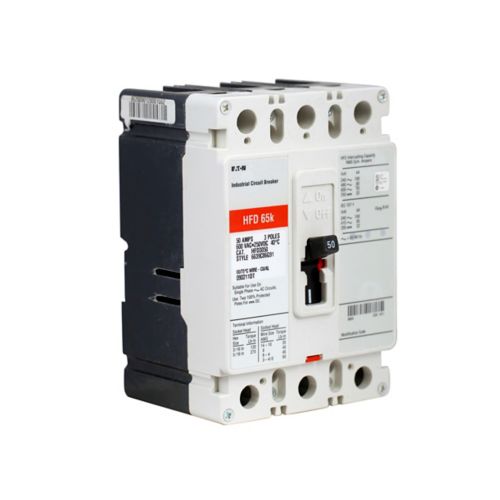

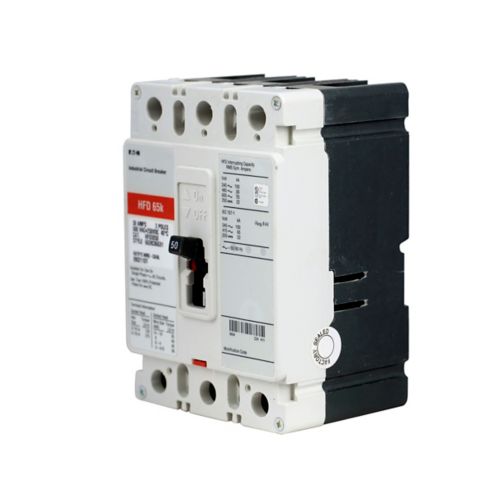

HFD3200BP10 | Eaton Series C Complete Molded Case Circuit Breaker
- Regular price
- $3,999.00
- Sale price
- $3,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HFD3200BP10
Description
The Eaton HFD3200BP10 is a Series C, F‑frame, complete molded-case circuit breaker (MCCB) designed for three-phase power protection in industrial and commercial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Circuit Breaker
|
| Part Number | HFD3200BP10 |
| Subcategory | Molded Case Circuit Breaker |
| Amperage Rating |
200 A |
| Voltage Rating |
600 Vac, 250 Vdc |
| Trip Type |
T186 |
| Circuit Breaker Type |
HFD |
| Series |
Series C
|
| Terminals |
Load side |
| Frame |
F |
| Frequency Rating |
50 to 60 Hz |
| Interrupt Rating | 65 kAIC at 480 Vac 100 kAIC at 240 Vac |
| Number of Poles | Three-pole |
| Breaker Line Side Term Method | Busbar (No Lugs) |
| Breaker Load Side Term Method | Lugs |
| Height | 4.13 in |
| Length | 3.38 in |
| Width | 4.13 in |
| Weight | 3 lbs |
Information About HFD3200BP10
The HFD3200BP10 is part of Eaton’s Series C F-frame molded-case circuit breakers, built to deliver high-performance circuit protection in industrial and commercial power distribution systems. Rated at 200 A, this 3-pole breaker offers a 65 kA interrupting capacity at 480 VAC, and is suitable for systems up to 600 VAC or 250 VDC. Its fixed thermal-magnetic trip unit ensures consistent, maintenance-free protection, while bolt-on mounting and compact dimensions make it easy to integrate into panelboards and switchgear. Designed for reliability and safety, the HFD3200BP10 meets UL standards and supports a wide range of Eaton accessories.
Key Features:
- 200A Rating: Fixed current protection suitable for branch and feeder circuits.
- High Interrupt Capacity: Rated for 65 kAIC at 480 VAC and 100 kAIC at 240 VAC—ideal for high-fault environments.
- Wide Voltage Support: Operates on 600 VAC or 250 VDC systems, providing versatile deployment options.
- Thermal-Magnetic Trip: Integrated fixed trip mechanism for overload and short-circuit protection without adjustment.
- Compact Dimensions: 6.00″ H × 4.13″ W × 3.38″ D with bolt-on mounting—fits standard industrial enclosures.
- Load-Side Lugs: Cable in/cable out termination for secure, straightforward wiring.
- Blow-Open Contacts: Patented contact mechanism ensures rapid arc interruption and long operating life.
- Accessory Compatibility: Supports auxiliary contacts, shunt trips, and other Series C modules for system expansion.
- UL Certified: Meets UL and CSA safety standards for molded-case circuit protection.
The Eaton HFD3200BP10 is a robust, high-capacity breaker designed for demanding power distribution systems, offering the protection, performance, and flexibility required in critical electrical infrastructure.
