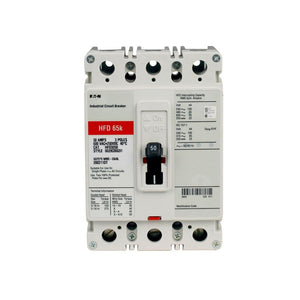

HFD3225 | Eaton Series C HFD 3-Pole 225A 480V Thermal Magnetic Circuit Breaker
- Regular price
- $1,247.00
- Sale price
- $1,247.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HFD3225
Description
The Eaton HFD3225 is a molded case circuit breaker engineered for three-phase electrical systems that require high interrupting capability and dependable overcurrent protection. Rated for 480-volt operation with a 225-amp capacity, it supports heavy-duty commercial and industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | HFD3225 |
| Subcategory | Molded Case Circuit Breaker |
| Family | Series C |
| Type | HFD |
| Voltage | 480 V |
| Amperage | 225 A |
| AIC Rating | 65 kA @ 480 V |
| Poles | 3 |
| Frame Type | F Frame |
| Connection | Bolt-On |
| Phase | 3 |
| Protection | Thermal Magnetic |
| Functions | LI – Long-Time and Instantaneous |
| Interrupting Capacity | High |
| Application | Industrial and commercial distribution |
Information About HFD3225
The HFD3225 is part of Eaton’s Series C family of molded case circuit breakers, designed to support high-performance electrical protection in demanding three-phase environments. With a 225-amp rating and an F Frame construction, it offers durability and consistent operation under heavy electrical loads. The breaker’s thermal magnetic trip unit provides long-time overload protection and instantaneous fault clearing, ensuring dependable safeguarding of connected equipment. Its bolt-on mounting configuration enables secure installation, while the 65 kA interrupt rating at 480 volts delivers strong fault-handling capability for high-energy distribution systems.
Key Features
- Three-pole configuration: Supports balanced protection for three-phase applications.
- 225-amp rating: Handles substantial electrical loads in Series C installations.
- High 65 kA interrupt rating: Provides powerful fault-clearing capacity at 480 volts.
- Thermal magnetic trip: Ensures reliable long-time overload and instantaneous short-circuit protection.
- F Frame construction: Offers durable mechanical performance in industrial environments.
- Bolt-on mounting: Enables secure installation in compatible panelboards.
- LI trip functions: Provides comprehensive overload and instantaneous protection characteristics.
- Designed for heavy-duty systems: Suitable for rigorous commercial and industrial electrical applications.
The HFD3225 delivers the reliability and precision required for safeguarding high-capacity three-phase electrical systems.
