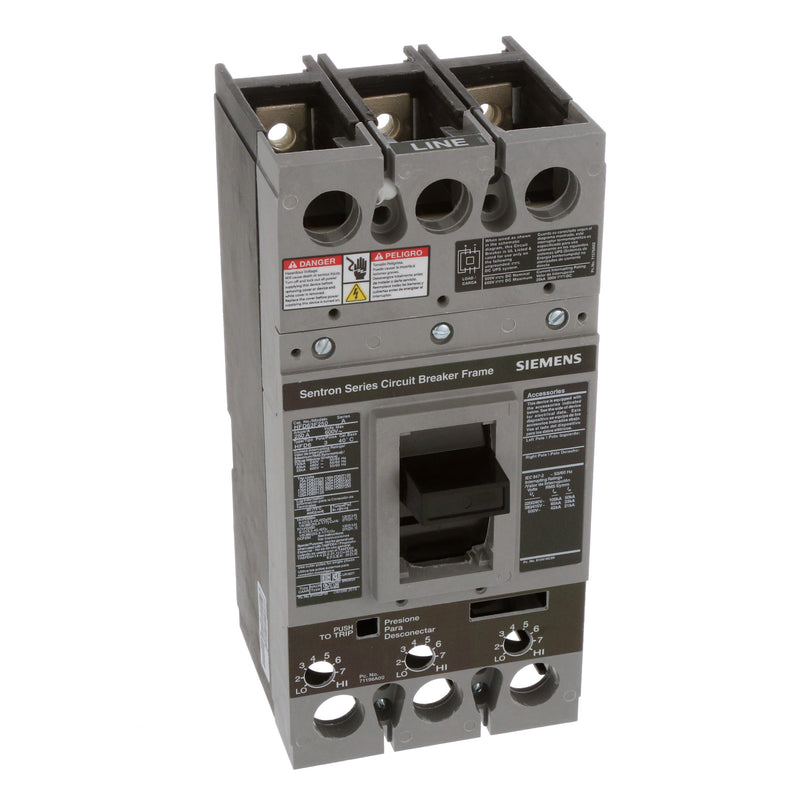

HFD63F250 | Siemens Circuit Breaker Frame
- Regular price
- $1,572.00
- Sale price
- $1,572.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HFD63F250
Description
The Siemens HFD63F250 is a 250 A, 600V AC-rated molded case circuit breaker frame from the HFD Series, designed for reliable circuit protection in commercial and industrial electrical systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Siemens |
| Category |
Circuit Breakers
|
| Part Number | HFD63F250 |
| Subcategory |
Molded Case Circuit Breakers
|
| Voltage Rating | 600 VAC, 500 VDC |
| Amperage Rating |
250 A
|
|
Number of Poles
|
3 |
|
Terminal Type
|
Line/Load Lug |
|
IR Rating
|
25 kA |
|
Specifications
|
50/60 Hz, 1100 to 2500 A Trip Range, Bolt-On Connection, 40°C Operating Temperature |
|
Dimensions
|
6.9 in L x 5.5 in W x 11.1 in H |
|
Weight
|
3.18 kgs |
Information About HFD63F250
The Siemens HFD63F250 is a molded case circuit breaker (MCCB) frame from the HFD Series, designed for dependable circuit protection in commercial, industrial, and infrastructure applications. It supports 3-pole configurations, is rated for up to 250 A at 600V AC, and is designed to accept interchangeable thermal-magnetic trip units, offering flexibility in protecting a variety of loads and systems.
Key Features:
Electrical Ratings:
-
Rated Current Frame: 250 Amps
-
Voltage Rating: Up to 600V AC
-
Interrupting Rating: Varies by trip unit and installation configuration
-
Suitable for UL 489 applications
Pole Configuration:
-
Three-pole (3P) design for three-phase systems
-
Designed to protect line-to-line and line-to-ground faults in balanced systems
Frame and Design:
-
HFD frame type with compact, durable molded case
-
Interchangeable trip unit capability (trip unit sold separately)
-
Bolt-on design for secure mounting in panelboards or switchboards
-
Compact footprint for space-saving installations
Trip Unit Compatibility:
-
Accepts a range of thermal-magnetic trip units, allowing for:
-
Adjustable or fixed trip settings
-
Coordination with downstream equipment
-
-
Enhances customization for specific application needs
Mounting and Application:
-
Designed for panelboard, switchboard, and OEM equipment integration
-
Ideal for branch circuit protection, feeder protection, and equipment isolation
-
Complies with applicable UL and NEC safety requirements
The Siemens HFD63F250 is a versatile and robust MCCB frame engineered to provide flexible and high-capacity circuit protection in demanding environments. With its 250 A frame rating, three-pole support, and interchangeable trip unit design, it allows tailored protection strategies to suit a wide range of applications. Whether used in switchboards, motor control centers, or commercial panels, the HFD63F250 delivers reliable performance and ease of integration in modern electrical systems.
