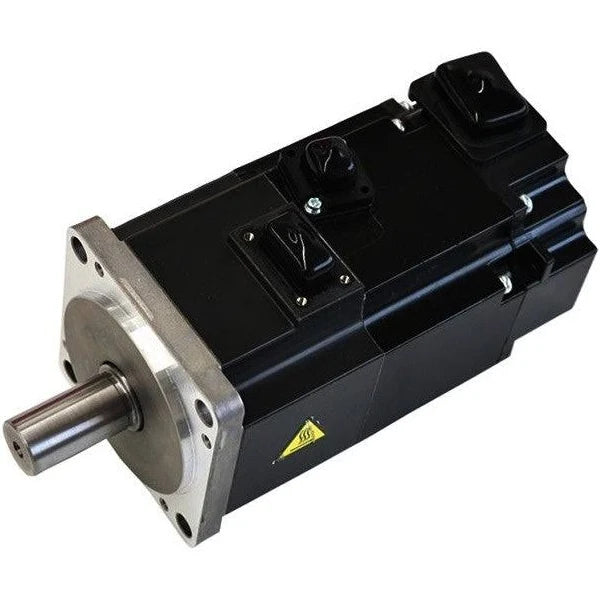

HG-KR73 | Mitsubishi AC Servo Motor
HG-KR73 | Mitsubishi AC Servo Motor
Part #: HG-KR73 Manufactured by: Mitsubishi

HG-KR73 | Mitsubishi AC Servo Motor

Regular price
$519.00
Sale price
$519.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The HG-KR73 by Mitsubishi is a high-performance AC Servo Motor, delivering precision and reliability for diverse industria...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: HG-KR73
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Mitsubishi
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
HG-KR73 | Mitsubishi AC Servo Motor
    HG-KR73 | Mitsubishi AC Servo Motor
HG-KR73 | Mitsubishi AC Servo Motor
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: HG-KR73

Description / Specifications

Description

Mitsubishi Electric manufactured the HG-KR73 servo motor, which provides an accurate and dynamic motion control solution with its 750 watts output power and low inertia/small capacity design. It includes an IP65 rated dust and water protection class standard straight shaft. This servo provides a rated torque of 2.4 Nm and an optimal torque of 8.4 Nm. It enables rapid and efficient operation with a rated speed of 3000 RPM and a highest speed rating of 6000 revolutions per minute (rpm).


Technical Specifications


Brand Mitsubishi
Part Number HG-KR73
Series MELSERVO J4 series
Product Type AC servo motor
Functions AC brushless rotary servo motor
Motor Type Low inertia / small power capacity
Supply voltage 200Vac class
Rated current 4.8 amps
Maximum current 17 amps
Rated active power 750W / 0.75kW
Rotational speed 3000rpm; 6000rpm (maximum)
Torque 2.4Nm nominal; Maximum torque8.4Nm
Moment of inertia 0.000126kg.m2 (1.26kg.cm2)
Connection type 4-pin rectangular connector
Resolution 22-bit (equivalent to 4194304ppr) feedback
Degree of protection IP65




Information About HG-KR73

Mitsubishi Electric's HG-KR73 is an AC servo motor aligned with the HG-KR family and is intended for industrial automation applications requiring low inertia and small-capacity motors. The HG-KR73 motor has a 750W output power rating. It has a rated rotational speed of 3000 rev/min and can reach a maximum speed of 6000 rev/min. The motor has a typical straight shaft design, which makes it easy to couple with other mechanical components. It lacks an electromagnetic brake and a shaft keyway. The HG-KR73 motor has an IP65 classification, which means it is resistant to dust and water and is appropriate for use in harsh industrial situations. The motor weighs roughly 2.8 kg, making it reasonably light for its power output and size and easier to handle and install. The rated torque of the HG-KR73 motor is 2.4 Nm, while the maximum torque is 8.4 Nm. Because of its torque output, it can manage varied load needs and give the required level of force for certain activities. The motor's rated current is 4.8 amps, while the maximum current rating is 17 amps. The HG-KR73 servo motor can withstand prolonged loads and maintain constant performance over long periods of time thanks to its power rate at a continuous rated torque of 45.2 kW/s. Its Maximum radial load is 392 N, and the axial load is 147 N. Its dimension is 97.1mm in height, 80mm in width, and 152mm in depth. The operating temperatures vary from 0 to 40 °C, and the storage temperature varies from -15 to 70 °C.



Manufacturer information

Mitsubishi Electric Corporation, established in 1921, is a leading global manufacturer of electrical and electronic products. Renowned for innovation, it specializes in automation, energy, and electronic systems, contributing to advancements across various industries worldwide.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

Mitsubishi Electric manufactured the HG-KR73 servo motor, which provides an accurate and dynamic motion control solution with its 750 watts output power and low inertia/small capacity design. It includes an IP65 rated dust and water protection class standard straight shaft. This servo provides a rated torque of 2.4 Nm and an optimal torque of 8.4 Nm. It enables rapid and efficient operation with a rated speed of 3000 RPM and a highest speed rating of 6000 revolutions per minute (rpm).


Technical Specifications


Brand Mitsubishi
Part Number HG-KR73
Series MELSERVO J4 series
Product Type AC servo motor
Functions AC brushless rotary servo motor
Motor Type Low inertia / small power capacity
Supply voltage 200Vac class
Rated current 4.8 amps
Maximum current 17 amps
Rated active power 750W / 0.75kW
Rotational speed 3000rpm; 6000rpm (maximum)
Torque 2.4Nm nominal; Maximum torque8.4Nm
Moment of inertia 0.000126kg.m2 (1.26kg.cm2)
Connection type 4-pin rectangular connector
Resolution 22-bit (equivalent to 4194304ppr) feedback
Degree of protection IP65




Information About HG-KR73

Mitsubishi Electric's HG-KR73 is an AC servo motor aligned with the HG-KR family and is intended for industrial automation applications requiring low inertia and small-capacity motors. The HG-KR73 motor has a 750W output power rating. It has a rated rotational speed of 3000 rev/min and can reach a maximum speed of 6000 rev/min. The motor has a typical straight shaft design, which makes it easy to couple with other mechanical components. It lacks an electromagnetic brake and a shaft keyway. The HG-KR73 motor has an IP65 classification, which means it is resistant to dust and water and is appropriate for use in harsh industrial situations. The motor weighs roughly 2.8 kg, making it reasonably light for its power output and size and easier to handle and install. The rated torque of the HG-KR73 motor is 2.4 Nm, while the maximum torque is 8.4 Nm. Because of its torque output, it can manage varied load needs and give the required level of force for certain activities. The motor's rated current is 4.8 amps, while the maximum current rating is 17 amps. The HG-KR73 servo motor can withstand prolonged loads and maintain constant performance over long periods of time thanks to its power rate at a continuous rated torque of 45.2 kW/s. Its Maximum radial load is 392 N, and the axial load is 147 N. Its dimension is 97.1mm in height, 80mm in width, and 152mm in depth. The operating temperatures vary from 0 to 40 °C, and the storage temperature varies from -15 to 70 °C.



Manufacturer information

Mitsubishi Electric Corporation, established in 1921, is a leading global manufacturer of electrical and electronic products. Renowned for innovation, it specializes in automation, energy, and electronic systems, contributing to advancements across various industries worldwide.
