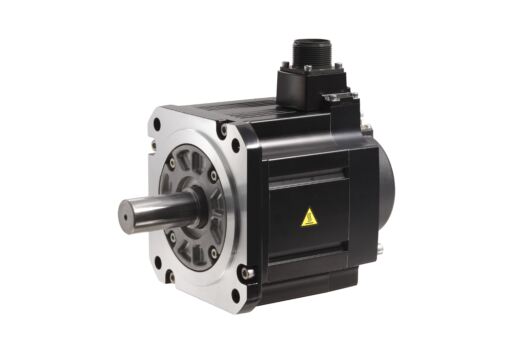

HG-SR702 | Mitsubishi Melservo J4 7 Kw Ac Brushless Rotary Servo Motor Straight Shaft Ip67
- Regular price
- $2,179.00
- Sale price
- $2,179.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HG-SR702
Description
The Mitsubishi HG-SR702 is a 7 kW AC brushless rotary servo motor from the MELSERVO J4 series, designed for high-performance motion control applications. Featuring a straight shaft and 22-bit absolute encoder feedback, it delivers precise positioning, smooth rotation, and reliable operation in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Mitsubishi Electric |
| Part Number | HG-SR702 |
| Category | Servo Products |
| Subcategory | AC Servo Motor |
| Series | MELSERVO J4 HG Series |
| Motor Type | AC Brushless Rotary Servo Motor |
| Rated Output | 7 kW |
| Rated Torque | 33.4 Nm |
| Rated Speed | 2000 rpm |
| Feedback Device | 22-Bit Absolute Encoder (≈ 4,194,304 ppr) |
| Rated Current | 26 A |
| Supply Voltage | 200 VAC Class |
| Shaft Type | Standard Straight Shaft |
| Mounting | 176 × 176 mm Flange |
| Connectors | 2 × MS-Type |
| Enclosure Rating | IP67 |
| Ambient Temperature Rating | 0°C to +40°C |
| Motor Classification | Medium Inertia / Medium Capacity |
Information About HG-SR702
The Mitsubishi HG-SR702 servo motor is part of the high-performance MELSERVO J4 family, offering exceptional speed, torque, and positional accuracy for advanced industrial automation systems. With a 7 kW output and a medium-inertia rotor design, it provides stable control for applications requiring rapid load changes or high-precision motion profiles. The integrated 22-bit absolute encoder supplies highly accurate feedback, enabling smoother operation and enhanced synchronization in multi-axis systems. Its rugged IP67 construction and MS-type connectors ensure reliable performance in challenging environments, while the 176 mm flange design allows straightforward integration into existing mechanical platforms. Compatible with Mitsubishi servo amplifiers, the HG-SR702 supports high-speed communication and advanced motion functions across a wide range of industrial machinery.
Key Features:
- High-Power 7 kW Servo Motor: Provides robust torque output and dynamic motion capability for heavy industrial loads.
- 22-Bit Absolute Feedback Encoder: Delivers ultra-high resolution positioning for precise and repeatable motion control tasks.
- Medium-Inertia Design: Improves stability and response, ideal for machinery with variable or unbalanced loads.
- 200 VAC Class Operation: Compatible with standard servo drive configurations in Mitsubishi MELSERVO systems.
- IP67 Protection: Ensures dust-tight and water-resistant performance for harsh industrial conditions.
- Straight Shaft Configuration: Simplifies mechanical integration with couplings, pulleys, and gear assemblies.
- MS-Type Dual Connectors: Supports secure power and feedback connections for reliable long-term operation.
- Optimized for MELSERVO J4 Drives: Enables advanced control functions, high-speed communication, and system diagnostics.
The HG-SR702 delivers the reliability and precision required for high-performance motion control in Mitsubishi MELSERVO J4 automation systems.
