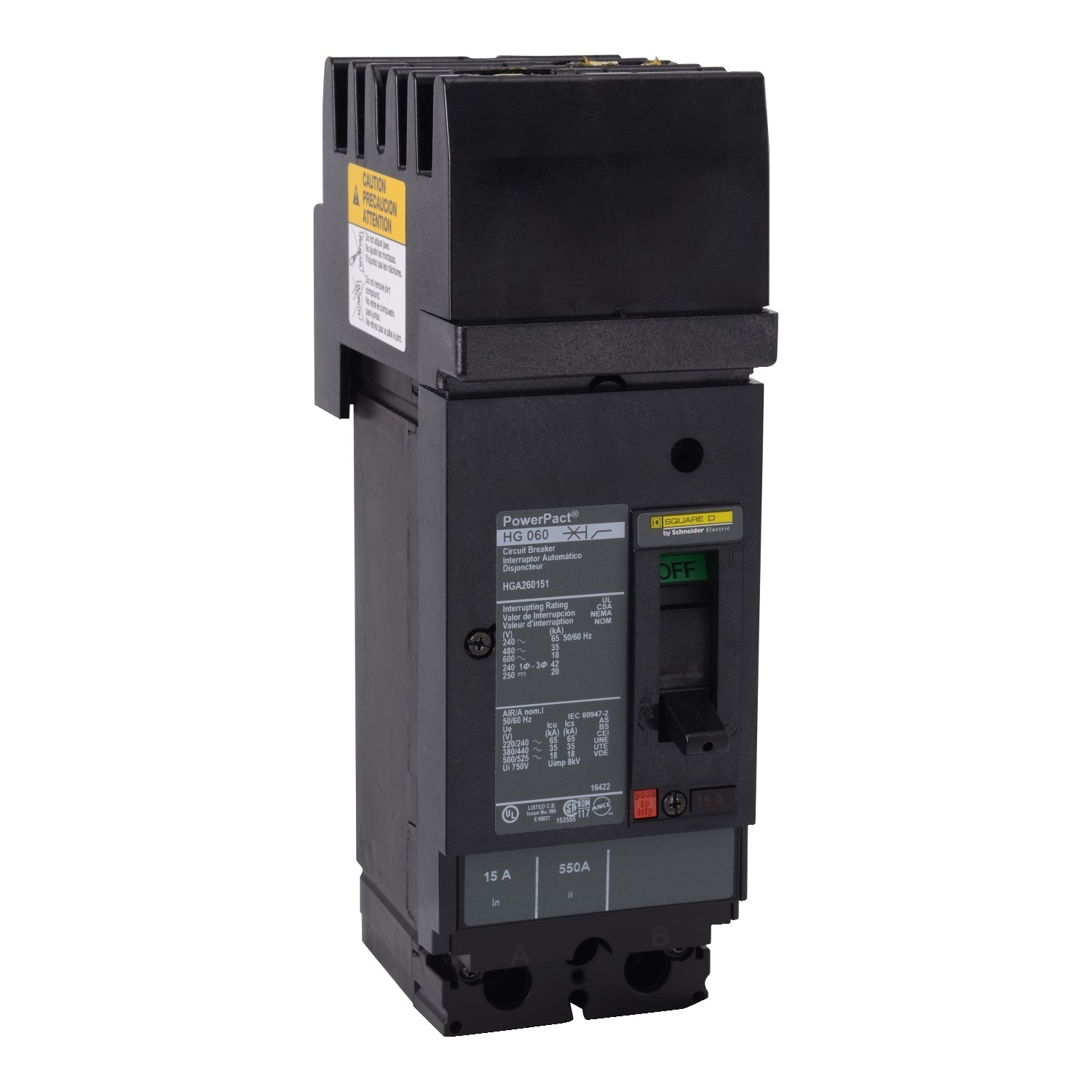

HGA260201 | Schneider Electric Circuit Breaker
- Regular price
- $710.00
- Sale price
- $710.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HGA260201
Description
The HGA260201 is a 2-pole PowerPacT H-Frame circuit breaker designed for electrical systems, offering protection against overloads and short circuits. Equipped with thermal magnetic circuit protection, it operates at 600VAC with a breaking capacity of 18kA. Featuring dual-break rotating contacts, it mitigates peak current during short circuit faults.
Technical Specifications
|
Part # |
HGA260201 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
20 A |
|
Number of Poles |
2P |
|
Protected Poles Description |
2t |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
G |
|
Rated Operational Voltage |
690 V AC 50/60 Hz |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage |
8 kV |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
750 A |
|
Magnetic Hold Current |
350 A |
|
Continuous Current Rating |
80 % |
|
Rated Insulation Voltage |
750 V |
|
Suitability for Isolation |
Yes |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
|
Local Signalling |
Switched off (OFF) 1 trip indicator green |
|
Mounting Mode |
I-Line bracket |
|
Mounting Support |
Bracket |
|
Electrical Connection |
I-Line connection, line |
|
Terminal Identifier |
AL150HD |
|
Mounting Height |
3 in (76.20 mm) |
|
Power Wire Stripping Length |
0.63 in (16 mm) |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb(US) (2.2 kg) |
|
Quantity per Set |
1 |
|
Phase Connection |
AB |
Information About HGA260201
The HGA260201 PowerPacT H-Frame circuit breaker is engineered to safeguard electrical systems against the detrimental effects of overloads and short circuits. These circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units, offering versatility in protection solutions.
This specific PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with an impressive breaking capacity of 18kA at 600VAC, ensuring efficient protection against high fault currents. Equipped with dual-break rotating contacts, these circuit breakers minimize peak current during short circuit faults, enhancing their reliability and safety features.
All PowerPacT H-Frame circuit breakers feature an integral push-to-trip button in the cover, allowing for manual tripping when necessary. Available in 2 and 3-pole unit mount configurations, as well as I-Line constructions, these circuit breakers offer flexibility in installation options. PowerPacT H I-Line circuit breakers are specifically designed for easy installation and removal in I-Line applications, streamlining maintenance procedures.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
