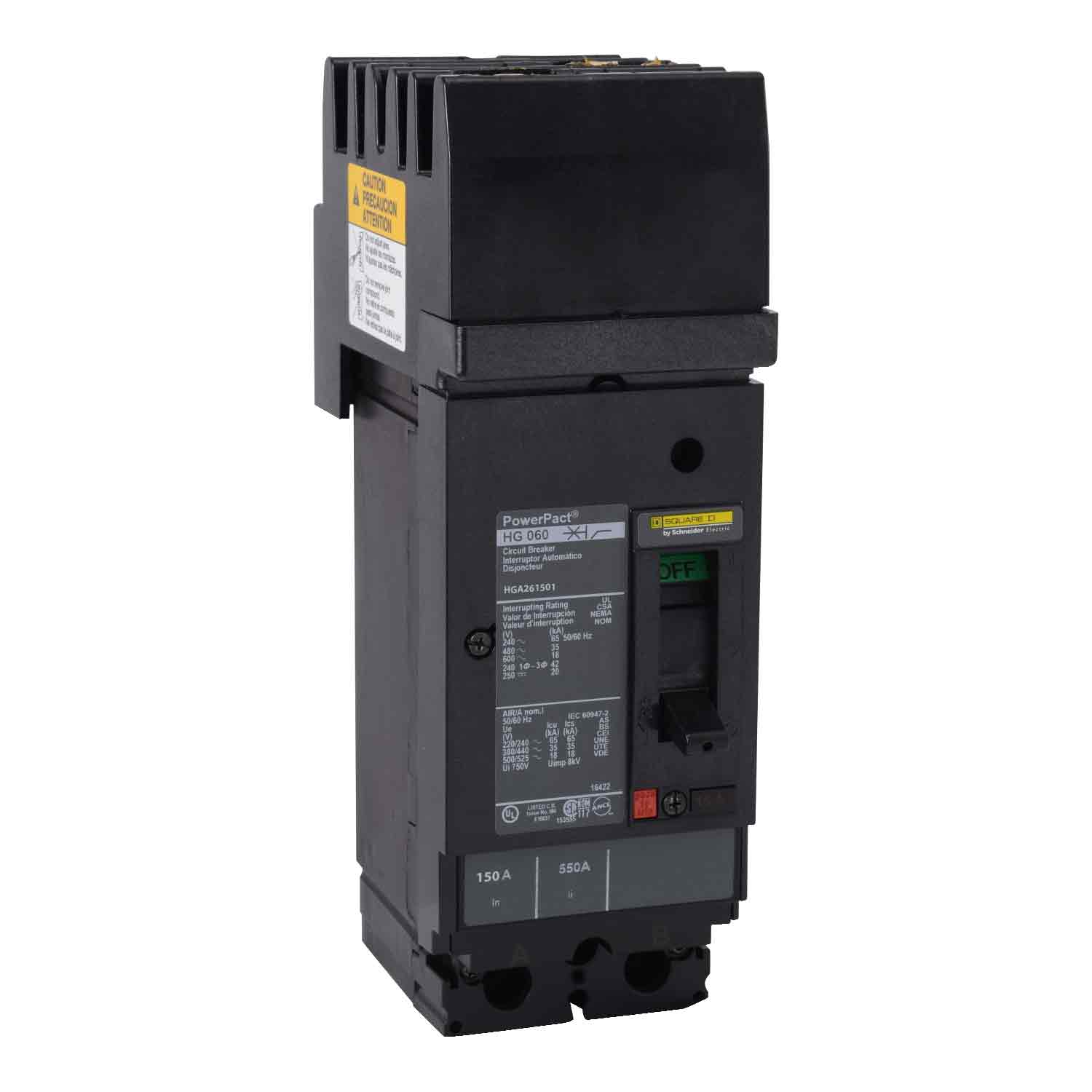

HGA261501 | Square D PowerPact 150A 2-Pole 600V I-Line Molded Case Circuit Breaker
- Regular price
- $1,022.00
- Sale price
- $1,022.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HGA261501
Description
The Square D HGA261501 PowerPact Circuit Breaker is a high-performance 2-pole molded case circuit breaker designed for dependable protection in industrial and commercial electrical systems. With a 150-amp current rating and 600-volt capacity, it safeguards circuits against overloads and short circuits. The HGA261501 features a thermal-magnetic trip unit and I-Line plug-in design for easy installation and consistent operation in demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | HGA261501 |
| Subcategory | Molded Case Circuit Breaker |
| Series | PowerPact H |
| Frame Type | HGA |
| Number of Poles | 2 |
| Rated Current | 150 A |
| Rated Voltage | 600 VAC / 250–600 VDC |
| Interrupting Rating | 65 kA @ 240 VAC / 35 kA @ 480 VAC / 18 kA @ 600 VAC |
| Trip Unit Type | Thermal-Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Connection Type | I-Line Plug-In |
| Continuous Current Rating | 80 % |
| Control Type | Toggle |
| Mounting Type | I-Line Bracket |
| Wire Size Range | AWG 14 – 3/0 (AL/CU) |
| Compliance Standards | UL, CSA, NEMA, NOM, IEC, RoHS |
| Operating Temperature | –13 °F to 158 °F (–25 °C to +70 °C) |

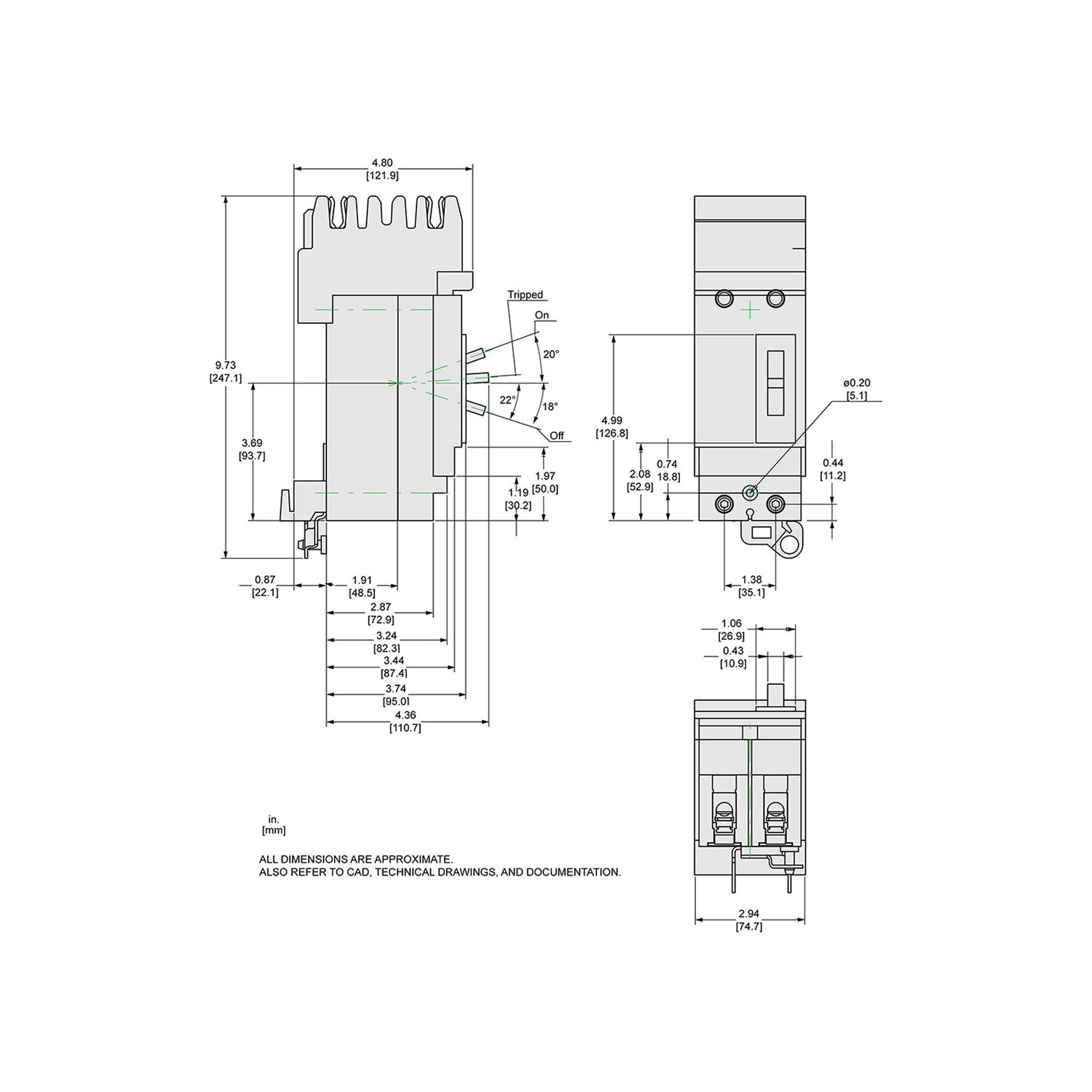

| Dimensions (H × W × D) | 9.73 × 2.94 × 4.8 in |
| Weight | 4.85 lb (2.2 kg) |
Information About HGA261501
The HGA261501 is part of Square D’s PowerPact H-Frame series, known for its robust thermal-magnetic protection and durable molded case construction. This model is designed for use with I-Line panelboards and switchboards, offering plug-on mounting and high interrupting performance. It supports both AC and DC applications with up to 65 kA interrupting capacity at 240 VAC and 35 kA at 480 VAC. Engineered for reliability and compliance, the HGA261501 meets UL, CSA, NEMA, NOM, and IEC standards, making it suitable for a wide range of power distribution setups.
Key Features:
- High Interrupting Capacity: Handles up to 65 kA at 240 VAC for superior short-circuit protection.
- Thermal-Magnetic Trip Unit: Combines long-time and instantaneous functions for precise circuit control.
- I-Line Plug-In Connection: Enables quick, secure installation in compatible I-Line panelboards.
- Versatile Voltage Support: Rated for up to 600 VAC and 250/500/600 VDC for broad application use.
- Rugged Molded Case: Ensures long service life under demanding operating conditions.
- Wide Wire Range: Accepts AWG 14 – 3/0 aluminum or copper conductors.
- Certified Compliance: Meets UL, CSA, NOM, and IEC requirements for global electrical standards.
- Ambient Temperature Range: Operates reliably between –25 °C and +70 °C (–13 °F to 158 °F).
The HGA261501 delivers the reliability and precision required for safe, efficient electrical distribution in industrial and commercial systems.
