HGA36020 | Schneider Electric Circuit Breaker
- Regular price
- $450.00
- Sale price
- $450.00
- Regular price
-
Do you need more quantity?

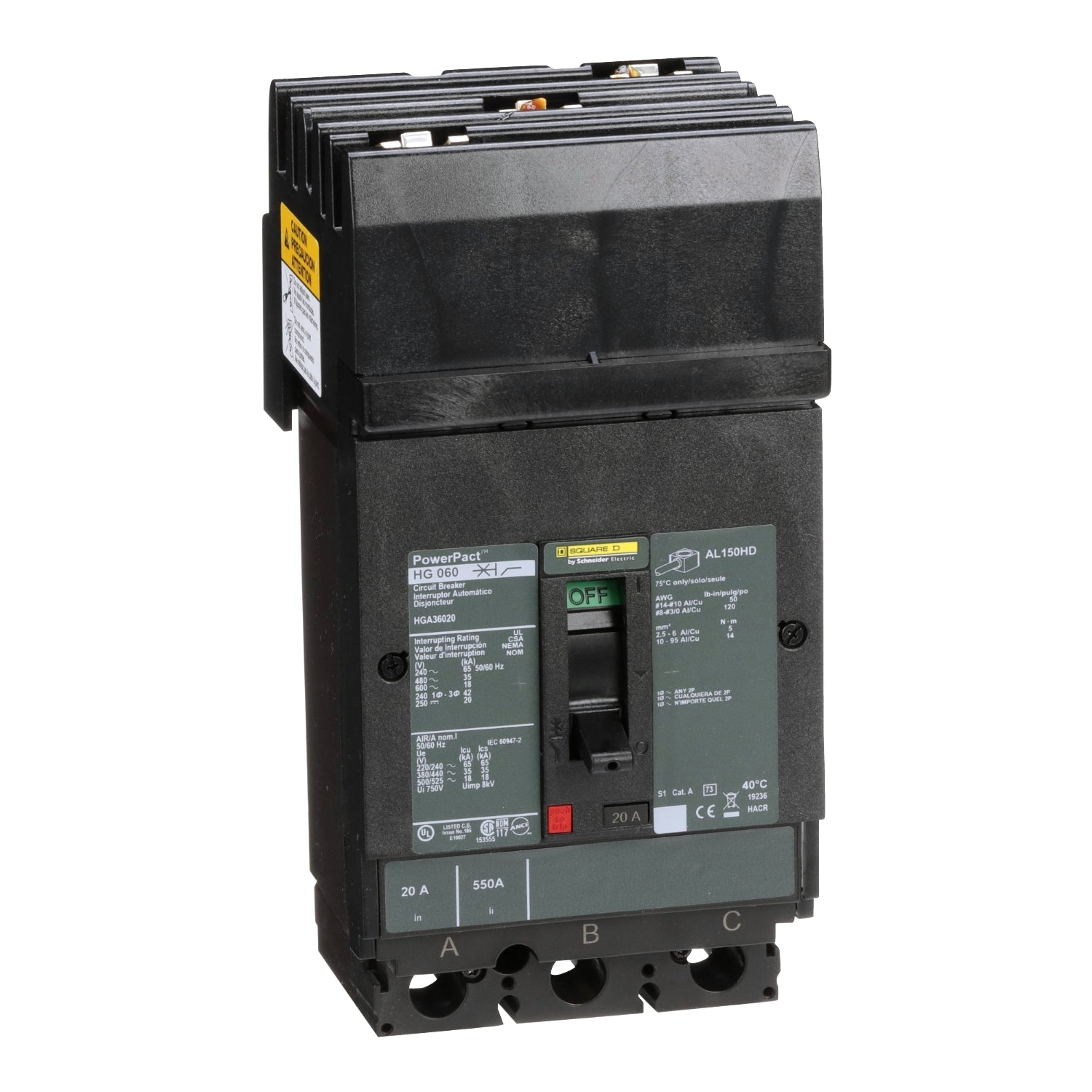

Product Description P/N: HGA36020
Description
The HGA36020 circuit breaker, part of the PowerPacT H-Frame series, is engineered to safeguard electrical systems against damage from overloads and short circuits. Featuring thermal magnetic circuit protection, this breaker has a breaking capacity of 18kA at 600VAC. Equipped with dual-break rotating contacts, it efficiently reduces peak current during short circuit faults.
The PowerPacT H-Frame circuit breakers offer flexibility with options for either thermal magnetic or Micrologic electronic trip protection units. Additionally, they feature an integral push-to-trip button in the cover for manual tripping.
Technical Specifications
Part # |
HGA36020 |
Category |
Circuit Breaker |
Subcategory |
Molded Case Circuit Breaker |
Line Rated Current |
20 A |
Number of Poles |
3P |
Protected poles description |
3t |
Control Type |
Toggle |
Breaking capacity code |
G |
[Ue] rated operational voltage |
690 V AC 50/60 Hz IEC 60947-3 |
Network Frequency |
50/60 Hz |
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
Trip unit technology |
Thermal-magnetic |
Magnetic tripping current |
750 A |
Magnetic hold current |
350 A |
Continuous current rating |
80 % |
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
Suitability for isolation |
Yes IEC 60947-2 |
Utilisation category |
Category A |
AWG gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
Local signalling |
Switched off (OFF) 1 trip indicator green) |
Mounting mode |
I-Line bracket |
Mounting Support |
Bracket |
Electrical connection |
I-Line connection, line |
Terminal identifier |
AL150HD |
Mounting Height |
4.5 in (114.30 mm) |
Power wire stripping length |
0.63 in (16 mm) |
Color |
Black |
Height |
6.42 in (163 mm) |
Width |
4.09 in (104 mm) |
Depth |
3.39 in (86 mm) |
Net Weight |
4.85 lb(US) (2.2 kg) |
Quantity per Set |
1 |
Phase connection |
ABC |
Information About HGA36020
The HGA36020 is a circuit breaker belonging to the PowerPacT H series, designed to safeguard electrical systems from potential damage due to overloads and short circuits. These circuit breakers come equipped with either thermal magnetic or Micrologic electronic trip protection units, providing users with flexible options to suit their needs.
Specifically, the HGA36020 offers thermal magnetic circuit protection with a robust breaking capacity of 18kA at 600VAC, ensuring reliable performance even under demanding conditions. Featuring dual-break rotating contacts, this circuit breaker effectively reduces peak current during short circuit faults, enhancing overall system safety.
For added convenience, all PowerPacT H circuit breakers include an integral push-to-trip button integrated into the cover, allowing for manual tripping when necessary. Available in both 2 and 3-pole unit mount configurations, as well as I-Line constructions, these breakers offer versatility in installation options.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
Description
The HGA36020 circuit breaker, part of the PowerPacT H-Frame series, is engineered to safeguard electrical systems against damage from overloads and short circuits. Featuring thermal magnetic circuit protection, this breaker has a breaking capacity of 18kA at 600VAC. Equipped with dual-break rotating contacts, it efficiently reduces peak current during short circuit faults.
The PowerPacT H-Frame circuit breakers offer flexibility with options for either thermal magnetic or Micrologic electronic trip protection units. Additionally, they feature an integral push-to-trip button in the cover for manual tripping.
Technical Specifications
Part # |
HGA36020 |
Category |
Circuit Breaker |
Subcategory |
Molded Case Circuit Breaker |
Line Rated Current |
20 A |
Number of Poles |
3P |
Protected poles description |
3t |
Control Type |
Toggle |
Breaking capacity code |
G |
[Ue] rated operational voltage |
690 V AC 50/60 Hz IEC 60947-3 |
Network Frequency |
50/60 Hz |
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
Trip unit technology |
Thermal-magnetic |
Magnetic tripping current |
750 A |
Magnetic hold current |
350 A |
Continuous current rating |
80 % |
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
Suitability for isolation |
Yes IEC 60947-2 |
Utilisation category |
Category A |
AWG gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
Local signalling |
Switched off (OFF) 1 trip indicator green) |
Mounting mode |
I-Line bracket |
Mounting Support |
Bracket |
Electrical connection |
I-Line connection, line |
Terminal identifier |
AL150HD |
Mounting Height |
4.5 in (114.30 mm) |
Power wire stripping length |
0.63 in (16 mm) |
Color |
Black |
Height |
6.42 in (163 mm) |
Width |
4.09 in (104 mm) |
Depth |
3.39 in (86 mm) |
Net Weight |
4.85 lb(US) (2.2 kg) |
Quantity per Set |
1 |
Phase connection |
ABC |
Information About HGA36020
The HGA36020 is a circuit breaker belonging to the PowerPacT H series, designed to safeguard electrical systems from potential damage due to overloads and short circuits. These circuit breakers come equipped with either thermal magnetic or Micrologic electronic trip protection units, providing users with flexible options to suit their needs.
Specifically, the HGA36020 offers thermal magnetic circuit protection with a robust breaking capacity of 18kA at 600VAC, ensuring reliable performance even under demanding conditions. Featuring dual-break rotating contacts, this circuit breaker effectively reduces peak current during short circuit faults, enhancing overall system safety.
For added convenience, all PowerPacT H circuit breakers include an integral push-to-trip button integrated into the cover, allowing for manual tripping when necessary. Available in both 2 and 3-pole unit mount configurations, as well as I-Line constructions, these breakers offer versatility in installation options.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
