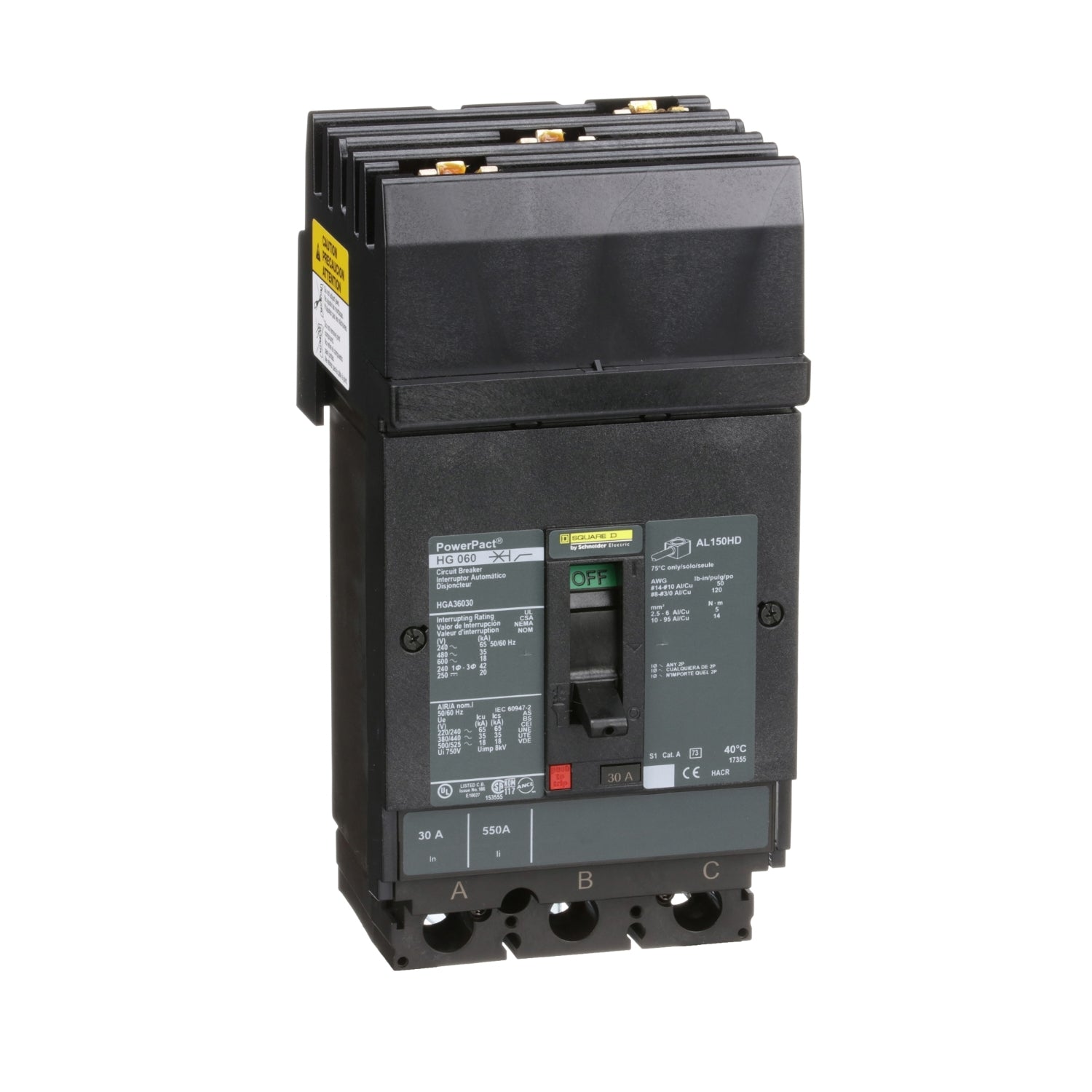

HGA36030 | Schneider Electric Circuit Breaker
- Regular price
- $544.00
- Sale price
- $544.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HGA36030
Description
The HGA36030 is a PowerPacT H-Frame circuit breaker designed to protect electrical systems from overloads and short circuits. This specific model has a current rating of 30A and is a 3-pole unit with an operating voltage of 600VAC. It features a thermal magnetic trip unit and provides a breaking capacity of 18kA at 600VAC. The continuous current rating is 80%. The breaker utilizes I-Line terminations on the line side and mechanical lugs on the load side, facilitating easy installation and removal in I-Line applications.
Technical Specifications
|
Part # |
HGA36030 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
30 A |
|
Number of Poles |
3P |
|
Protected Poles Description |
3t |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
G |
|
[Ue] Rated Operational Voltage |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
750 A |
|
Magnetic Hold Current |
350 A |
|
Continuous Current Rating |
80 % |
|
[Ui] Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
|
Local Signalling |
Switched off (OFF) 1 trip indicator green) |
|
Mounting Mode |
I-Line (bracket) |
|
Mounting Support |
Bracket |
|
Electrical Connection |
I-Line connection (line), Lugs (load) |
|
Terminal Identifier |
AL150HD |
|
Mounting Height |
4.5 in (114.30 mm) |
|
Power Wire Stripping Length |
0.63 in (16 mm) |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb(US) (2.2 kg) |
|
Quantity per Set |
1 |
|
Phase Connection |
ABC |
|
Communication Interface |
Modbus, Ethernet |
|
Circuit Breaker Application |
HACR rated |
Information About HGA36030
The HGA36030 circuit breaker, part of the PowerPacT H series, is designed to safeguard electrical systems from potential damage caused by overloads and short circuits. These circuit breakers offer a choice between thermal magnetic or Micrologic electronic trip protection units. Specifically, the HGA36030 provides thermal magnetic circuit protection with a robust breaking capacity of 18kA at 600VAC.
Equipped with dual-break rotating contacts, PowerPacT H-Frame circuit breakers mitigate the impact of peak currents during short circuit faults, enhancing their reliability and effectiveness. Additionally, all PowerPacT circuit breakers feature an integral push-to-trip button in the cover, enabling manual tripping when necessary.
Available in both 2 and 3-pole unit mount configurations, as well as I-Line constructions, PowerPacT H circuit breakers offer versatility in installation options. The I-Line variant is particularly convenient for easy installation and removal in I-Line applications, featuring I-Line terminations on the line side and mechanical lugs on the load side.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
