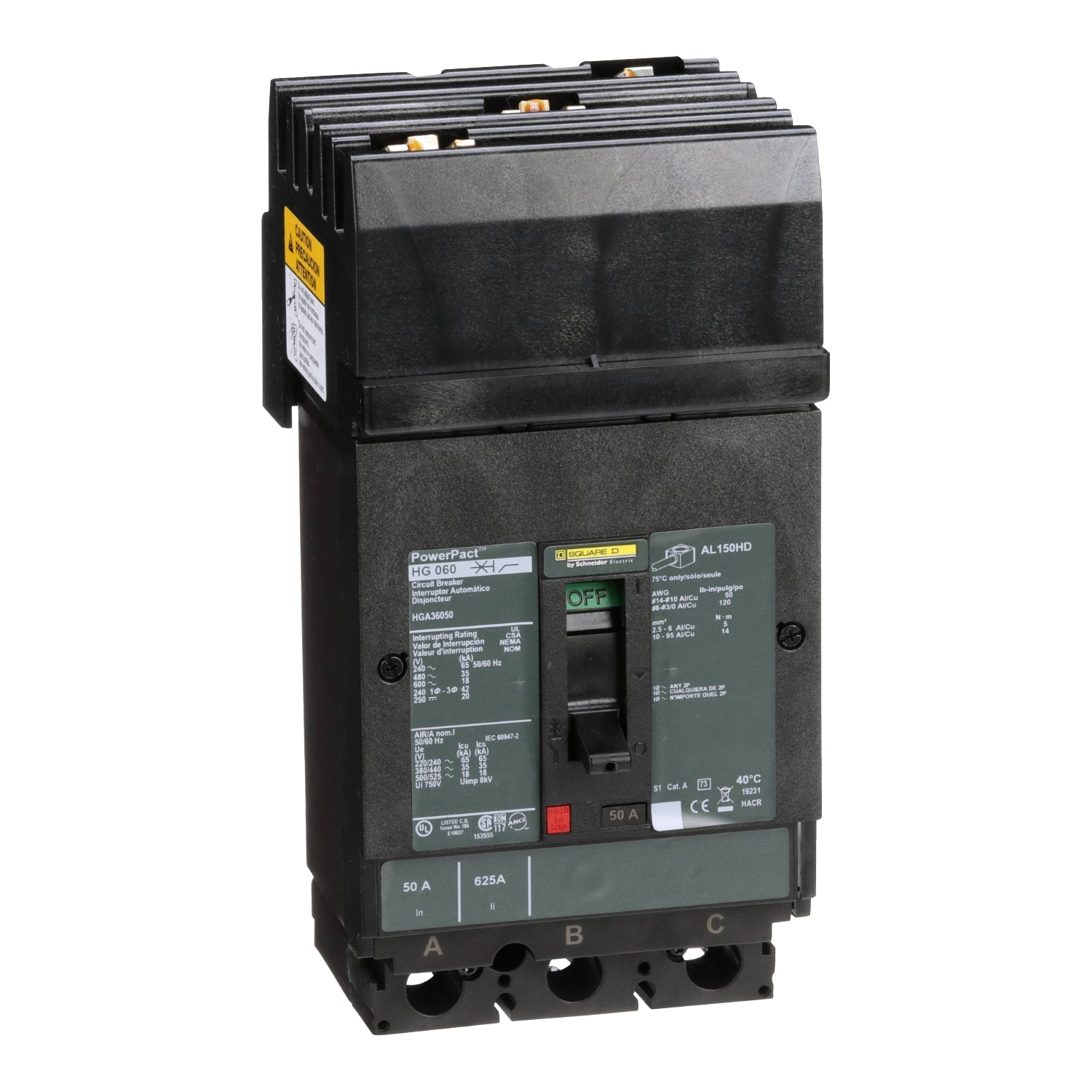

HGA36050 | Schneider Electric Circuit Breaker
- Regular price
- $629.00
- Sale price
- $629.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HGA36050
Description
HGA36050, Square D circuit breaker molded case Powerpact, type HGA, H Frame, 3PH, 3P, 600V, 50A, 35kA@480V, I-Line Style Plug-In, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | HGA36050 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | HGA |
| Voltage | 600 |
| Amperage | 50 |
| AIC Rating | 35kA@480V |
| Frame Type | H Frame |
| Phase | 3 |
| Protection | Thermal Magnetic |
| Connection | I-Line Style Plug-In |
| Functions | LI - Long-Time and Instantaneous |
| Poles | 3 |
Information About HGA36050
The HGA36050 Schneider Electric Circuit Breaker is a robust and high-performance electrical protection device designed for demanding industrial and commercial applications. As part of the Powerpact family, this breaker ensures exceptional reliability and efficiency.
Operating at a voltage of 600V and an amperage of 50A, the HGA36050 is suitable for managing significant power loads in three-phase systems. It features a three-pole configuration, ensuring balanced and efficient power distribution across all phases.
The circuit breaker employs a Thermal Magnetic protection mechanism, which combines thermal protection for long-time overload conditions and magnetic protection for instantaneous short-circuit response. This dual protection ensures comprehensive safeguarding of electrical circuits. It boasts an interrupting capacity (AIC) of 35kA at 480V, making it capable of handling substantial fault currents.
Designed for ease of installation and maintenance, the HGA36050 utilizes an I-Line Style Plug-In connection, which simplifies integration into existing electrical systems and allows for quick and secure attachment to I-Line panelboards and busway systems. The H Frame type enhances its durability and reliability, making it suitable for harsh environments.
The primary functions of the HGA36050 include Long-Time and Instantaneous protection, ensuring continuous operation under normal conditions and rapid disconnection during fault conditions to prevent damage and enhance safety.
Overall, the HGA36050 Schneider Electric Circuit Breaker is a dependable and efficient solution for protecting electrical circuits from overloads and short circuits, ensuring safety and operational integrity in industrial and commercial settings.
