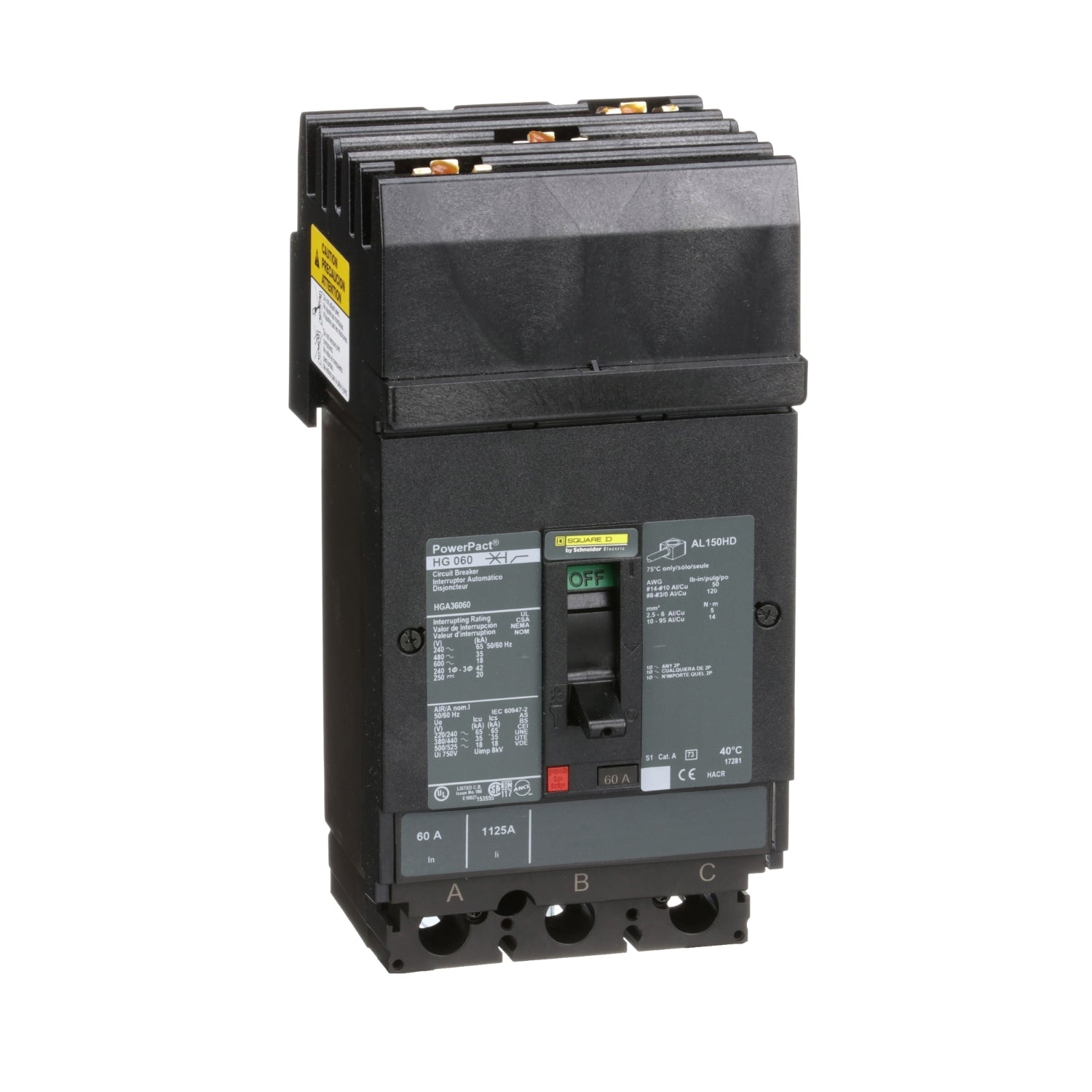

HGA36060 | Schneider Electric Circuit Breaker
- Regular price
- $772.00
- Sale price
- $772.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HGA36060
Description
The HGA36060 Circuit Breaker belongs to the PowerPacT H series, designed specifically to safeguard electrical systems against damage from overloads and short circuits. Available with either thermal magnetic or Micrologic electronic trip protection units, this circuit breaker model offers thermal magnetic circuit protection with a substantial breaking capacity of 18kA at 600VAC.
Technical Specifications
|
Part # |
HGA36060 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
60 A |
|
Number of Poles |
3P |
|
Protected Poles Description |
3t |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
G |
|
[Ue] Rated Operational Voltage |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
1450 A |
|
Magnetic Hold Current |
800 A |
|
Continuous Current Rating |
80 % |
|
[Ui] Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 14...AWG 3/0 aluminium/copper |
|
Local Signalling |
Switched off (OFF) 1 trip indicator green) |
|
Mounting Mode |
I-Line bracket) |
|
Mounting Support |
Bracket |
|
Electrical Connection |
I-Line connection, line Lugs, load |
|
Terminal Identifier |
AL150HD |
|
Mounting Height |
4.5 in (114.30 mm) |
|
Power Wire Stripping Length |
0.63 in (16 mm) |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb(US) (2.2 kg) |
|
Quantity per Set |
1 |
|
Phase Connection |
ABC |
|
Communication Interface |
Modbus Ethernet |
|
Circuit Breaker Application |
HACR rated |
|
IP Degree of Protection |
Front cover IP40 IEC 60529 |
|
Pollution Degree |
3 IEC 60947-1 |
|
Ambient Air Temperature for Operation |
-13…158 °F (-25…70 °C) |
|
Ambient Air Temperature for Storage |
-58…185 °F (-50…85 °C) |
Information About HGA36060
The HGA36060 circuit breaker, part of the PowerPacT H series, is engineered to safeguard electrical systems against overloads and short circuits. Offering versatile protection, PowerPacT H-Frame circuit breakers come equipped with either thermal magnetic or Micrologic electronic trip protection units. Specifically, the HGA36060 features thermal magnetic circuit protection with a formidable breaking capacity of 18kA at 600VAC.
Notably, all PowerPacT H-Frame circuit breakers are furnished with dual-break rotating contacts, which effectively mitigate the peak current levels during short circuit faults. Additionally, each circuit breaker in the PowerPacT series incorporates an integral push-to-trip button within the cover, facilitating manual tripping when necessary.
Available in both 2 and 3-pole unit mount configurations, as well as I-Line constructions, the PowerPacT H series offers flexibility in installation. Moreover, PowerPacT H I-Line circuit breakers are specifically tailored for easy integration and removal in I-Line applications. The HGA36060 breaker boasts I-Line terminations on the line side and mechanical lugs on the load side, ensuring secure connections.
Operating at a rated current of 60A, the HGA36060 circuit breaker maintains its robust breaking capacity of 18kA at 600VAC, making it suitable for a wide range of applications. With a continuous current rating of 80% and an ABC phase connection, this circuit breaker is engineered to deliver reliable performance under demanding conditions.
In terms of compliance, PowerPacT H circuit breakers adhere to stringent industry standards, including UL, CSA, NOM, and IEC requirements. Additionally, they bear the CE mark, signifying conformity to European Union directives.
