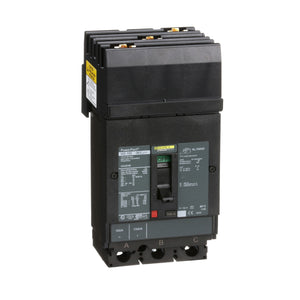

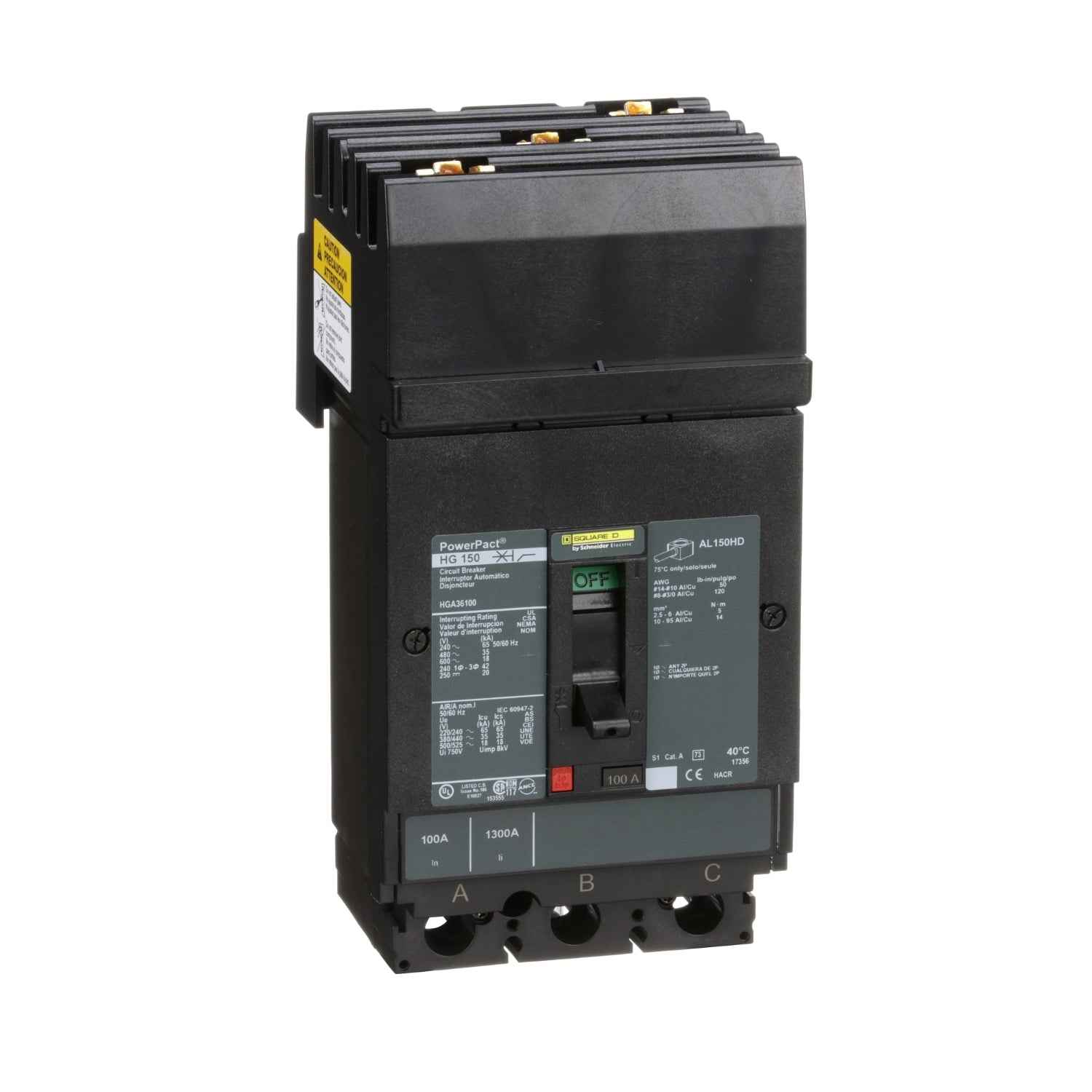

HGA36100 | Schneider Electric Circuit Breaker
- Regular price
- $779.00
- Sale price
- $779.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HGA36100
Description
The Schneider Electric HGA36100 is a 100-amp, three-pole molded case circuit breaker designed for reliable protection in 600V three-phase electrical systems. Part of the PowerPact H-Frame family, it uses a thermal-magnetic trip unit with long-time and instantaneous functions to safeguard against overloads and short-circuit faults. Its I-Line style plug-in mounting allows rapid, secure installation and supports reverse-fed applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | HGA36100 |
| Subcategory | Molded Case Circuit Breaker |
| Family | PowerPact |
| Type | HGA |
| Voltage Rating | 600 V |
| Amperage Rating | 100 A |
| Phase | 3-Phase |
| Poles | 3 |
| AIC Rating | 35 kA @ 480 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Trip Unit | Non-interchangeable |
| Frame Type | H Frame |
| Connection Type | I-Line Style Plug-In |
| Phase Arrangement | ABC Phase |
| Application | Industrial and commercial power distribution |
Information About HGA36100
The HGA36100 belongs to Schneider Electric’s PowerPact breaker line, engineered for robust performance in industrial and commercial power distribution. Built on the H-Frame platform, it provides a compact yet durable solution for 100A three-phase circuits. Its thermal-magnetic protection delivers consistent long-time overload control and instantaneous response to short-circuit events, while its 35 kA interrupting capacity at 480V ensures strong fault-clearing capability. With an I-Line plug-in connection, the breaker installs quickly into compatible panelboards and busway systems, enabling secure mechanical engagement without bolted line terminals. Designed for ABC phase configuration and non-interchangeable trips, the HGA36100 provides stable, predictable performance across its service life.
Key Features:
- PowerPact H-Frame construction: Rugged molded case design for industrial applications.
- 100A current rating: Suitable for medium-capacity three-phase feeders and branch circuits.
- 600V AC operation: Supports a wide range of commercial and industrial distribution systems.
- 35 kA interrupt rating: High fault-current capability at 480V.
- Thermal-magnetic trip unit: Provides both overload and short-circuit protection.
- LI trip characteristics: Long-time and instantaneous trip modes for precise response.
- I-Line style plug-in connection: Enables fast, secure panelboard installation.
- Reverse-feed compatible: Approved for installations requiring back-fed operation.
- Non-interchangeable trip unit: Ensures consistent, factory-set protection performance.
- Three-pole configuration: Offers balanced protection across ABC-phase circuits.
The HGA36100 delivers the reliability and precision required for demanding industrial and commercial three-phase electrical systems.
