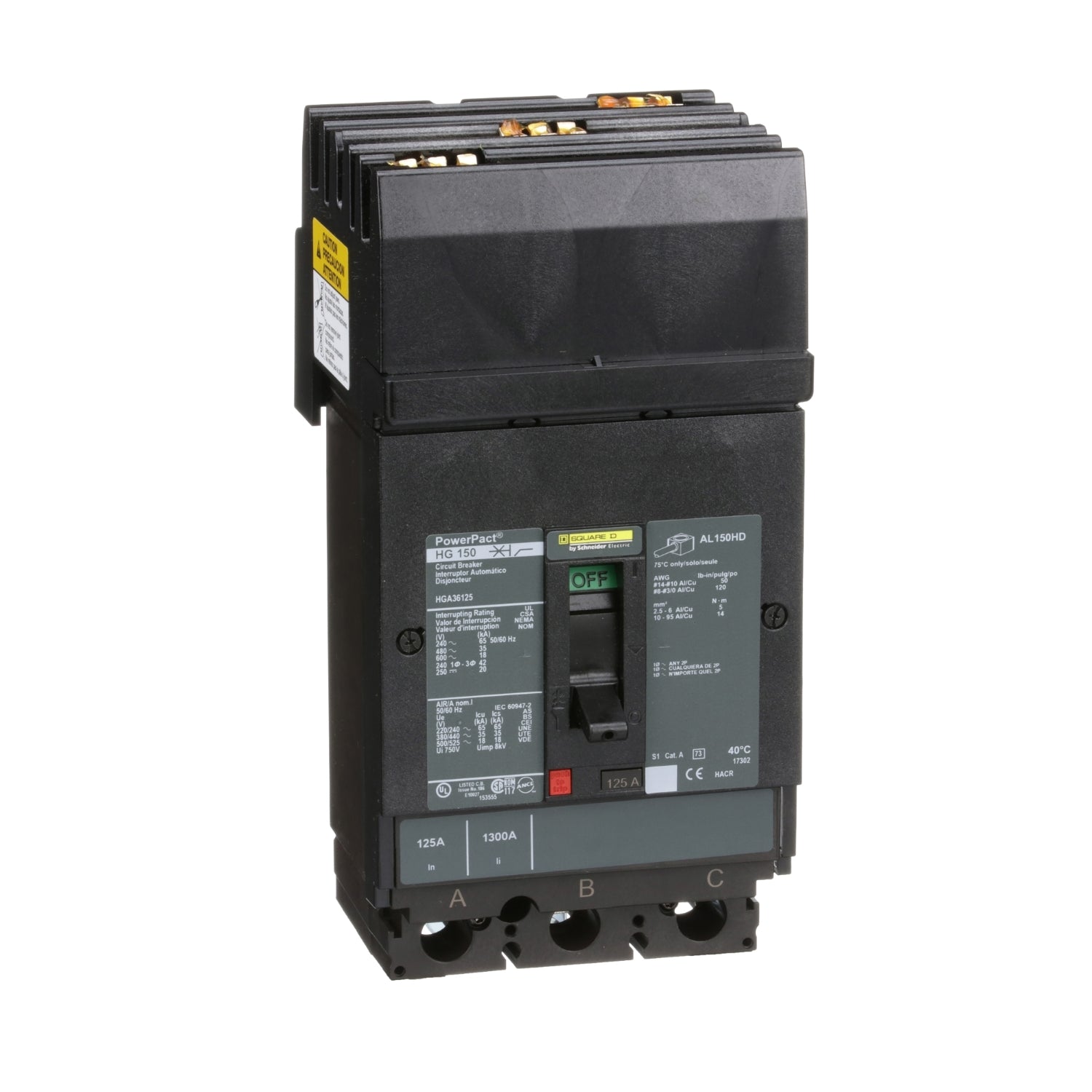

Part #: HGA36125 Manufactured by: Schneider Electric
Regular price
$1,074.00
Sale price
$1,074.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The HGA36125 is a PowerPacT H-Frame circuit breaker, designed to safeguard electrical systems from overloads and short cir...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: HGA36125
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: HGA36125

Description / Specifications

Description

The HGA36125 is a PowerPacT H-Frame circuit breaker designed for electrical system protection against overloads and short circuits. This circuit breaker has a rated current of 125A and operates with three poles at 600VAC. It features a thermal magnetic trip protection unit, offering a breaking capacity of 18kA at 600VAC. The unit ensures effective peak current reduction during short circuit faults through dual-break rotating contacts. The breaker includes an integral push-to-trip button for manual tripping.





Technical Specifications

Part Number

HGA36125

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Line Rated Current

125 A

Number of Poles

3P

Protected Poles Description

3t

Control Type

Toggle

Breaking Capacity Code

G

[Ue] Rated Operational Voltage

690 V AC 50/60 Hz IEC 60947-3

Network Frequency

50/60 Hz

[Uimp] Rated Impulse Withstand Voltage

8 kV IEC 60947-2

Trip Unit Technology

Thermal-magnetic

Magnetic Tripping Current

1700 A

Magnetic Hold Current

900 A

Continuous Current Rating

80 %

[Ui] Rated Insulation Voltage

750 V IEC 60947-2

Suitability for Isolation

Yes IEC 60947-2

Utilization Category

Category A

AWG Gauge

AWG 14...AWG 3/0 aluminum/copper terminal

Local Signalling

Switched off (OFF) 1 trip indicator green

Mounting Mode

I-Line bracket

Mounting Support

Bracket

Electrical Connection

I-Line connection, line

Lugs, Load

Terminal identifier AL150HD

Mounting Height

4.5 in (114.30 mm)

Power Wire Stripping Length

0.63 in (16 mm)

Color

Black

Height

6.42 in (163 mm)

Width

4.09 in (104 mm)

Depth

3.39 in (86 mm)

Net Weight

4.85 lb (2.2 kg)

Quantity per Set

1

Phase Connection

ABC

Communication Interface

Modbus, Ethernet

Circuit Breaker Application

HACR rated

Main Range

PowerPact

Product Name

PowerPact H

Product or Component Type

Circuit breaker

Device Application

Distribution

Breaking Capacity

65 kA 240 V AC 50/60 Hz UL 489, 35 kA 480 V AC 50/60 Hz UL 489, 18 kA 600 V AC 50/60 Hz UL 489

[Ics] Rated Service Breaking Capacity

65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2

Tightening Torque

44.25 lbf.in (5 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10), 123.91 lbf.in (14 N.m) 0.02…0.15 in² (10…95 mm²) (AWG 8...AWG 3/0)

Number of Slots

2 auxiliary switch OF plug-in, 1 alarm switch SD plug-in, 1 overcurrent trip switch SDE plug-in, 1 voltage release MN or MX plug-in

Quality Labels

CE

Standards

UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2

Product Certifications

UL, CSA, NOM

IP Degree of Protection

Front cover IP40 IEC 60529

Pollution Degree

3 IEC 60947-1

Ambient Air Temperature for Operation

-13…158 °F (-25…70 °C)

Ambient Air Temperature for Storage

-58…185 °F (-50…85 °F)

Operating Altitude

< 6561.68 ft (2000 m) without derating, 5000 m with derating





Information About HGA36125

The HGA36125 is a PowerPacT H-Frame circuit breaker designed for the protection of electrical systems against overloads and short circuits. This specific model, part of the PowerPacT H series, is equipped with thermal magnetic trip protection units, offering a breaking capacity of 18kA at 600VAC. The circuit breaker features a 3-pole configuration with a line rated current of 125A and is suitable for ABC phase connection.

PowerPacT H-Frame circuit breakers are engineered with dual-break rotating contacts to minimize peak current during short circuit faults. An integral push-to-trip button is included on the cover, allowing manual tripping of the circuit breaker. This model, the HGA36125, is available in I-Line construction, facilitating straightforward installation and removal in I-Line applications. It has I-Line terminations on the line side and mechanical lugs on the load side, enhancing its adaptability for various installation scenarios.

The HGA36125 circuit breaker supports a continuous current rating of 80%, ensuring reliable performance under sustained electrical load conditions. It complies with multiple international standards, including UL, CSA, NOM, and IEC, and is CE marked, signifying its adherence to stringent safety and performance criteria.
