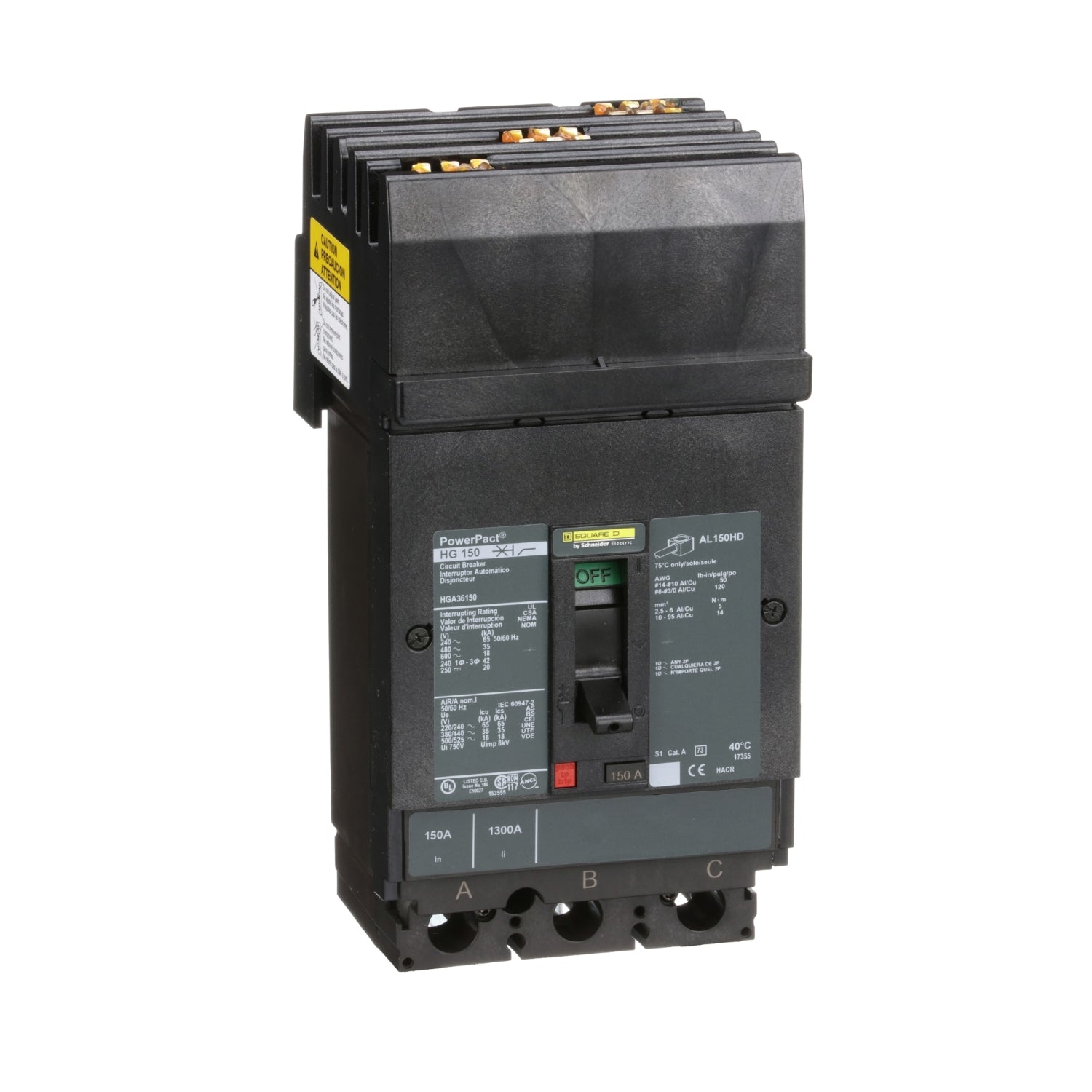

HGA36150 | Schneider Electric Circuit Breaker
- Regular price
- $927.00
- Sale price
- $927.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HGA36150
Description
The Schneider Electric HGA36150 is a 150-amp, three-pole molded case circuit breaker designed for reliable protection in 600V three-phase electrical systems. Part of the PowerPact H-Frame family, it features a thermal-magnetic trip unit with long-time and instantaneous functions. Its I-Line style plug-in connection ensures fast, secure mounting to compatible I-Line panelboards, including support for reverse-fed applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | HGA36150 |
| Subcategory | Molded Case Circuit Breaker |
| Family | PowerPact |
| Type | HGA |
| Voltage Rating | 600 V |
| Amperage Rating | 150 A |
| Phase | 3-Phase |
| Poles | 3 |
| AIC Rating | 35 kA @ 480 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Frame Type | H Frame |
| Connection Type | I-Line Style Plug-In |
| Reverse-Feed Capability | Yes |
| Phase Arrangement | ABC phase connection |
| Certification | UL Listed |
| Application | Industrial and commercial power distribution |
Information About HGA36150
The HGA36150 is part of Schneider Electric’s PowerPact breaker series, engineered for durable, dependable circuit protection in commercial and industrial environments. Built on the H-Frame platform, it supports 150A loads while offering a compact, rugged molded case design suitable for demanding conditions. The breaker integrates seamlessly with I-Line bus systems through its plug-in connection, enabling quick installation or replacement without hardwiring. Featuring thermal-magnetic protection and LI trip functions, the breaker provides stable overload response and instantaneous short-circuit interruption, backed by a 35 kA interrupt rating at 480V. Its UL listing and suitability for reverse-fed configurations expand its applicability in various distribution layouts.
Key Features:
- PowerPact H-Frame construction: Robust molded case design for industrial performance.
- 150A current rating: Supports medium-capacity three-phase loads.
- 600V AC operation: Suitable for a wide range of commercial and industrial distribution systems.
- 35 kA interrupt rating: Provides high fault-current protection at 480V.
- Thermal-magnetic trip unit: Delivers both overload and instantaneous short-circuit protection.
- LI trip functions: Long-time and instantaneous protection settings for precise circuit control.
- I-Line style plug-in connection: Ensures quick, secure attachment to I-Line bus stacks.
- Reverse-feed capable: Approved for installations requiring reverse-fed operation.
- ABC phase connection: Supports standard three-phase arrangements.
- UL listed: Meets safety and performance standards for approved installations.
The HGA36150 delivers the reliability and precision required for protecting industrial and commercial three-phase electrical systems.
