HGL36060 | Schneider Electric Circuit Breaker
- Regular price
- $487.00
- Sale price
- $487.00
- Regular price
-
Do you need help?

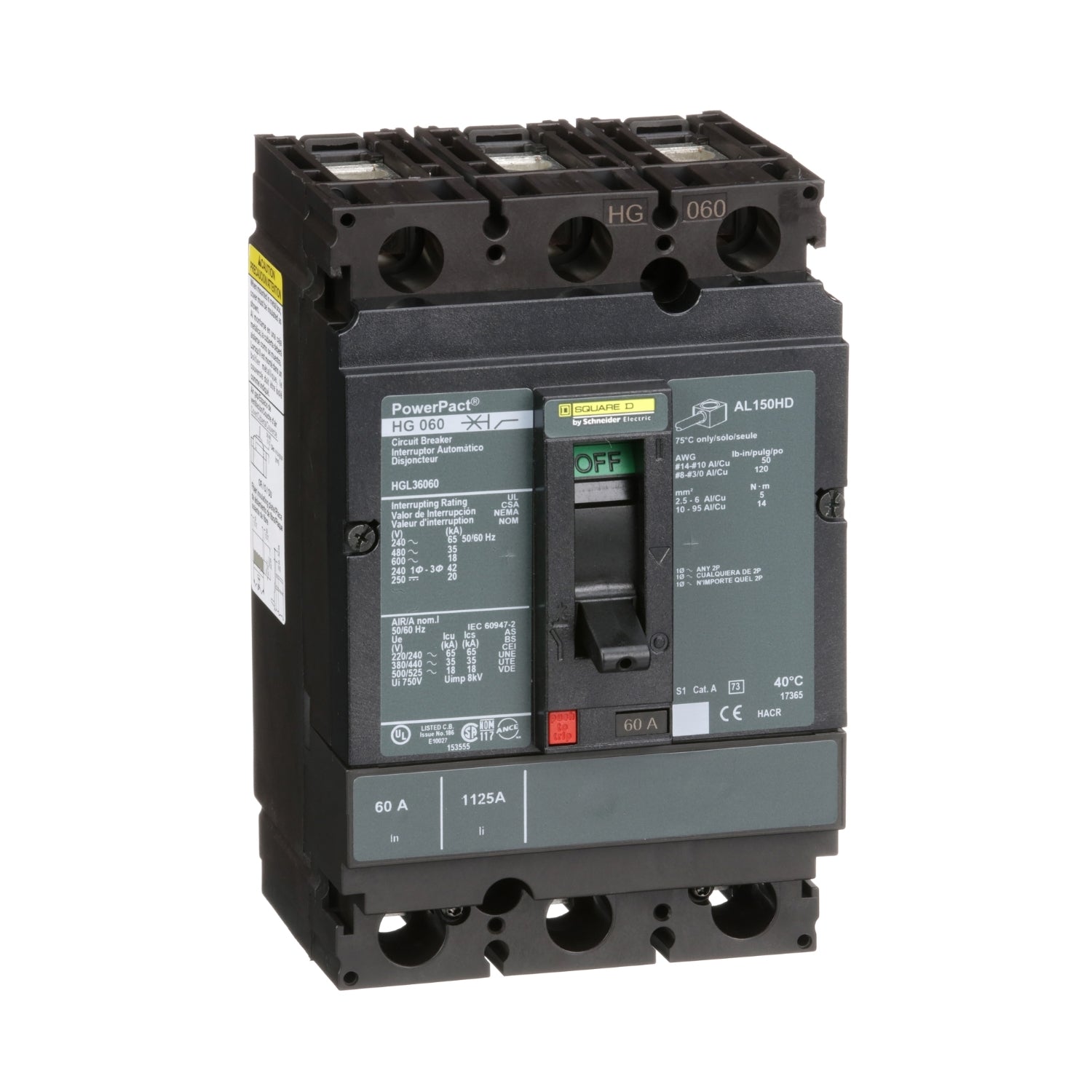

Product Description P/N: HGL36060
Description
The HGL36060 is a PowerPacT H-Frame circuit breaker designed for protecting electrical systems from overloads and short circuits. This 60A, 3-pole breaker operates at 600VAC with a breaking capacity of 18kA. It features thermal magnetic trip protection and is equipped with lugs on both the line and load sides. The breaker includes dual-break rotating contacts to reduce peak current during short circuit faults. It has an integral push-to-trip button for manual operation and a continuous current rating of 80%. Compliant with UL, CSA, NOM, and IEC standards, it is also CE marked.
Technical Specifications
Part # |
HGL36060 |
Category |
Circuit Breaker |
Subcategory |
Molded Case Circuit Breaker |
Line Rated Current |
60 A |
Number of Poles |
3P |
Protected Poles Description |
3t |
Control Type |
Toggle |
Breaking Capacity Code |
G |
[Ue] Rated Operational Voltage |
690 V AC 50/60 Hz IEC 60947-3 |
Network Frequency |
50/60 Hz |
[Uimp] Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
Trip Unit Technology |
Thermal-magnetic |
Magnetic Tripping Current |
1450 A |
Magnetic Hold Current |
800 A |
Continuous Current Rating |
80 % |
[Ui] Rated Insulation Voltage |
750 V IEC 60947-2 |
Suitability for Isolation |
Yes IEC 60947-2 |
Utilisation Category |
Category A |
AWG Gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
Local Signalling |
Switched off (OFF) 1 trip indicator green) |
Mounting Mode |
Unit mount lug) |
Mounting Support |
Lug |
Power Wire Stripping Length |
0.63 in (16 mm) |
Color |
Black |
Height |
6.42 in (163 mm) |
Width |
4.09 in (104 mm) |
Depth |
3.39 in (86 mm) |
Net Weight |
4.85 lb (2.2 kg) |
Quantity per Set |
1 |
IP Degree of Protection |
Front cover IP40 IEC 60529 |
Pollution Degree |
3 IEC 60947-1 |
Ambient Air Temperature for Operation |
-13…158 °F (-25…70 °C) |
Ambient Air Temperature for Storage |
-58…185 °F (-50…85 °C) |
Operating Altitude |
< 6561.68 ft (2000 m) without derating |
Information About HGL36060
The HGL36060 is a PowerPacT H-Frame circuit breaker engineered to safeguard electrical systems from damage resulting from overloads and short circuits. This particular model provides thermal magnetic circuit protection with a breaking capacity of 18kA at a rated operational voltage of 600VAC.
PowerPacT H-Frame circuit breakers are designed with dual-break rotating contacts, which effectively reduce peak current during short circuit faults. This feature enhances the protection of the electrical system by minimizing the potential for damage during fault conditions. Additionally, all PowerPacT circuit breakers are equipped with an integral push-to-trip button located on the cover, allowing for manual tripping of the circuit breaker when necessary.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
The HGL36060 is a PowerPacT H-Frame circuit breaker designed for protecting electrical systems from overloads and short circuits. This 60A, 3-pole breaker operates at 600VAC with a breaking capacity of 18kA. It features thermal magnetic trip protection and is equipped with lugs on both the line and load sides. The breaker includes dual-break rotating contacts to reduce peak current during short circuit faults. It has an integral push-to-trip button for manual operation and a continuous current rating of 80%. Compliant with UL, CSA, NOM, and IEC standards, it is also CE marked.
Technical Specifications
Part # |
HGL36060 |
Category |
Circuit Breaker |
Subcategory |
Molded Case Circuit Breaker |
Line Rated Current |
60 A |
Number of Poles |
3P |
Protected Poles Description |
3t |
Control Type |
Toggle |
Breaking Capacity Code |
G |
[Ue] Rated Operational Voltage |
690 V AC 50/60 Hz IEC 60947-3 |
Network Frequency |
50/60 Hz |
[Uimp] Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
Trip Unit Technology |
Thermal-magnetic |
Magnetic Tripping Current |
1450 A |
Magnetic Hold Current |
800 A |
Continuous Current Rating |
80 % |
[Ui] Rated Insulation Voltage |
750 V IEC 60947-2 |
Suitability for Isolation |
Yes IEC 60947-2 |
Utilisation Category |
Category A |
AWG Gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
Local Signalling |
Switched off (OFF) 1 trip indicator green) |
Mounting Mode |
Unit mount lug) |
Mounting Support |
Lug |
Power Wire Stripping Length |
0.63 in (16 mm) |
Color |
Black |
Height |
6.42 in (163 mm) |
Width |
4.09 in (104 mm) |
Depth |
3.39 in (86 mm) |
Net Weight |
4.85 lb (2.2 kg) |
Quantity per Set |
1 |
IP Degree of Protection |
Front cover IP40 IEC 60529 |
Pollution Degree |
3 IEC 60947-1 |
Ambient Air Temperature for Operation |
-13…158 °F (-25…70 °C) |
Ambient Air Temperature for Storage |
-58…185 °F (-50…85 °C) |
Operating Altitude |
< 6561.68 ft (2000 m) without derating |
Information About HGL36060
The HGL36060 is a PowerPacT H-Frame circuit breaker engineered to safeguard electrical systems from damage resulting from overloads and short circuits. This particular model provides thermal magnetic circuit protection with a breaking capacity of 18kA at a rated operational voltage of 600VAC.
PowerPacT H-Frame circuit breakers are designed with dual-break rotating contacts, which effectively reduce peak current during short circuit faults. This feature enhances the protection of the electrical system by minimizing the potential for damage during fault conditions. Additionally, all PowerPacT circuit breakers are equipped with an integral push-to-trip button located on the cover, allowing for manual tripping of the circuit breaker when necessary.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
