HGL36125 | Schneider Electric Circuit Breaker
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

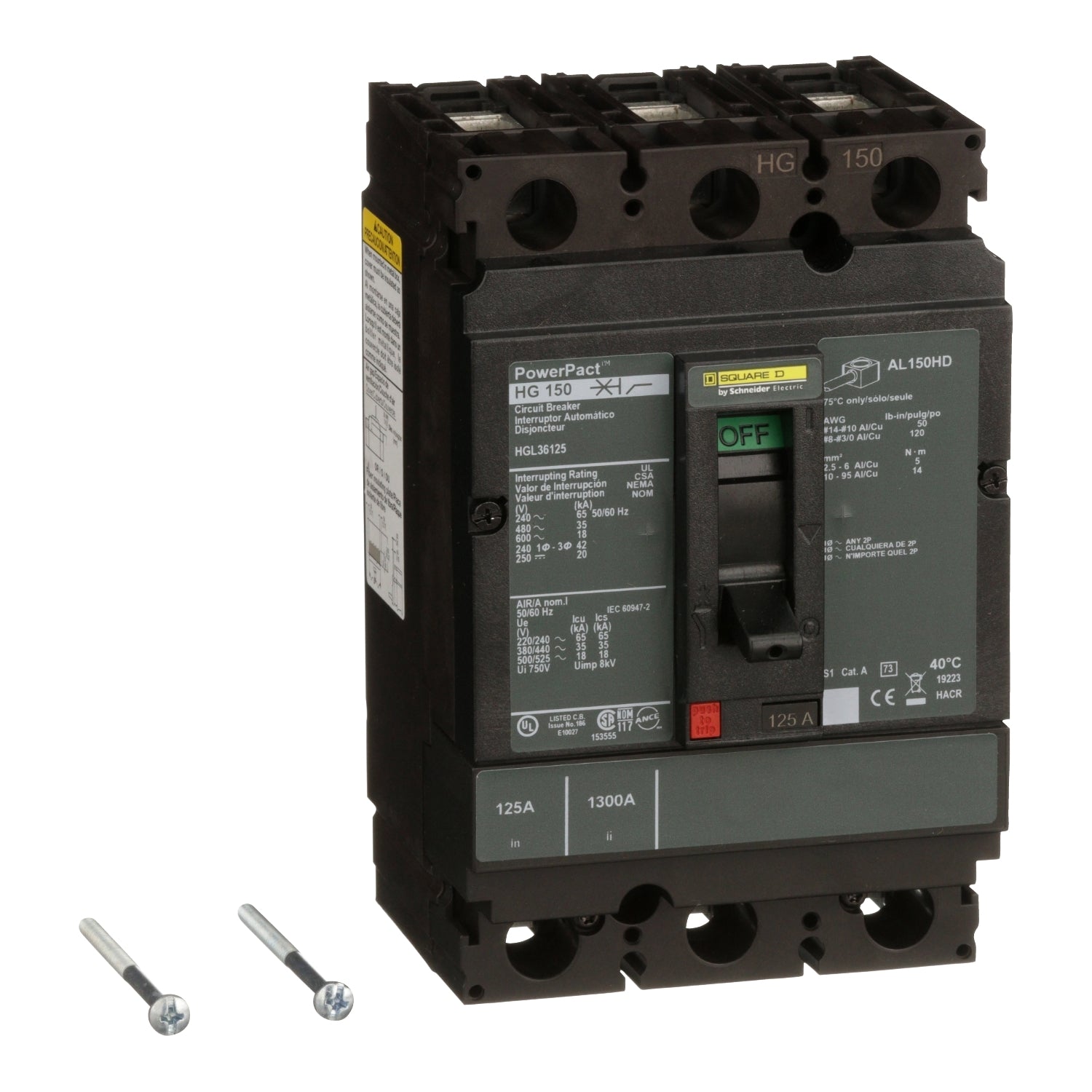

Product Description P/N: HGL36125
Description
The HGL36125 is a 3-pole Circuit Breaker from the PowerPact H series by Schneider Electric, designed to protect electrical systems from overloads and short circuits. It features thermal magnetic circuit protection and operates at a maximum voltage of 600VAC with an 18,000 ampere breaking capacity (18kA).
Technical Specifications
|
Part # |
HGL36125 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
125 A |
|
Number of Poles |
3P |
|
Protected Poles Description |
3t |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
G |
|
Rated Operational Voltage [Ue] |
690 V AC 50/60 Hz |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage [Uimp] |
8 kV |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
1700 A |
|
Magnetic Hold Current |
900 A |
|
Continuous Current Rating |
80 % |
|
Rated Insulation Voltage [Ui] |
750 V |
|
Suitability for Isolation |
Yes |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
|
Local Signalling |
Switched off (OFF) 1 trip indicator (green) |
|
Mounting Mode |
Unit mount (lug) |
|
Power Wire Stripping Length |
0.63 in (16 mm) |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb (2.2 kg) |
Information About HGL36125
The HGL36125 is a circuit breaker belonging to the PowerPact H series by Schneider Electric, engineered to safeguard electrical systems against overloads and short circuits. These H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units, providing versatile options for different application requirements.
Specifically, the HGL36125 features thermal magnetic circuit protection with a robust breaking capacity of 18,000 amps at 600VAC, ensuring effective protection against electrical faults. It is equipped with dual-break rotating contacts that minimize peak current during short circuit events, thereby enhancing operational safety and reliability.
An integral push-to-trip button located on the cover allows for manual tripping of the circuit breaker, facilitating maintenance and troubleshooting procedures. The HGL36125 model is configured as a 3-pole unit with lugs on both the line and load sides, ensuring secure electrical connections in distribution systems.
PowerPact H circuit breakers are available in both unit mount and I-Line constructions, catering to various installation preferences. This particular model, rated at 125A, maintains a continuous current rating of 80%, meeting operational demands across diverse industrial and commercial settings.
