Product Description P/N: HGL36150
Description

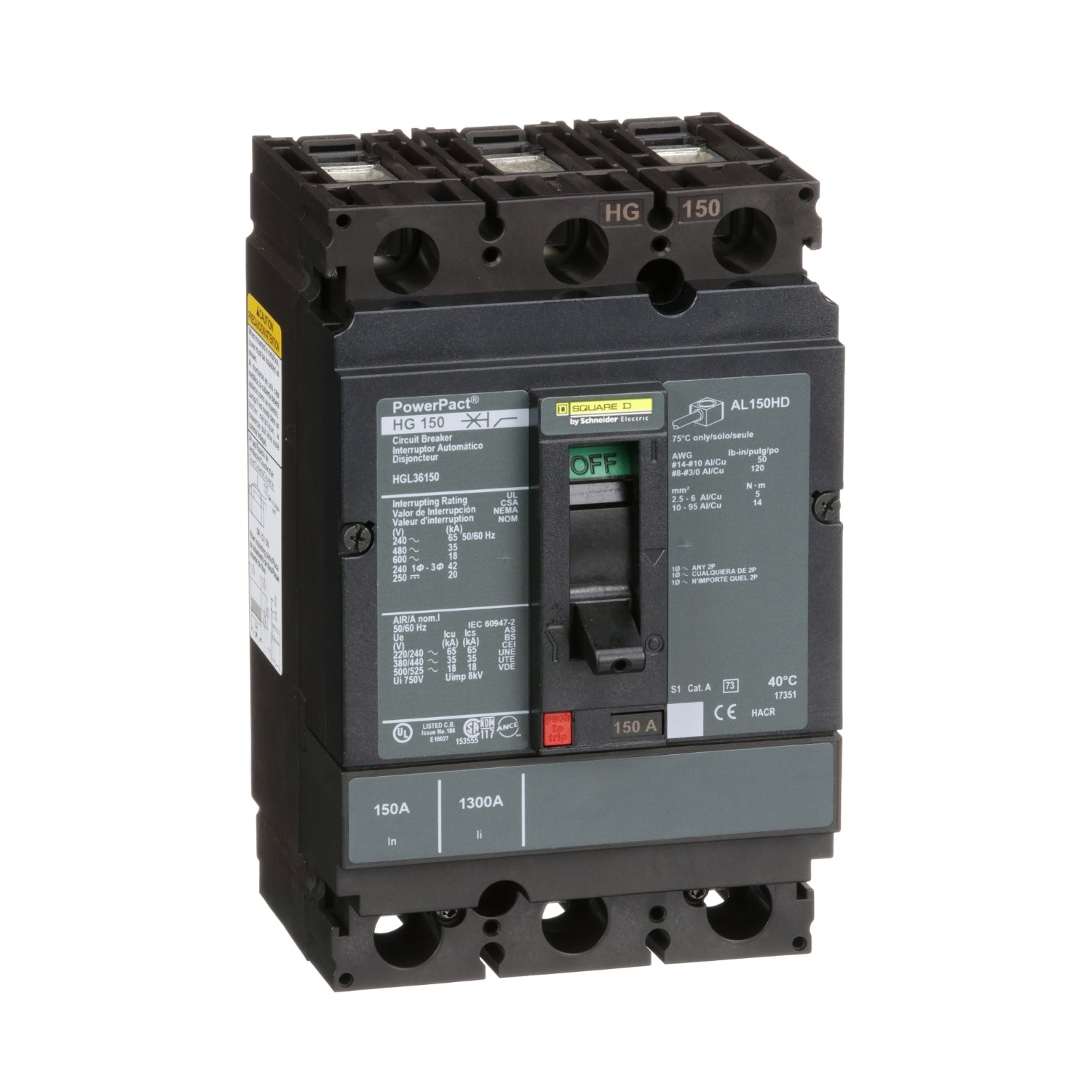

The HGL36150 is a PowerPacT H-Frame circuit breaker designed to safeguard electrical systems from overloads and short circuits. Available with either thermal magnetic or Micrologic electronic trip units, this breaker provides thermal magnetic circuit protection with an 18kA breaking capacity at 600VAC. Featuring dual-break rotating contacts, it effectively reduces peak current during short circuit faults. The breaker includes an integral push-to-trip button for manual tripping.
PowerPacT H circuit breakers are versatile, offered in both 2 and 3-pole configurations and available in unit mount and I-Line constructions. The HGL36150 model is specifically a 150A, 3-pole variant, equipped with lugs on both line and load sides for efficient connection. It maintains a continuous current rating of 80%.
Technical Specifications
|
Part # |
HGL36150 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
150 A |
|
Number of Poles |
3P |
|
Protected poles description |
3t |
|
Control Type |
Toggle |
|
Breaking capacity code |
G |
|
[Ue] rated operational voltage |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
1700 A |
|
Magnetic hold current |
900 A |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
|
Local signalling |
Switched off (OFF) 1 trip indicator green) |
|
Mounting mode |
Unit mount lug |
|
Mounting Support |
Lug |
|
Power wire stripping length |
0.63 in (16 mm) |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb(US) (2.2 kg) |
Information About HGL36150
The HGL36150 PowerPacT H-Frame circuit breaker is designed to safeguard electrical systems from potential damage arising from overloads and short circuits. Available with thermal magnetic or Micrologic electronic trip protection units, this circuit breaker ensures robust protection. It features a thermal magnetic trip unit that offers circuit protection by interrupting currents when necessary, with a high breaking capacity of 18kA at 600VAC, suitable for handling substantial fault currents.
Equipped with dual-break rotating contacts, the HGL36150 reduces peak current during short circuit events, thereby enhancing operational safety. Additionally, it includes an integral push-to-trip button on the cover for manual circuit interruption when required.
The PowerPacT H circuit breakers, including the HGL36150, are versatile and can be configured in both 2 and 3-pole unit mount as well as I-Line constructions, accommodating various installation needs. Featuring lugs on both line and load sides, this 150A, 3-pole circuit breaker supports secure electrical connections.
