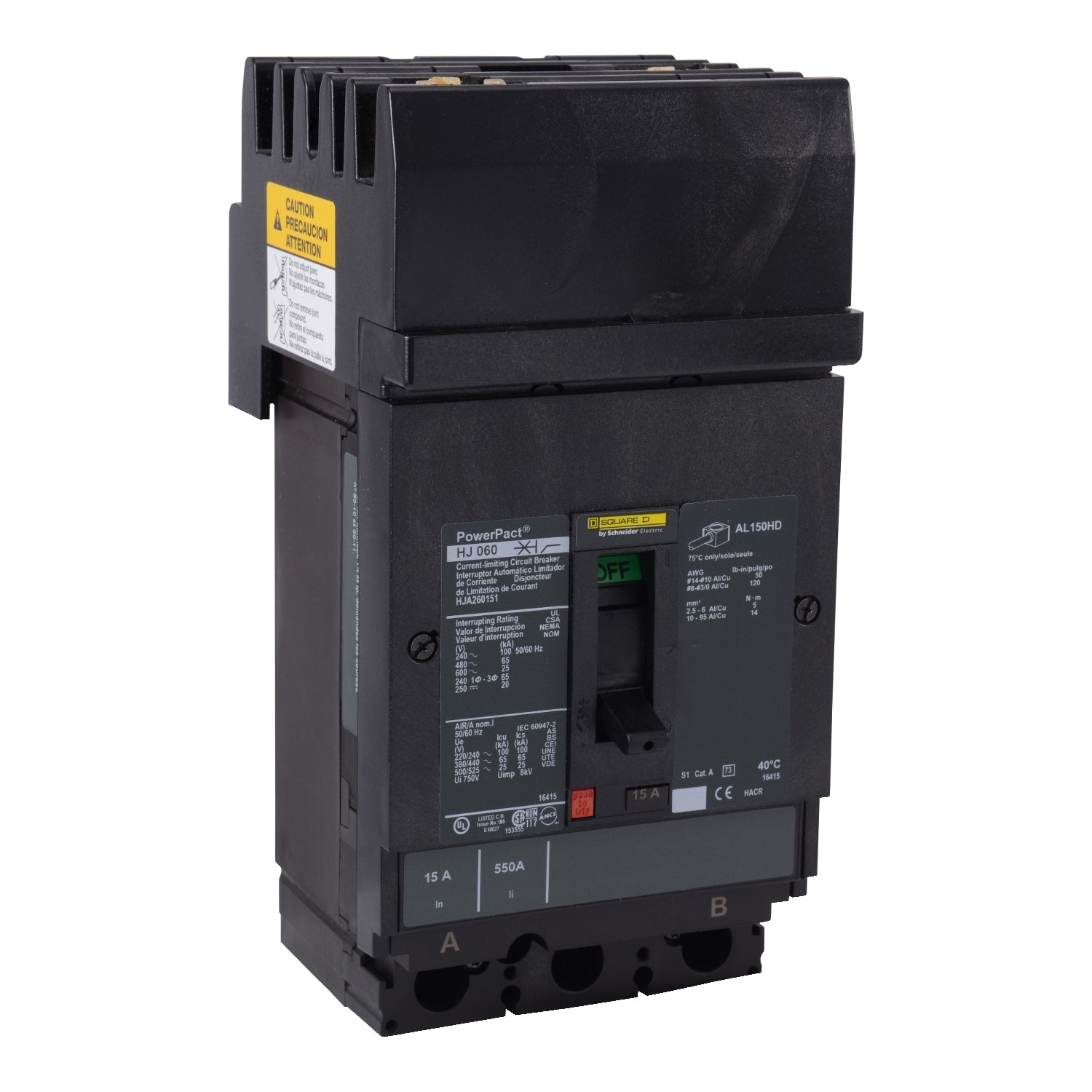

HJA260602 | Square D 60A 2-Pole PowerPacT H-Frame Thermal Magnetic Circuit Breaker
- Regular price
- $1,088.00
- Sale price
- $1,088.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HJA260602
Description
The Square D HJA260602 circuit breaker by Schneider Electric is a 2-pole, thermal magnetic PowerPacT H-frame breaker designed for dependable overload and short-circuit protection in electrical distribution systems. With a rated current of 60A and an interrupting capacity of 25kA at 600VAC, this model ensures safe operation in industrial and commercial applications requiring precise and durable circuit protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D / Schneider Electric |
| Category | Circuit Protection |
| Part Number | HJA260602 |
| Subcategory | Molded Case Circuit Breaker |
| Series | PowerPacT H |
| Frame Type | H-Frame |
| Amperage Rating | 60A |
| Voltage Rating | 600 VAC |
| Interrupting Capacity | 25kA at 600VAC, 65kA at 480VAC |
| Trip Unit Type | Thermal-Magnetic |
| Poles | 2 |
| Mounting Type | I-Line Bracket |
| Connection Type | I-Line (line side), Mechanical Lug (load side) |
| Wire Size Range | AWG 14–3/0 (Cu/Al) |
| Insulation Voltage (Ui) | 750V IEC 60947-2 |
| Impulse Withstand Voltage (Uimp) | 8kV IEC 60947-2 |
| Operating Frequency | 50/60 Hz |
| Certifications | UL, CSA, NOM, CE, IEC |
| Protection Degree | IP40 (front cover) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -50°C to +85°C |

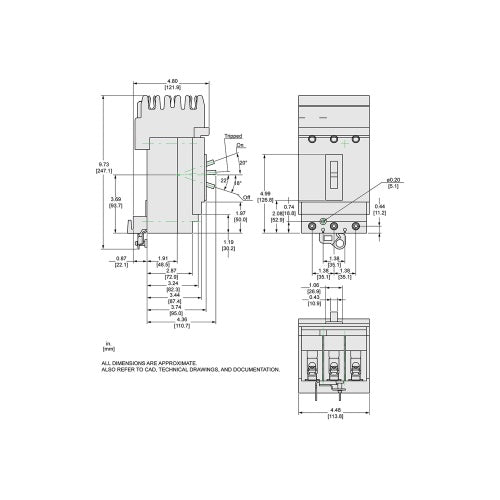

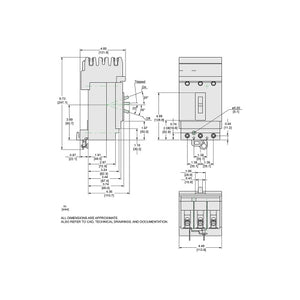

| Dimensions (H x W x D) | 6.4 in x 4.09 in x 3.4 in |
| Weight | 2.2 kg (4.9 lb) |
Information About HJA260602
The HJA260602 is part of Schneider Electric’s PowerPacT H-frame series, known for its high performance, compact design, and reliable protection capabilities. It features a thermal-magnetic trip unit providing both long-time and instantaneous trip functions for versatile protection. The breaker includes I-Line plug-in connections on the line side and mechanical lugs on the load side, ensuring easy installation and secure connectivity in panelboard systems. Designed to comply with UL, CSA, NOM, and IEC standards, it’s suitable for use in industrial environments requiring compliance with global safety certifications.
Key Features:
- Rated Current: 60 Amps — Ensures stable power distribution for medium-load systems.
- Voltage Rating: 600 VAC — Suitable for a wide range of industrial and commercial applications.
- Interrupting Capacity: 25kA at 600VAC — Provides reliable fault interruption and system protection.
- Trip Unit Type: Thermal-Magnetic — Offers long-time and instantaneous trip functions for overload and short-circuit protection.
- Connection Type: I-Line Plug-In — Enables quick installation and removal in I-Line panelboards.
- Poles: 2-Pole Configuration — Supports balanced power distribution across two circuits.
- Certifications: UL, CSA, NOM, IEC, CE — Ensures compliance with international safety and performance standards.
- Operating Temperature: -25°C to +70°C — Designed for reliable operation in diverse environmental conditions.
The HJA260602 delivers the reliability and precision required for efficient electrical distribution and circuit protection in industrial and commercial installations.
