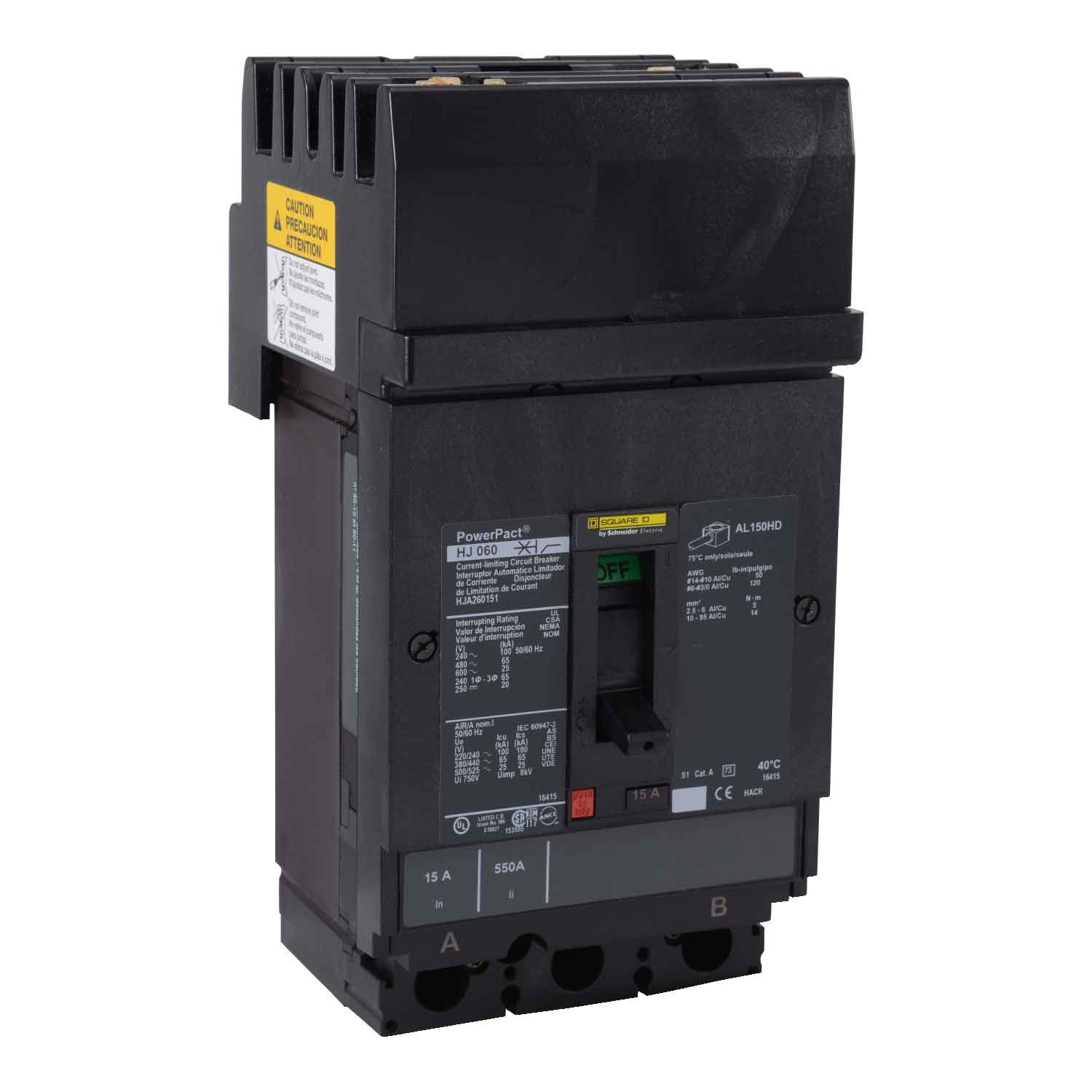

HJA260702 | Schneider Electric Square D 70A 2-Pole 600VAC PowerPact H Molded Case Circuit Breaker
- Regular price
- $2,215.00
- Sale price
- $2,215.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HJA260702
Description
The Schneider Electric Square D HJA260702 is a 2-pole PowerPact H-frame molded case circuit breaker engineered to provide dependable protection against overloads and short circuits. Rated for 70A and 600VAC, it offers a breaking capacity of up to 25kA at 600VAC and features thermal-magnetic trip technology for precise circuit protection. Designed for commercial and industrial distribution systems, the HJA260702 ensures efficient performance and easy integration with I-Line panelboards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric / Square D |
| Category | Circuit Breakers |
| Part Number | HJA260702 |
| Subcategory | Molded Case Circuit Breakers |
| Series | PowerPact H-Frame |
| Frame Type | H |
| Amperage Rating | 70A |
| Voltage Rating | 600VAC / 250VDC |
| Interrupting Capacity | 100kA @ 240VAC / 65kA @ 480VAC / 25kA @ 600VAC / 20kA @ 250VDC |
| Trip Unit Type | Thermal-Magnetic |
| Poles | 2 |
| Phase | Single-Phase |
| Connection Type | I-Line Plug-In (Line), Mechanical Lugs (Load) |
| Wire Range | AWG 14–3/0 Aluminum/Copper |
| Rated Frequency | 50/60 Hz |
| Operating Temperature | -13°F to 158°F (-25°C to 70°C) |
| Insulation Voltage (Ui) | 750V |
| Impulse Withstand Voltage (Uimp) | 8kV |
| Mounting Type | I-Line Panel Mount |
| Compliance Standards | UL, CSA, NOM, IEC, CE |
| Protection Type | Overload and Short Circuit |
| Enclosure Protection | IP40 (Front Cover) |
| Dimensions (HxWxD) | 6.4 x 4.09 x 3.4 in (163 x 104 x 86 mm) |
| Weight | 4.9 lb (2.2 kg) |
Information About HJA260702
The HJA260702 is part of Schneider Electric’s PowerPact H-frame series, known for its compact design and high interrupting performance. Built with dual-break rotating contacts, it minimizes peak current during faults, enhancing equipment safety and system reliability. The breaker uses an I-Line plug-in connection on the line side and mechanical lugs on the load side, simplifying installation and maintenance in panelboard applications. Certified under UL, CSA, NOM, and IEC standards, the HJA260702 provides consistent protection for low-voltage power distribution systems in demanding environments.
Key Features:
- Thermal-Magnetic Trip Unit: Provides long-time and instantaneous trip protection against overloads and short circuits.
- High Interrupting Capacity: Rated up to 100kA at 240VAC and 25kA at 600VAC for reliable fault interruption.
- Compact H-Frame Design: Optimized for space-saving installation in I-Line panels and switchboards.
- Dual-Break Contact System: Reduces peak let-through current for improved equipment safety.
- Wide Operating Temperature Range: Functions reliably from -25°C to 70°C (-13°F to 158°F).
- Global Standards Compliance: UL 489, CSA, NOM, IEC 60947-2, and CE certifications ensure worldwide usability.
- Versatile Wire Compatibility: Supports AWG 14 to AWG 3/0 aluminum or copper conductors.
- Front-Mounted Controls: Includes toggle actuator and push-to-trip button for convenient operation.
The HJA260702 delivers the reliability and precision required for safe, high-performance electrical distribution and protection in commercial and industrial systems.
