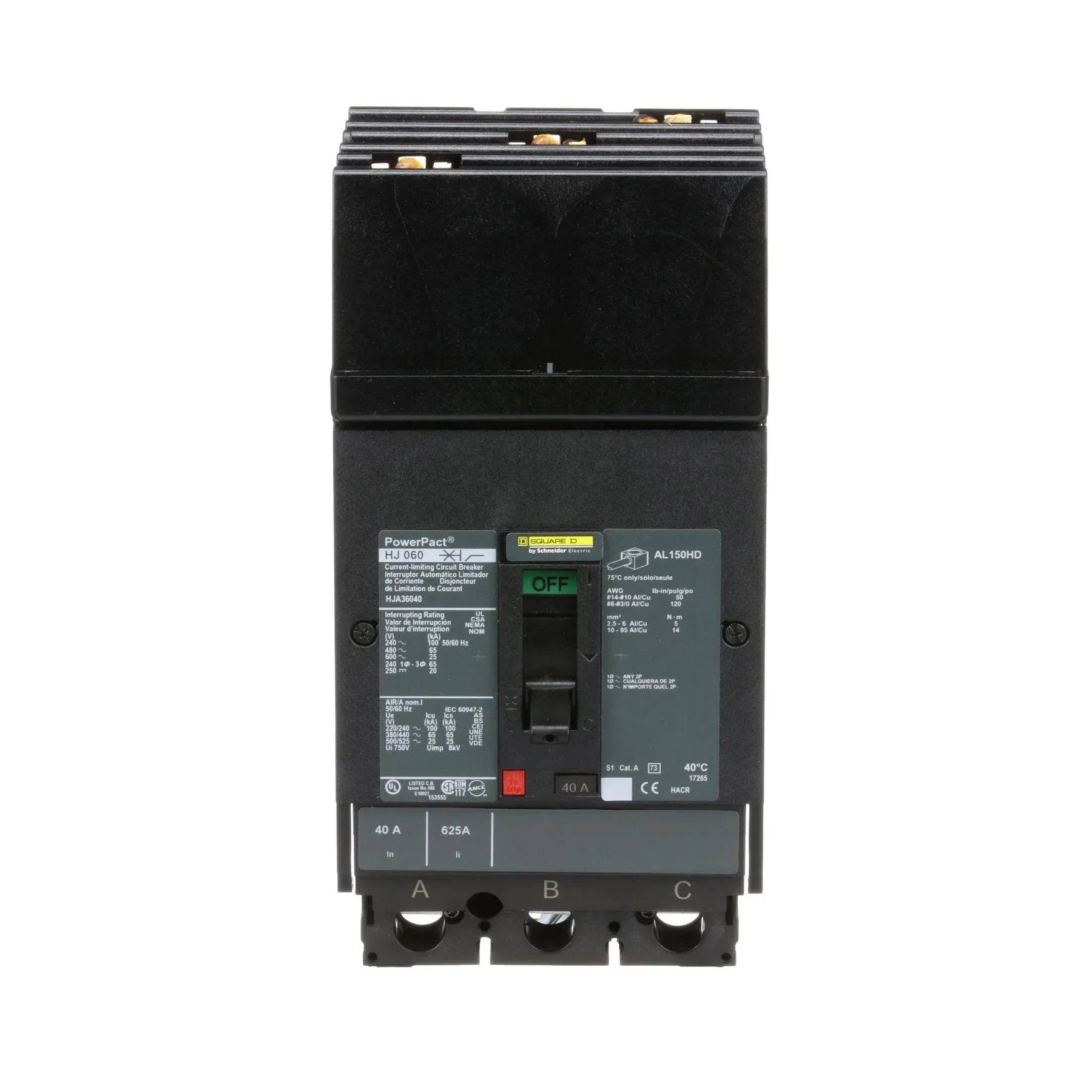

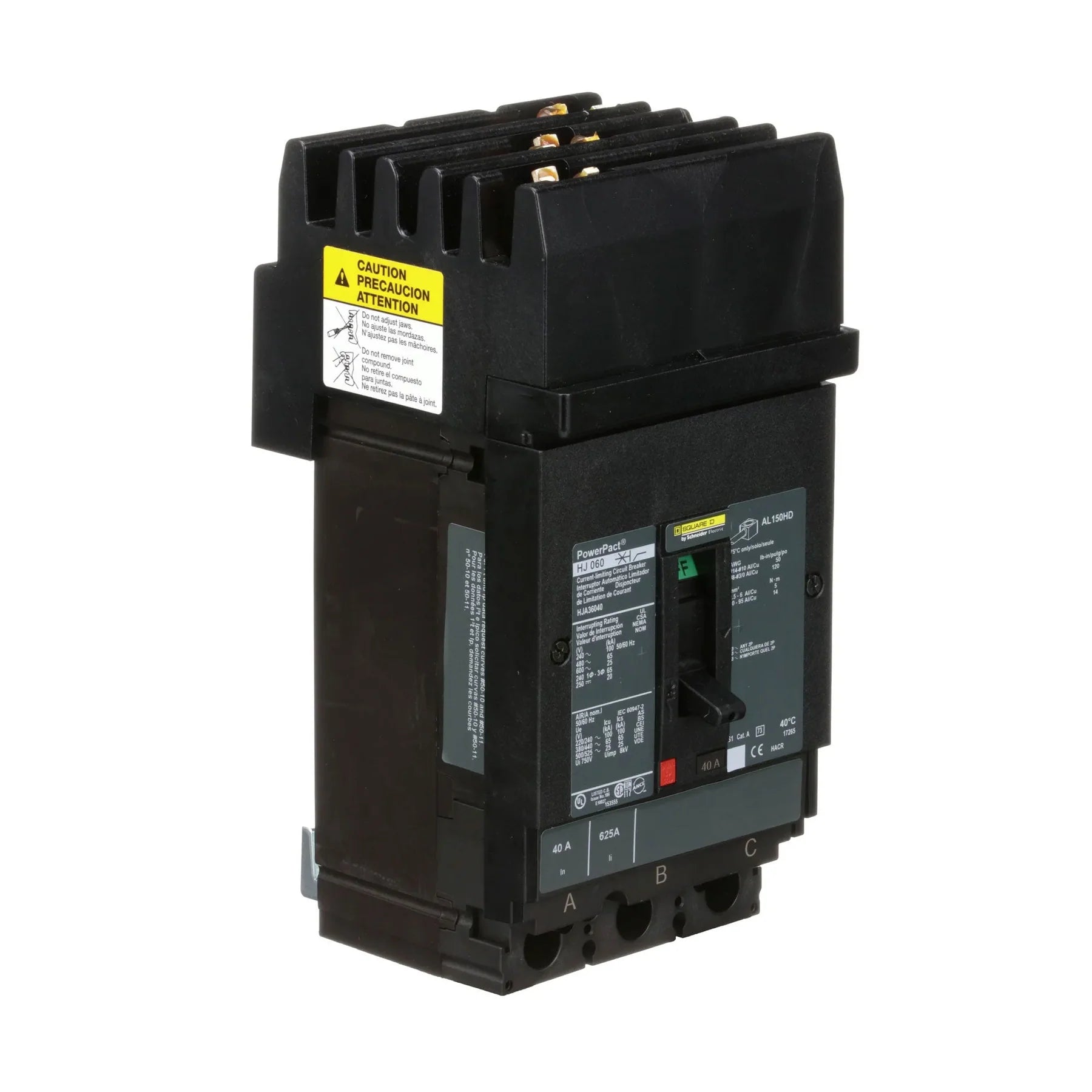

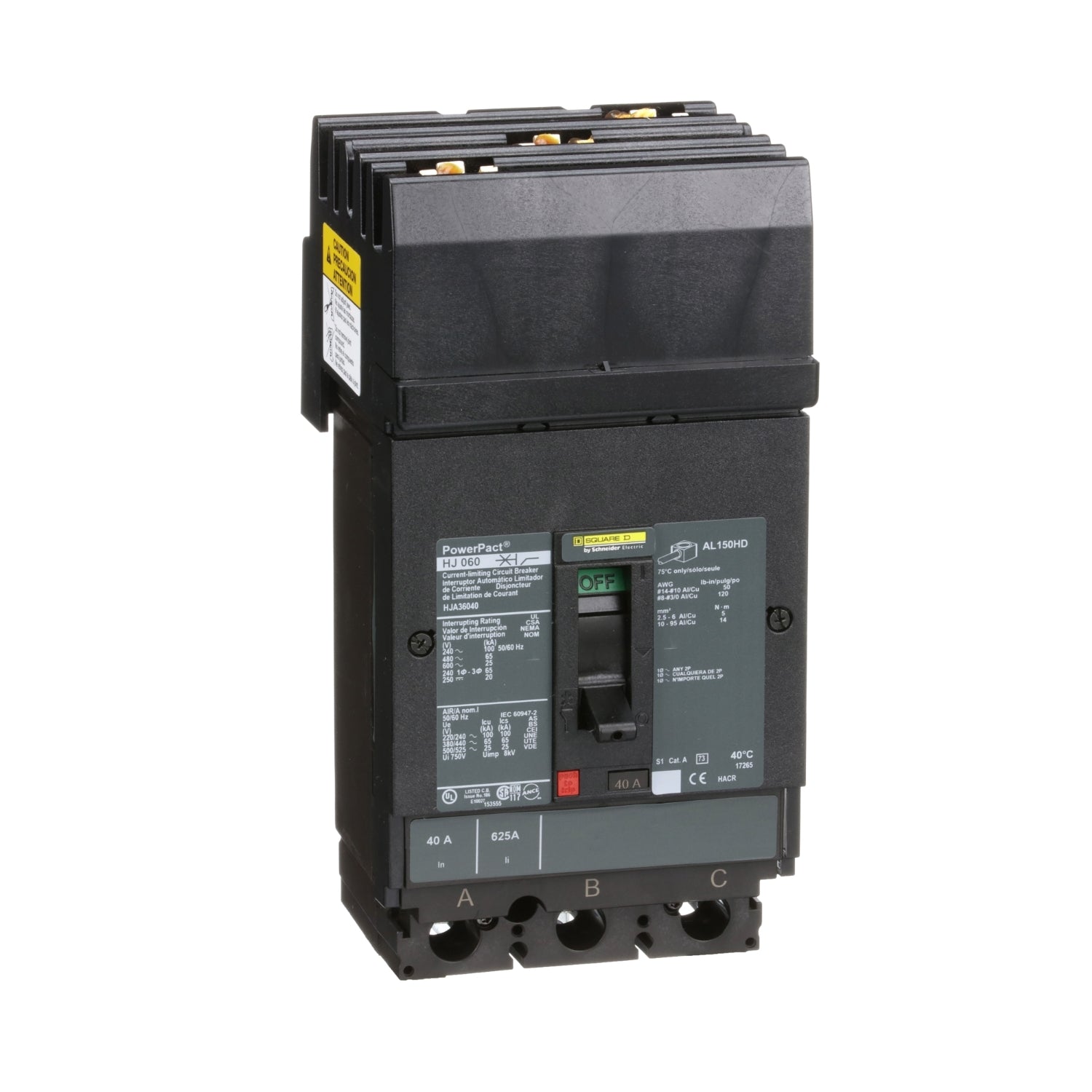

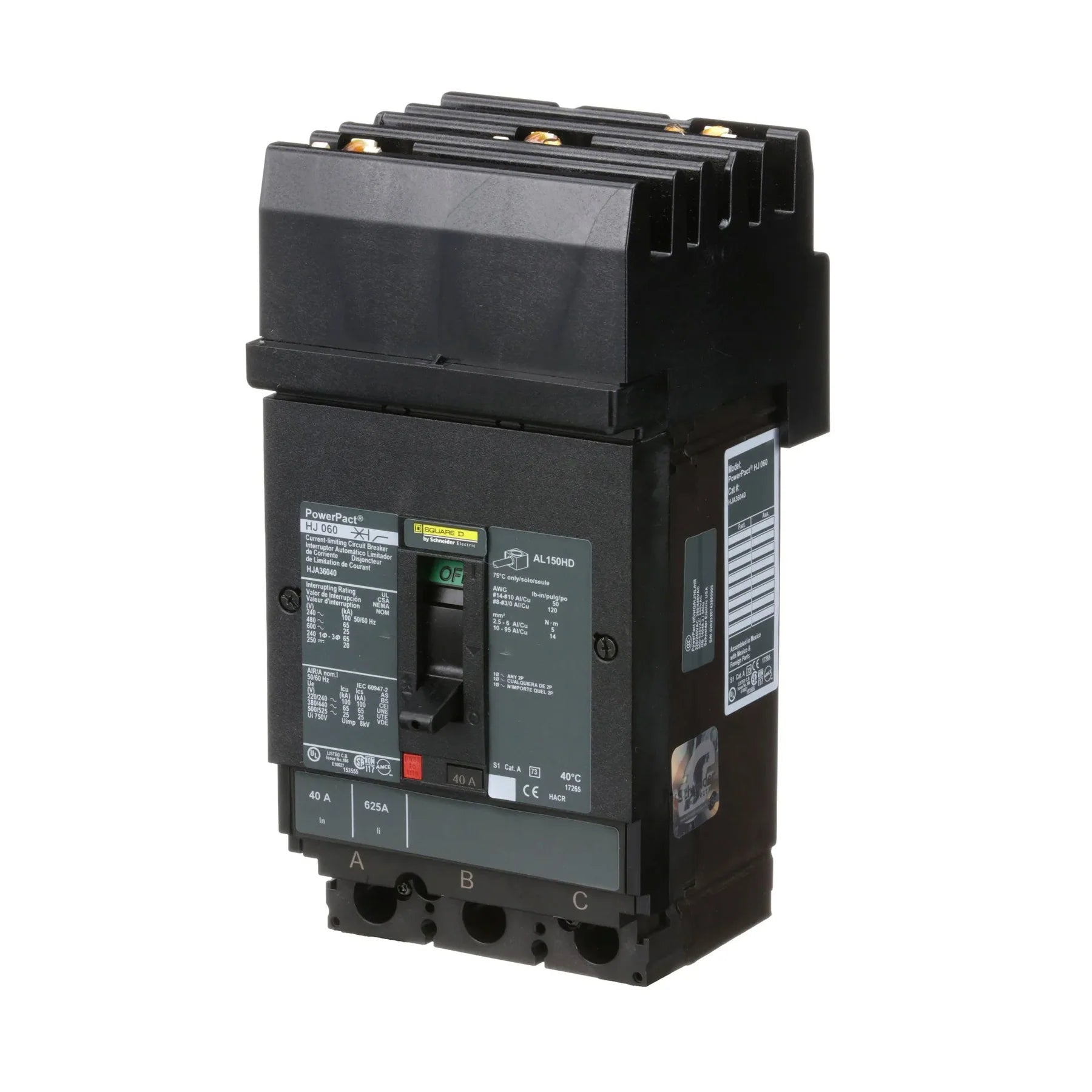

HJA36040 | Schneider Electric Circuit Breaker
- Regular price
- $792.00
- Sale price
- $792.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HJA36040
Description
The HJA36040 PowerPacT H-Frame circuit breaker by Schneider Electric provides essential protection for electrical systems against overloads and short circuits. Featuring a thermal magnetic trip unit, it offers a substantial breaking capacity of 25kA at 600VAC, ensuring reliable circuit protection in industrial environments.
Technical Specifications
|
Part Number |
HJA36040 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker Range |
|
Product Name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
40 A |
|
Number of Poles |
3P |
|
Protected Poles Description |
3t |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
J |
|
Rated Operational Voltage [Ue] |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage [Uimp] |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
850 A |
|
Magnetic Hold Current |
400 A |
|
Continuous Current Rating |
80 % |
|
Rated Insulation Voltage [Ui] |
750 V IEC 60947-2 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
|
Local Signalling |
Switched off (OFF) 1 trip indicator green) |
|
Mounting Mode |
I-Line bracket) |
|
Mounting Support |
Bracket |
Information About HJA36040
The HJA36040 circuit breaker, part of the PowerPacT H series by Schneider Electric, is engineered to safeguard electrical systems against damage from overloads and short circuits. Available with either thermal magnetic or Micrologic electronic trip protection units, the PowerPacT H-Frame circuit breakers offer robust thermal magnetic circuit protection with a substantial breaking capacity of 25kA at 600VAC. This ensures reliable performance under demanding electrical conditions.
Each PowerPacT H-Frame breaker features dual-break rotating contacts, which effectively reduce peak current during short circuit faults, thereby enhancing operational safety. Additionally, all models include an integral push-to-trip button integrated into the cover, allowing for manual tripping of the circuit breaker as needed.
Designed for versatility, PowerPacT H circuit breakers are offered in both 2-pole and 3-pole unit mount configurations, as well as in I-Line constructions. The I-Line variant facilitates straightforward installation and removal in I-Line applications, leveraging I-Line terminations on the line side and mechanical lugs on the load side for efficient connectivity.
