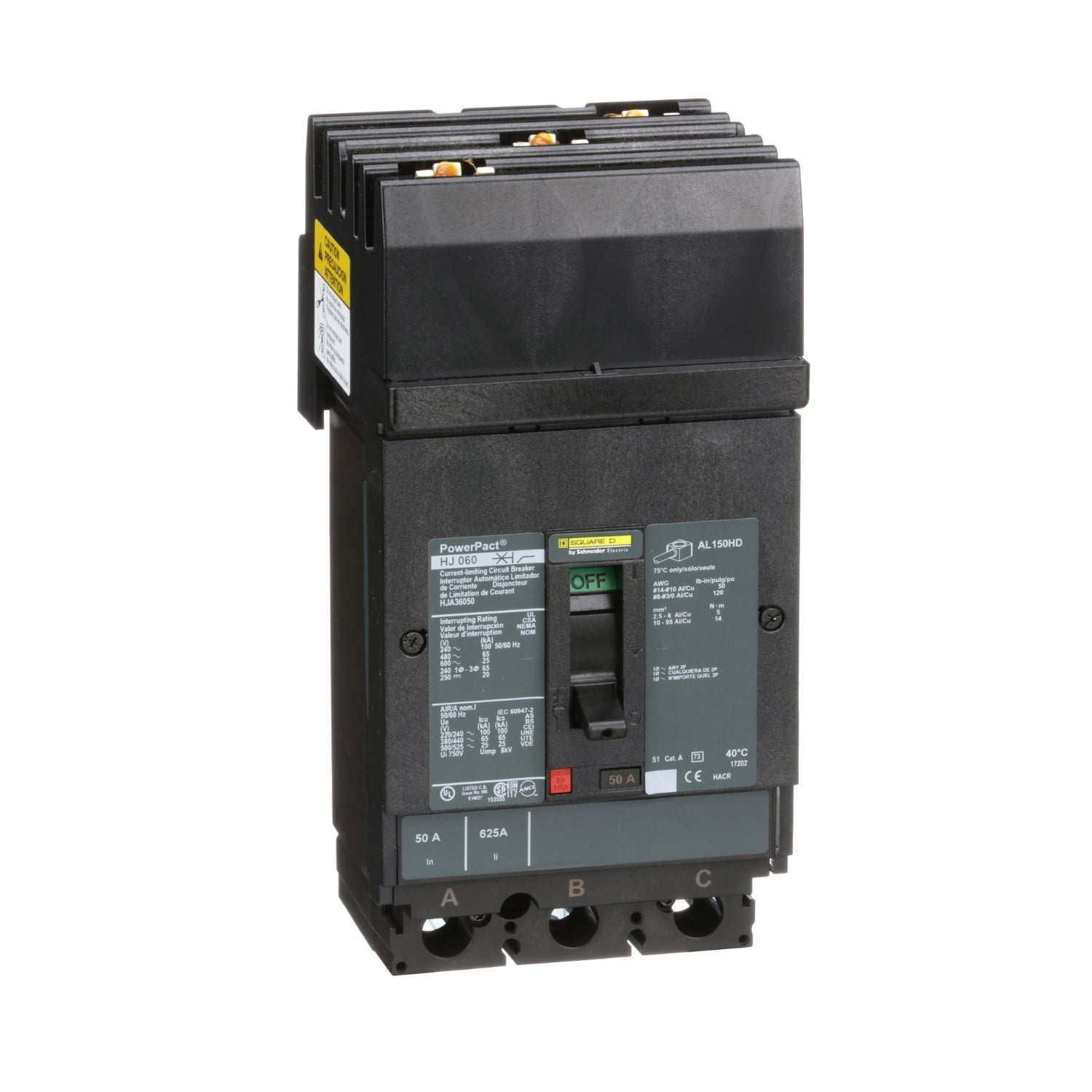

Product Description P/N: HJA36050
Description
The HJA36050 circuit breaker from PowerPacT H-Frame series is engineered to safeguard electrical systems against overloads and short circuits. Available with thermal magnetic technology, it features a robust breaking capacity of 25kA at 600VAC, ensuring efficient circuit protection. Equipped with dual-break rotating contacts, it effectively manages peak currents during short circuit faults. The breaker includes an integral push-to-trip button for manual tripping convenience.
Technical Specifications
|
Part # |
HJA36050 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker Range |
|
Product name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
50 A |
|
Number of Poles |
3P |
|
Protected poles description |
3t |
|
Control Type |
Toggle |
|
Breaking capacity code |
J |
|
Rated Operational Voltage [Ue] |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage [Uimp] |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
850 A |
|
Magnetic Hold Current |
400 A |
|
Continuous Current Rating |
80 % |
|
Rated Insulation Voltage [Ui] |
750 V IEC 60947-2 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
|
Local Signalling |
Switched off (OFF) 1 trip indicator green) |
|
Mounting Mode |
I-Line bracket |
|
Mounting Support |
Bracket |
|
Electrical Connection |
I-Line connection, line; Lugs, load |
|
Terminal Identifier |
AL150HD |
|
Mounting Height |
4.5 in (114.30 mm) |
|
Power Wire Stripping Length |
0.63 in (16 mm) |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb(US) (2.2 kg) |
Information About HJA36050
The HJA36050 is a robust circuit breaker belonging to the PowerPacT H-Frame series, designed explicitly to safeguard electrical systems from potential damage due to overloads and short circuits. These circuit breakers are equipped with thermal magnetic technology, ensuring reliable circuit protection with a substantial breaking capacity of 25kA at 600VAC. The inclusion of dual-break rotating contacts effectively mitigates peak currents during short circuit faults, enhancing operational safety.
Featuring an integral push-to-trip button located on the cover, the HJA36050 allows for manual tripping without exposure to live parts, facilitating maintenance and troubleshooting procedures. Available in both 2 and 3-pole configurations, as well as I-Line construction, these breakers cater to diverse installation requirements, offering flexibility and ease of integration into electrical systems.
Specifically, the HJA36050 is a 3-pole circuit breaker rated at 50A with I-Line terminations on the line side and mechanical lugs on the load side. Its continuous current rating of 80% ensures stable and efficient performance under normal operating conditions, complemented by an ABC phase connection for streamlined electrical distribution.
