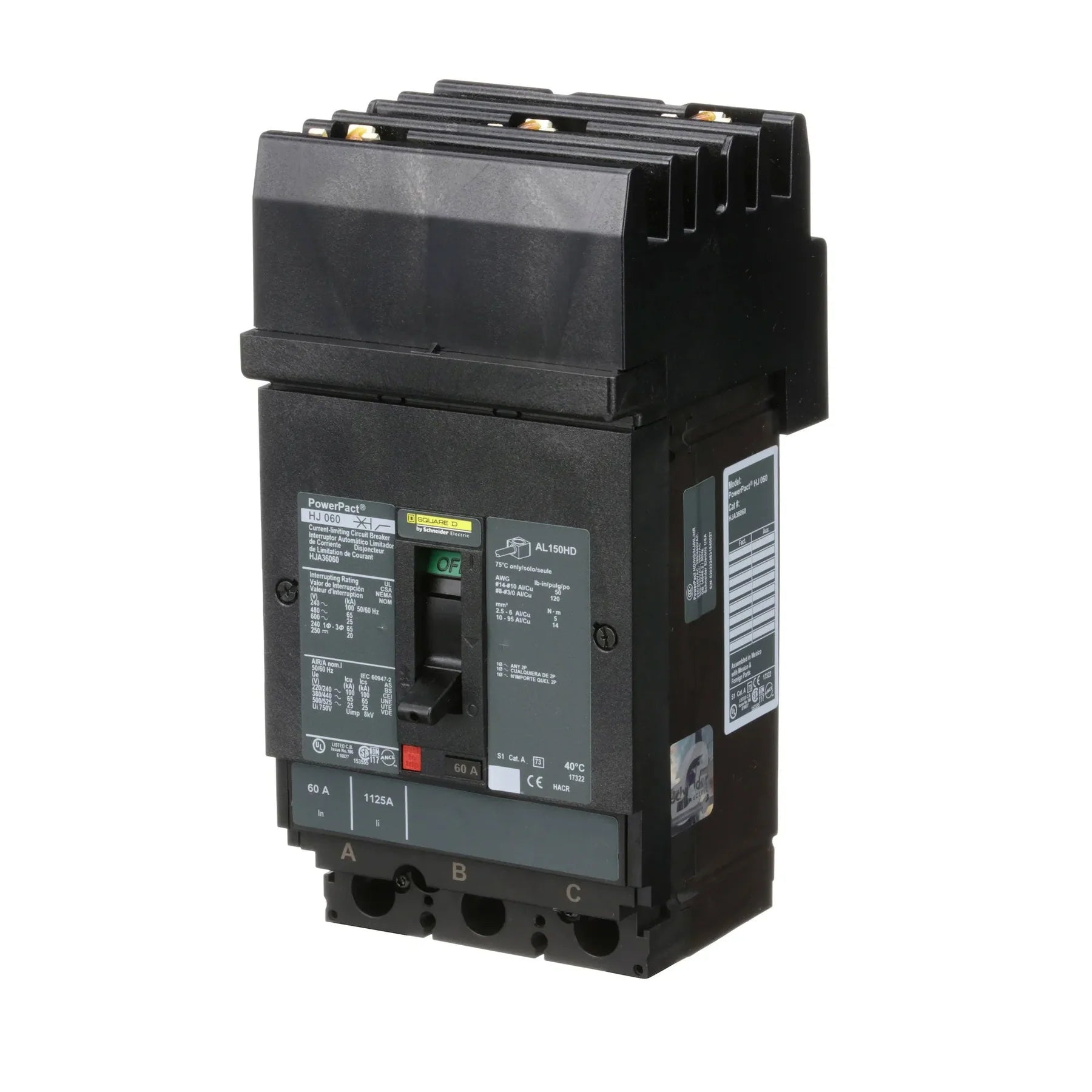

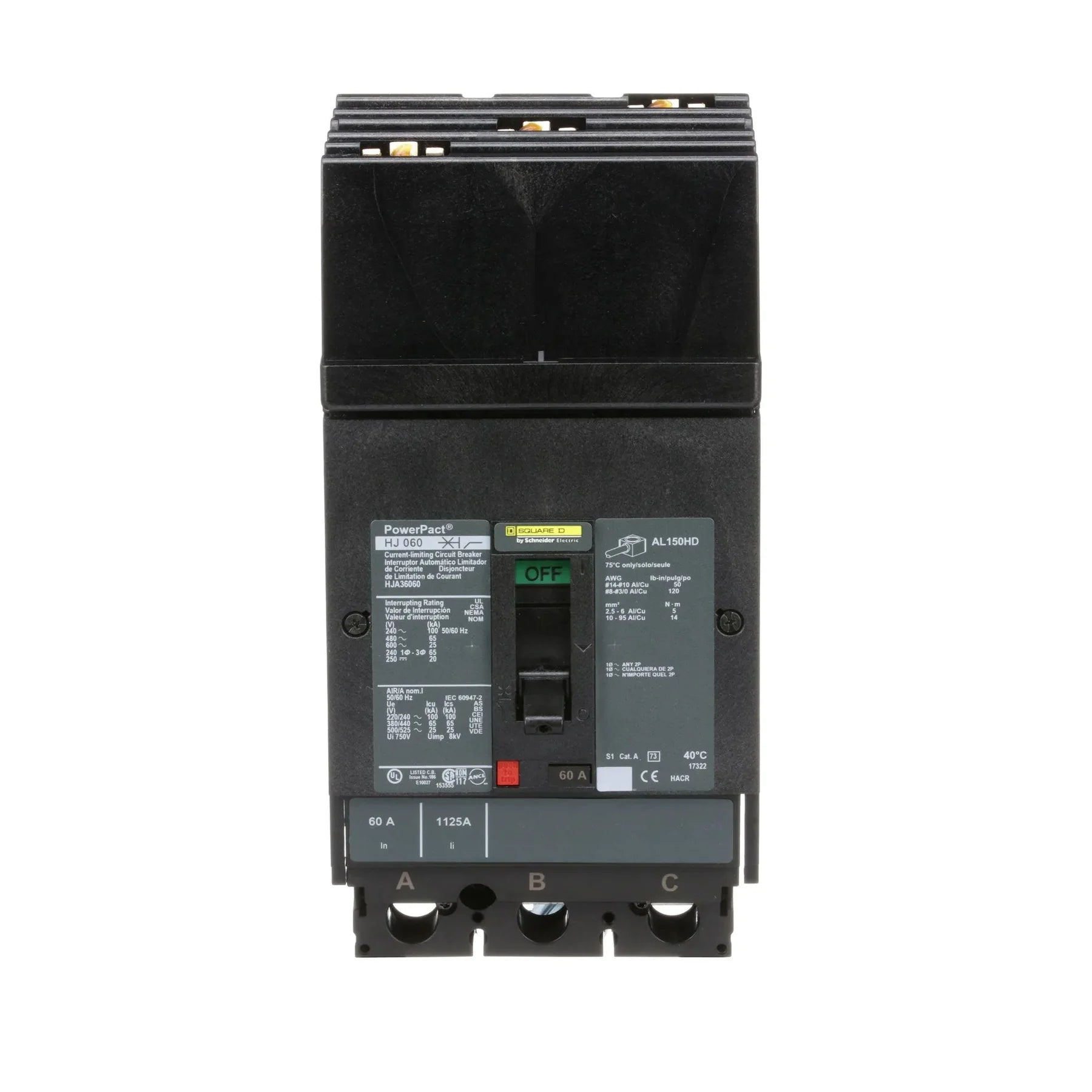

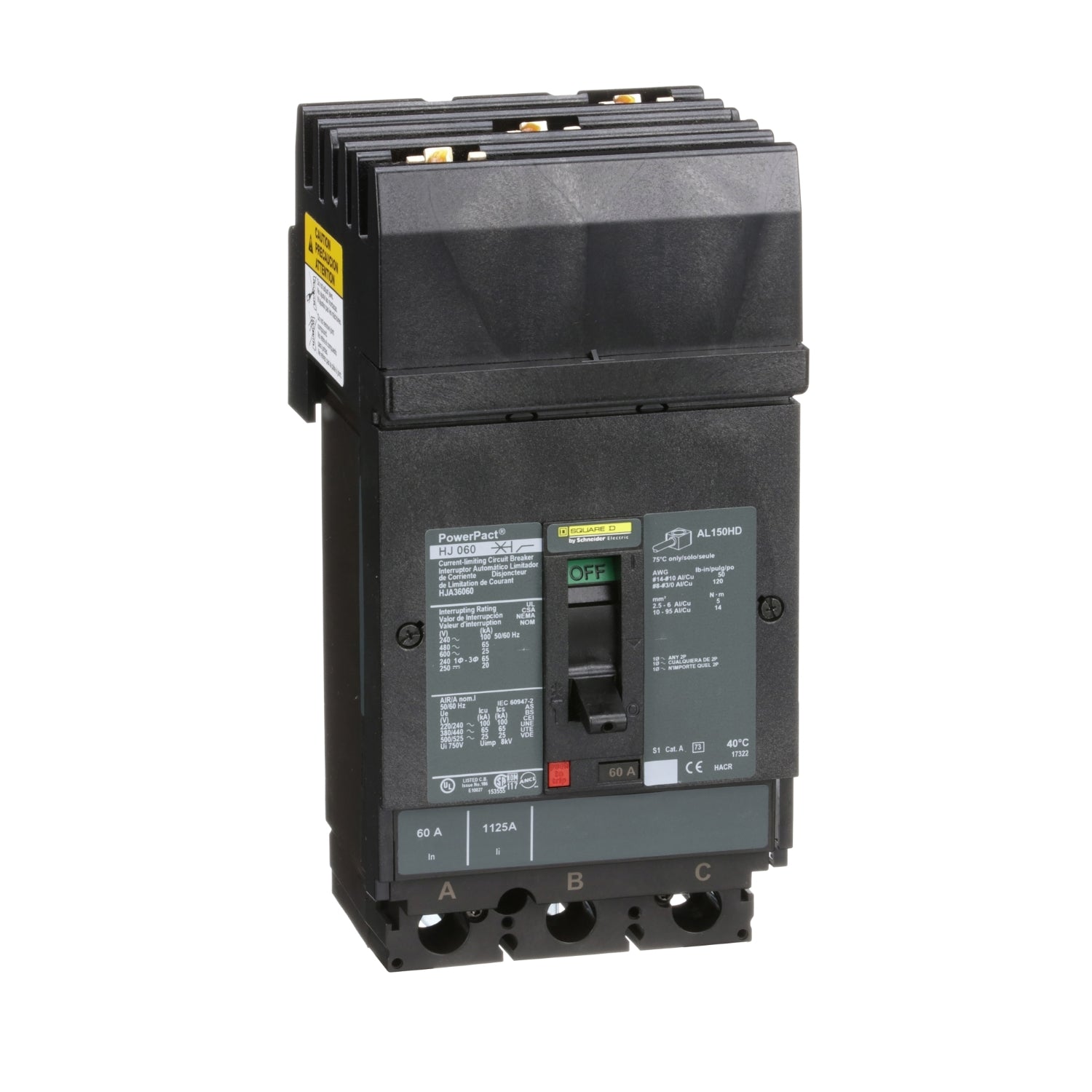

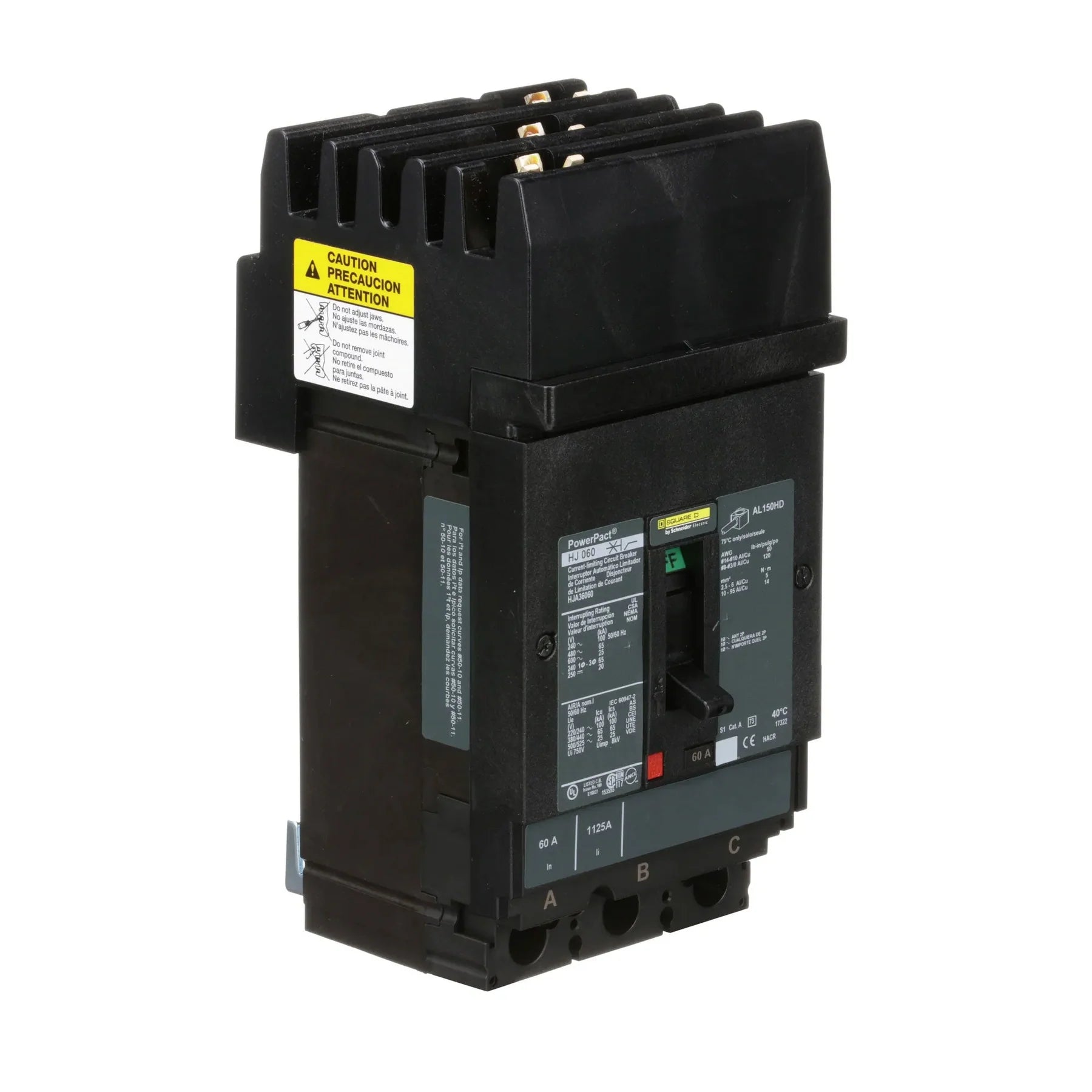

HJA36060 | Schneider Electric Circuit Breaker
- Regular price
- $789.00
- Sale price
- $789.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: HJA36060
Description
The HJA36060 is a 60A, 3-pole circuit breaker from Eaton's PowerPacT H series, designed to protect electrical systems operating at 600VAC from overloads and short circuits. It utilizes thermal magnetic circuit protection with a robust breaking capacity of 25kA at 600VAC, ensuring reliable performance under fault conditions.
PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that effectively reduce peak current during short circuit faults, minimizing potential damage to the electrical system. They feature an integral push-to-trip button on the cover for manual circuit interruption, facilitating maintenance or emergency operations.
Technical Specifications
|
Part # |
HJA36060 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product Name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
In Rated Current |
60 A |
|
Number of Poles |
3P |
|
Protected Poles Description |
3t |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
J |
|
Rated Operational Voltage ([Ue]) |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage ([Uimp]) |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
1450 A |
|
Magnetic Hold Current |
800 A |
|
Continuous Current Rating |
80% |
|
Rated Insulation Voltage ([Ui]) |
750 V IEC 60947-2 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 14...AWG 3/0 aluminum/copper terminal |
|
Local Signalling |
Switched off (OFF), 1 trip indicator (green) |
|
Mounting Mode |
I-Line bracket |
|
Mounting Support |
Bracket |
|
Terminal Identifier |
AL150HD |
|
Mounting Height |
4.5 in (114.30 mm) |
Information About HJA36060
The HJA36060 is a circuit breaker from Eaton's PowerPacT H series, designed specifically to safeguard electrical systems against overloads and short circuits. It features thermal magnetic trip protection, offering a substantial breaking capacity of 25kA at 600VAC. This ensures effective protection under high fault conditions, minimizing potential damage to equipment and enhancing system reliability.
PowerPacT H-Frame circuit breakers are versatile, available with either thermal magnetic or Micrologic electronic trip units, catering to various application requirements. They incorporate dual-break rotating contacts designed to mitigate peak currents during short circuit faults, further enhancing operational safety.
All PowerPacT circuit breakers, including the HJA36060, include an integral push-to-trip button on the cover, facilitating manual operation for circuit interruption when necessary. This feature supports maintenance and safety procedures in electrical installations.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
