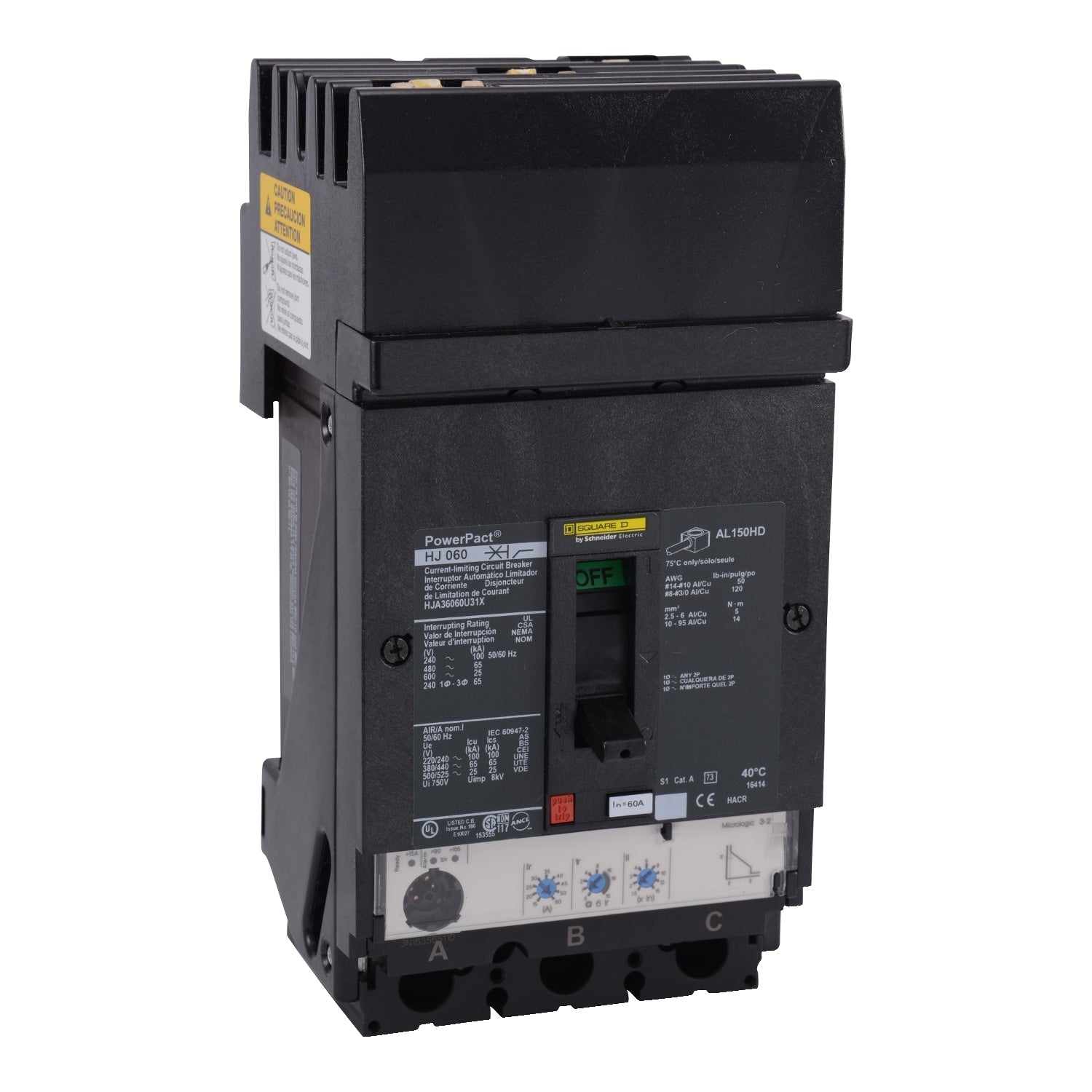

HJA36060U31X | Schneider Electric Type HJA 60A 600V 3-Pole Electronic LI/Thermal Magnetic Circuit Breaker
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HJA36060U31X
Description
The Schneider Electric HJA36060U31X is a heavy-duty molded case circuit breaker engineered to deliver reliable protection for industrial three-phase electrical systems. Rated at 60 amps and 600 VAC, it combines electronic long-time/instantaneous trip functions with thermal-magnetic protection for precise and dependable fault interruption.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | HJA36060U31X |
| Subcategory | Molded Case Circuit Breaker |
| Actuator Type | Toggle |
| Amperage Rating | 60 A |
| Connection Type | Line / Load Lug |
| Dimensions | 4.12 in W × 4.36 in D × 6.4 in H |
| Frame | J Frame |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 100 kA @ 240 VAC / 65 kA @ 480 VAC / 25 kA @ 600 VAC / 20 kA @ 250 VDC |
| Mounting Type | Surface |
| Number of Poles | 3 |
| Phase | 3 |
| Temperature Rating | 104°F (40°C) |
| Trip Range | 60 A |
| Trip Type | Electronic LI / Thermal Magnetic |
| Type | Type HJA |
| Voltage Rating | 600 VAC |
| Wire Size | 14 to 3/0 AWG Al/Cu |
| Application | Industrial Power Distribution |
Information About HJA36060U31X
The HJA36060U31X is a Type HJA circuit breaker from Schneider Electric designed for demanding industrial applications that require high interrupting capabilities and precise trip performance. Featuring a 60-amp rating and a rugged J-frame design, it protects three-phase systems operating up to 600 VAC. Its electronic long-time/instantaneous trip unit paired with thermal-magnetic protection ensures accurate fault response across a wide range of overload and short-circuit conditions. With exceptional interrupt ratings—including 100 kA at 240 VAC and 65 kA at 480 VAC—this breaker delivers robust protection in facilities with elevated fault current levels. Surface mounting, line/load lugs, and compatibility with 14 to 3/0 AWG conductors make installation straightforward while maintaining secure electrical connections.
Key Features
- High Interrupting Capacity: Supports fault clearing up to 100 kA at 240 VAC, making it suitable for high-energy industrial systems.
- Electronic LI + Thermal Magnetic Trip: Combines precision long-time/instantaneous electronic protection with reliable thermal-magnetic backup.
- 60A Three-Pole Protection: Ideal for balanced three-phase loads used in industrial distribution and equipment feeds.
- Rugged J-Frame Construction: Provides superior durability and stability for demanding environments and high fault-duty applications.
- Wide Voltage Compatibility: Operates across 600 VAC systems with additional DC rating at 250 VDC.
- Surface-Mount Design: Ensures secure installation in industrial panelboards and equipment enclosures.
- Wide Conductor Range: Accepts 14–3/0 AWG aluminum or copper wire for flexible installation options.
- Reliable Toggle Actuation: Offers straightforward manual operation with consistent breaker performance.
The HJA36060U31X delivers the reliability and precision required for protecting heavy-duty industrial three-phase electrical systems.
