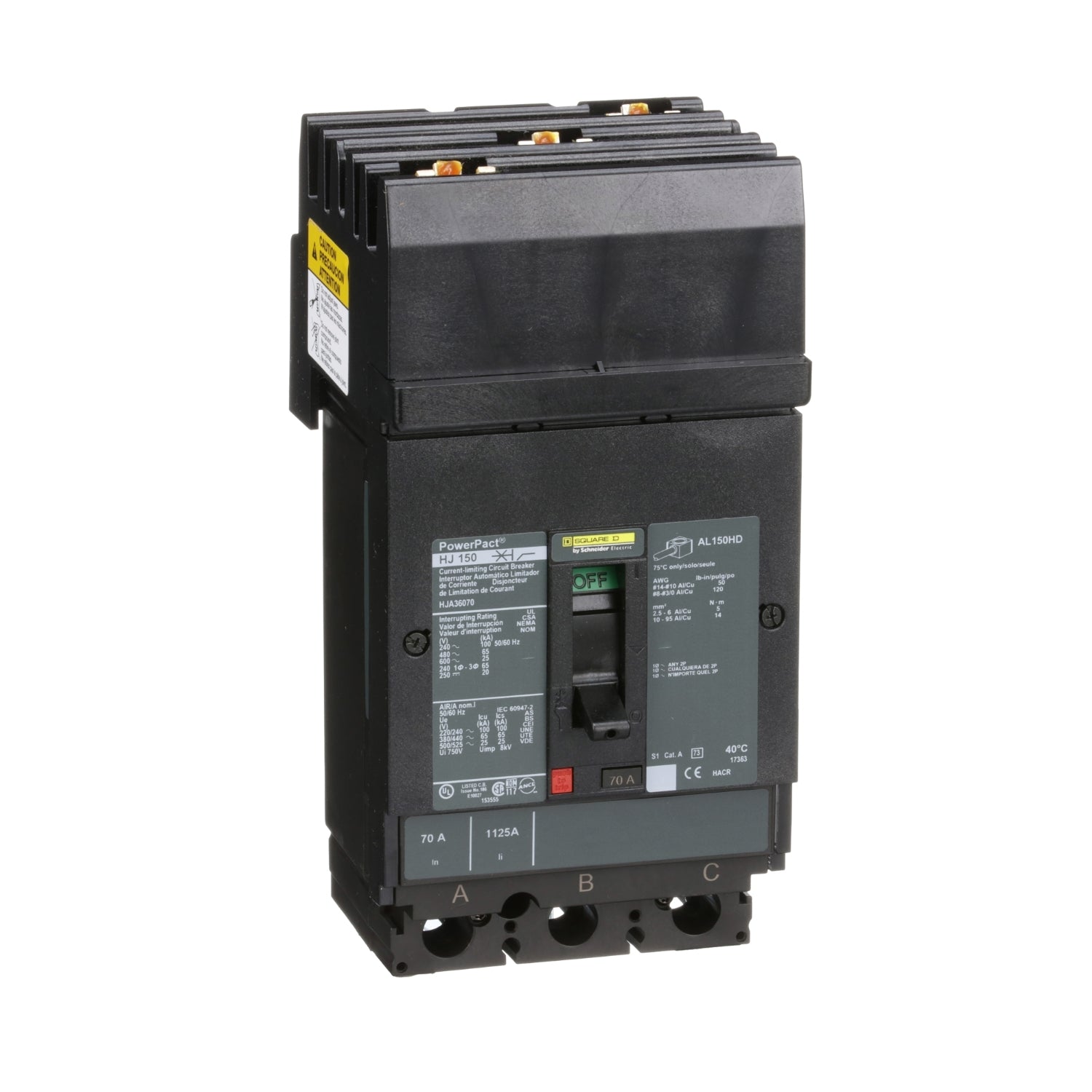

HJA36070 | Schneider Electric Circuit Breaker
- Regular price
- $1,067.00
- Sale price
- $1,067.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HJA36070
Description
The HJA36070 Circuit Breaker, belonging to the PowerPacT H series, is engineered to safeguard electrical systems from damage due to overloads and short circuits. Featuring thermal magnetic protection, it offers a breaking capacity of 25kA at 600VAC. Equipped with dual-break rotating contacts, it minimizes peak current during short circuit faults.
Technical Specifications
|
Part # |
HJA36070 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
70 A |
|
Number of Poles |
3P |
|
Protected Poles Desc. |
3t |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
J |
|
[Ue] Rated Voltage |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] Rated Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Curr. |
1450 A |
|
Magnetic Hold Current |
800 A |
|
Continuous Current Rat. |
80 % |
|
[Ui] Rated Insulation V |
750 V IEC 60947-2 |
|
Suitability for Isol. |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 14...AWG 3/0 al/cu term. |
|
Local Signalling |
Switched off (OFF) 1 trip ind. |
|
Mounting Mode |
I-Line bracket |
|
Mounting Support |
Bracket |
|
Electrical Connection |
I-Line connection, line |
|
|
Lugs, load |
|
Terminal Identifier |
AL150HD |
|
Mounting Height |
4.5 in (114.30 mm) |
|
Power Wire Stripping L |
0.63 in (16 mm) |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb(US) (2.2 kg) |
|
Quantity per Set |
1 |
|
Phase Connection |
ABC |
|
Communication Interface |
Modbus |
|
|
Ethernet |
|
Circuit Breaker Appl. |
HACR rated |
Information About HJA36070
The HJA36070 is a circuit breaker belonging to the PowerPacT H series, engineered to safeguard electrical systems against potential damage from overloads and short circuits. Featuring thermal magnetic protection, it boasts a substantial breaking capacity of 25kA at 600VAC. Equipped with dual-break rotating contacts, it efficiently reduces peak current during short circuit faults.
This circuit breaker incorporates an integral push-to-trip button in its cover, allowing for manual tripping when necessary. Available in both 2 and 3-pole unit mount configurations, as well as I-Line constructions, it offers versatility in installation. Specifically, the I-Line construction facilitates convenient installation and removal in I-Line applications.
