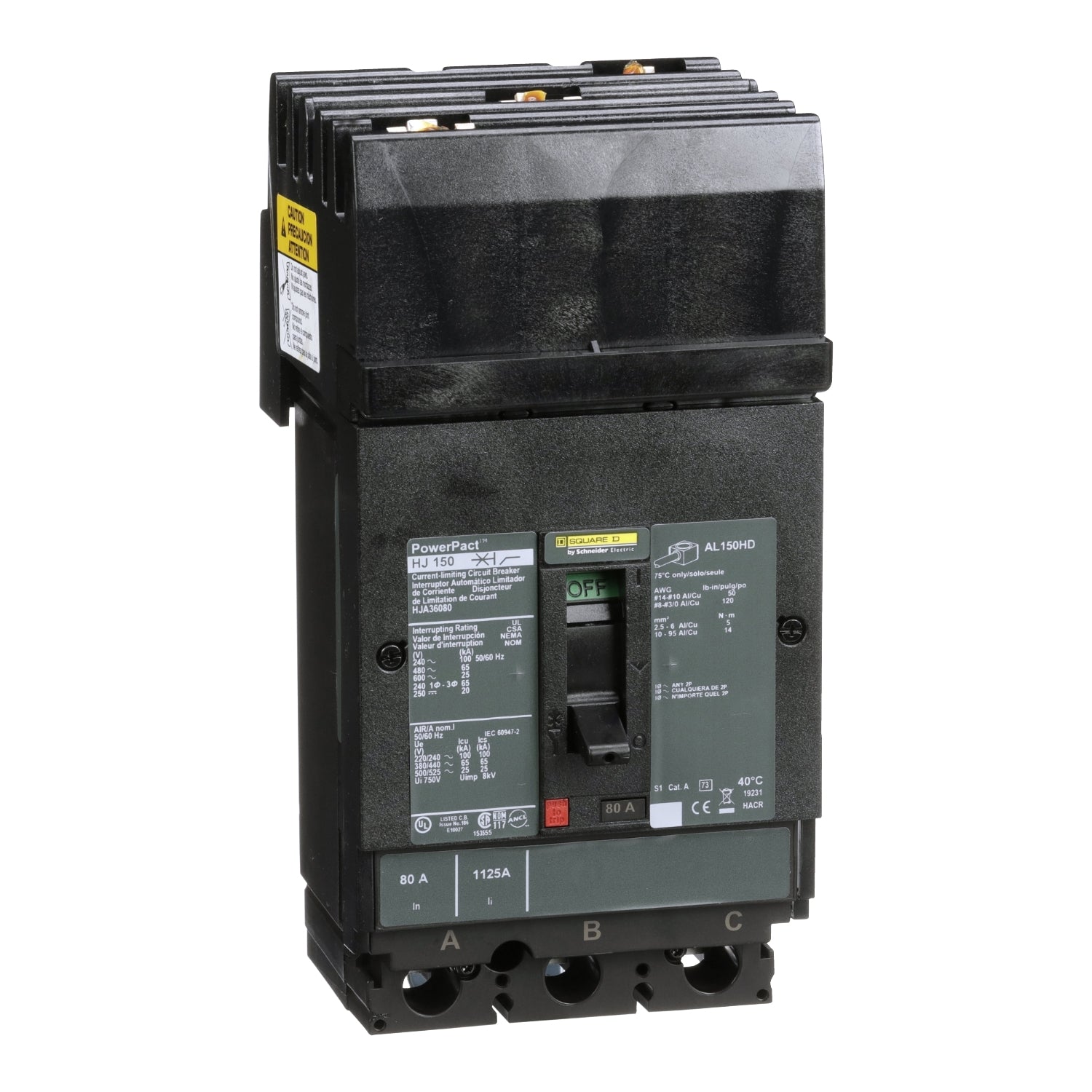

HJA36080 | Schneider Electric Powerpact HJA 3-Pole 80A 600V Thermal Magnetic Circuit Breaker
- Regular price
- $1,155.00
- Sale price
- $1,155.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HJA36080
Description
The Schneider Electric HJA36080 is a molded case circuit breaker designed for three-phase distribution systems requiring dependable overcurrent protection. Rated for 600-volt operation with an 80-amp capacity, it provides stable performance across industrial applications. Its thermal magnetic trip unit delivers accurate long-time and instantaneous protection to safeguard electrical equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | HJA36080 |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | HJA |
| Voltage | 600 V |
| Amperage | 80 A |
| Phase | 3 |
| Poles | 3 |
| Functions | LI – Long-Time and Instantaneous |
| AIC Rating | 65 kA @ 480 V |
| Connection | I-Line Style Plug-In |
| Frame Type | H Frame |
| Protection | Thermal Magnetic |
| Trip Unit | Non-Interchangeable |
| Current Limiting | Yes |
| Phase Connection | ABC |
| Reverse Feed Capability | Suitable |
| Certification | UL Listed |
| Application | Industrial electrical distribution |
| Mounting Style | I-Line Plug-In |
Information About HJA36080
The HJA36080 is a molded case circuit breaker built within Schneider Electric’s Powerpact product range, offering dependable performance in three-phase electrical systems operating up to 600 volts. As an H Frame device, it supports an 80-amp current rating and incorporates long-time and instantaneous trip functions through a thermal magnetic mechanism. The I-Line style plug-in configuration enables quick installation and secure mechanical engagement within compatible panelboards. With a 65 kA interrupt rating at 480 volts, current-limiting capability, and suitability for reverse-fed applications, the HJA36080 is engineered for flexible, high-integrity protection in industrial distribution environments.
Key Features
- H Frame molded case design: Supports medium-capacity industrial protection requirements.
- 80-amp rating: Suitable for a wide range of three-phase distribution applications.
- Thermal magnetic trip system: Provides balanced long-time overload and instantaneous fault protection.
- 65 kA interrupt rating: Ensures high-level fault clearing capability at 480 volts.
- I-Line plug-in connection: Enables fast, secure installation into compatible distribution equipment.
- Current-limiting technology: Reduces let-through energy during high-fault events.
- Reverse-feed compatibility: Increases installation flexibility in industrial systems.
- Non-interchangeable trip unit: Supports consistent protective performance across applications.
The HJA36080 delivers the reliability and precision required for safeguarding three-phase power systems in demanding industrial environments.
