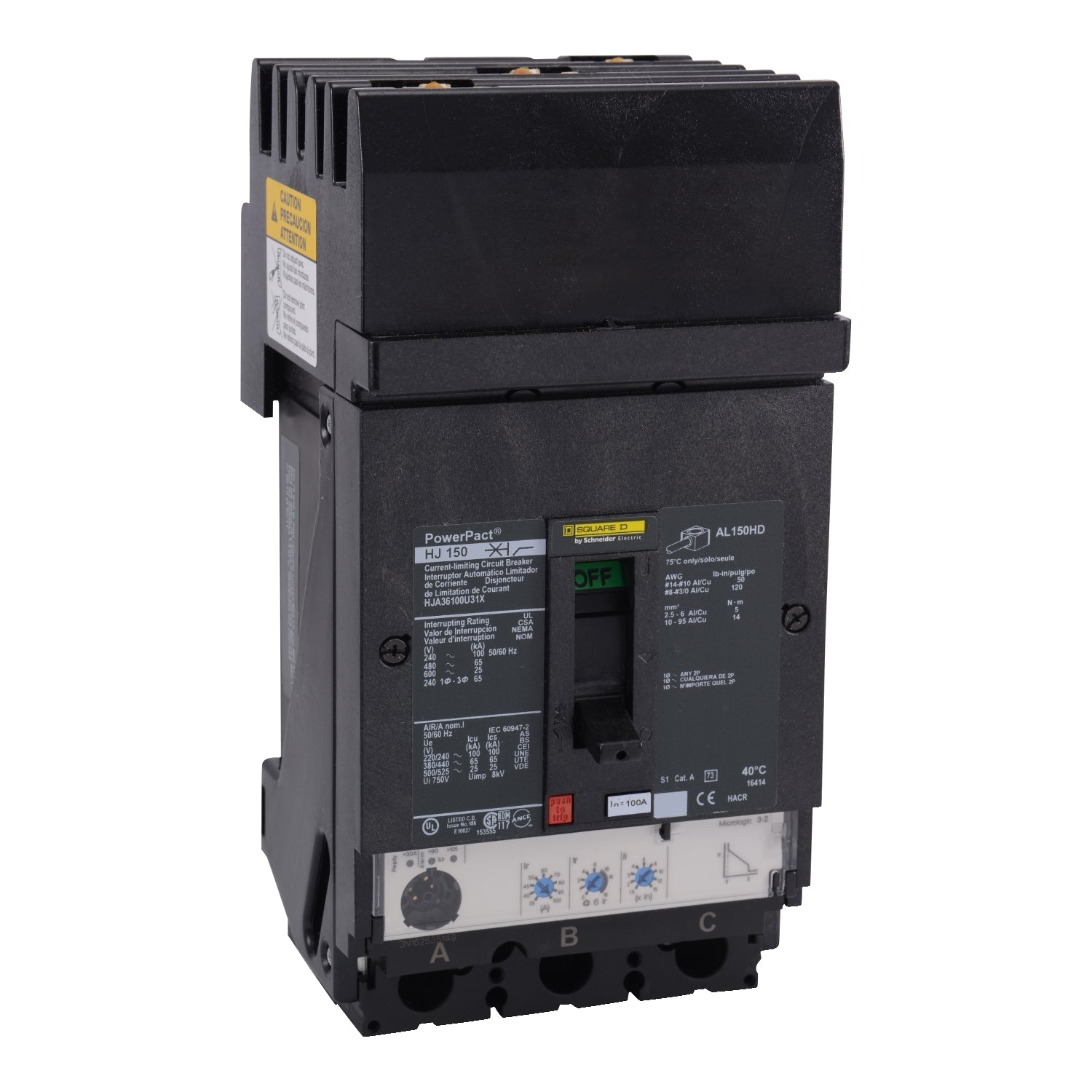

HJA36100U31X | Schneider Electric Circuit Breaker
- Regular price
- $1,675.00
- Sale price
- $1,675.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HJA36100U31X
Description
The Schneider Electric HJA36100U31X is a 100A, 600V molded case circuit breaker built for three-phase industrial distribution systems. This Powerpact HJA model features a Micrologic 3.2 solid-state trip unit with LI (Long-Time and Instantaneous) protection and a 65 kA interrupting rating at 480V. Its I-Line style plug-in connection allows fast, secure installation while offering current-limiting performance and suitability for reverse-connection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | HJA36100U31X |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | HJA |
| Voltage Rating | 600 V |
| Amperage Rating | 100 A |
| Connection Style | I-Line Style Plug-In |
| Phase | 3-Phase |
| Poles | 3 |
| AIC Rating | 65 kA @ 480 V |
| Trip Functions | LI – Long-Time & Instantaneous |
| Protection Type | Solid State (Micrologic 3.2, non-interchangeable) |
| Frame Type | H Frame |
| Current Limiting | Yes |
| Suitable For | Reverse-connection applications; 2-pole use when required |
Information About HJA36100U31X
The HJA36100U31X is part of Schneider Electric’s Powerpact H-Frame family, designed for demanding commercial and industrial power distribution requirements. Its Micrologic 3.2 non-interchangeable trip unit utilizes solid-state sensing to deliver precise long-time and instantaneous trip protection, enhancing coordination and reliability. The breaker supports ABC phase connection and may also be used in 2-pole applications when required. With a high interrupting capacity of 65 kA at 480V, current-limiting characteristics, and the I-Line plug-in mounting system, the HJA36100U31X provides a durable, high-performance solution for panelboards and switchboards where rapid installation and robust protection are essential.
Key Features:
- Micrologic 3.2 solid-state trip: Provides accurate Long-Time and Instantaneous protection.
- 65 kA interrupt rating at 480V: Handles high fault currents safely in industrial environments.
- 100A, 600V rating: Supports medium-capacity three-phase loads.
- H-Frame construction: Rugged molded-case design for demanding applications.
- I-Line plug-in connection: Enables quick installation and secure bus engagement.
- Current-limiting performance: Reduces let-through energy during high-fault events.
- 3-pole configuration: Supports standard three-phase distribution; usable for 2-pole needs.
- Reverse-connection capability: Provides installation flexibility in various panelboard arrangements.
- ABC phase connection: Ensures proper alignment within I-Line assemblies.
The HJA36100U31X delivers the reliability and precision required for high-performance industrial electrical protection.
