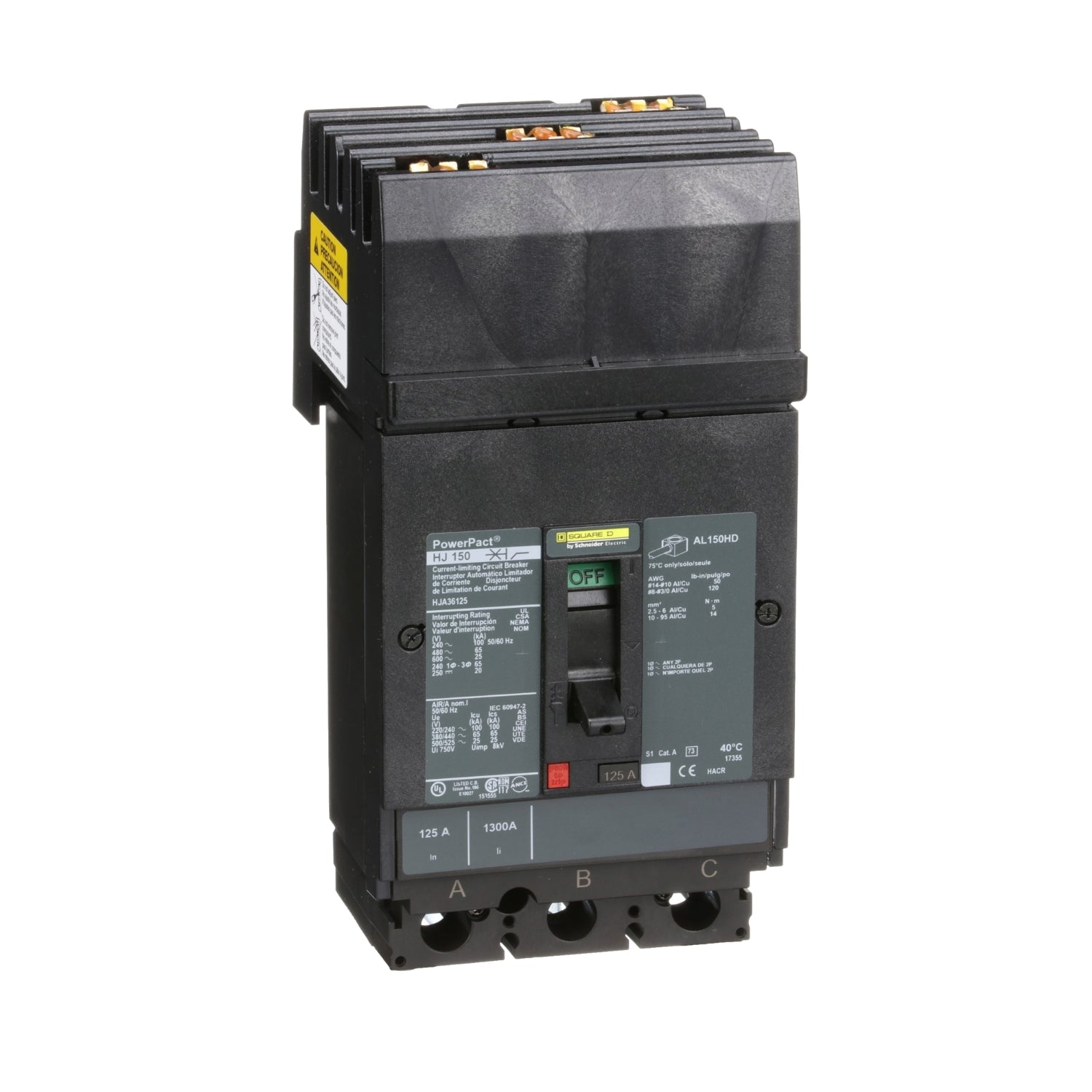

HJA36125 | Schneider Electric Circuit Breaker
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HJA36125
Description
The HJA36125 is a PowerPacT H-Frame circuit breaker designed for robust protection of electrical systems against overloads and short circuits. Operating at 125A and 600VAC, it offers a breaking capacity of 25kA. This thermal magnetic circuit breaker features dual-break rotating contacts to mitigate peak current during short circuit faults.
Technical Specifications
|
Part # |
HJA36125 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
125 A |
|
Number of Poles |
3P |
|
Protected Poles Description |
3t |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
J |
|
Rated Operational Voltage |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
1700 A |
|
Magnetic Hold Current |
900 A |
|
Continuous Current Rating |
80 % |
|
Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
|
Local Signalling |
Switched off (OFF) 1 trip indicator green |
|
Mounting Mode |
I-Line bracket |
|
Mounting Support |
Bracket |
|
Electrical Connection |
I-Line connection, line; Lugs, load |
|
Terminal Identifier |
AL150HD |
|
Mounting Height |
4.5 in (114.30 mm) |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb(US) (2.2 kg) |
|
Quantity per Set |
1 |
|
Phase Connection |
ABC |
Information About HJA36125
The HJA36125 is a circuit breaker belonging to the PowerPacT H series, designed to safeguard electrical systems against damage due to overloads and short circuits. It is a 125A, 3-pole breaker with a voltage rating of 600VAC and a breaking capacity of 25kA. Equipped with thermal magnetic circuit protection, it ensures reliable operation under varying load conditions.
PowerPacT H-Frame circuit breakers offer flexibility with the choice of thermal magnetic or Micrologic electronic trip protection units. The HJA36125 provides thermal magnetic circuit protection, offering robust defense against electrical faults. It features dual-break rotating contacts to minimize peak current during short circuit faults, enhancing system reliability.
This circuit breaker includes an integral push-to-trip button in the cover, enabling manual trip operation when necessary. Available in both 2 and 3-pole unit mount configurations, as well as I-Line constructions, it offers versatility in installation options. The I-Line variant is particularly convenient for easy installation and removal in I-Line applications, featuring I-Line terminations on the line side and mechanical lugs on the load side.
