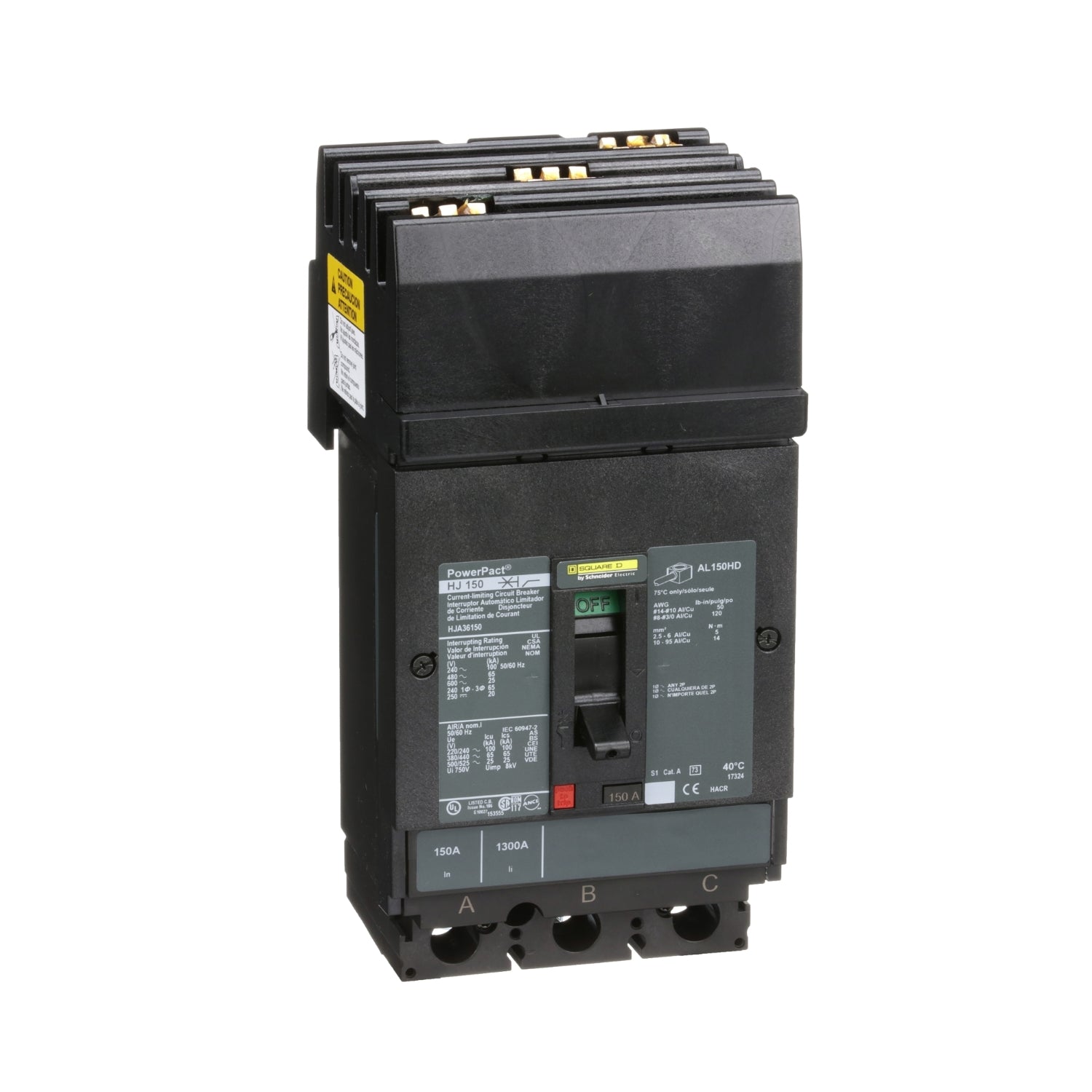

HJA36150 | Schneider Electric Powerpact HJA 3-Pole 150A 600V Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HJA36150
Description
The Square D HJA36150 is a molded case circuit breaker designed to provide reliable overcurrent protection in three-phase power distribution systems. Rated for 600V and 150A, this breaker uses thermal magnetic protection and an I-Line style plug-in connection for integration into compatible electrical assemblies.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | HJA36150 |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | HJA |
| Voltage Rating | 600 V |
| Current Rating | 150 A |
| Poles | 3 |
| Phase | 3 |
| Frame Type | H Frame |
| Protection Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Connection Type | I-Line Style Plug-In |
| Interrupting Rating (AIC) | 65 kA @ 480 V |
| Phase Connection | ABC |
| Current Limiting | Yes |
| UL Listing | UL Listed |
| Reverse Feed Suitable | Yes |
Information About HJA36150
The HJA36150 is a molded case circuit breaker from the Square D Powerpact family engineered for high-capacity electrical distribution systems. It is constructed using an H-frame design that supports durability and consistent performance in industrial and commercial installations. The breaker integrates seamlessly with I-Line distribution equipment and supports three-phase configurations with ABC phase connections. Its internal thermal magnetic trip system provides coordinated long-time and instantaneous protection to address overload and short-circuit conditions.
Key Features
- Powerpact HJA Series Design: Built within the Square D Powerpact family for standardized industrial protection.
- Thermal Magnetic Protection: Combines long-time thermal and instantaneous magnetic response for fault control.
- High Interrupting Capacity: Rated at 65 kA at 480 V to manage elevated fault current levels.
- I-Line Plug-In Connection: Enables secure installation in compatible I-Line panelboards and switchgear.
- Three-Pole Configuration: Supports balanced protection in three-phase electrical systems.
- Reverse Feed Capability: Approved for reverse-fed applications without performance compromise.
- Non-Interchangeable Trip Unit: Ensures fixed protection characteristics aligned with system design.
The HJA36150 delivers the reliability and precision required for high-capacity three-phase power distribution and circuit protection in demanding electrical environments.
