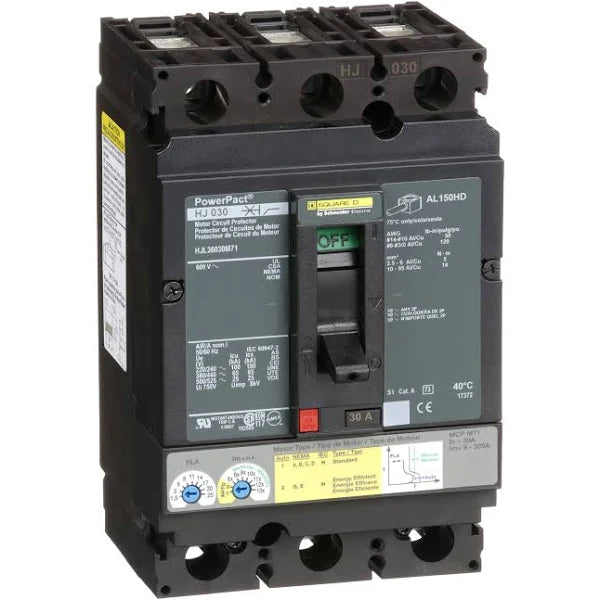

HJL36030M71 | Schneider Electric Motor Circuit Protector
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HJL36030M71
Description
The HJL36030M71 by Schneider Electric is a motor circuit protector designed for industrial applications. It features a 3-pole configuration with a 30A rating, providing reliable protection for motors. This device offers thermal magnetic trip characteristics tailored for motor loads, ensuring safe and efficient operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | HJL36030M71 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Actuator Type | Toggle Handle |
| Amperage Rating | 30 A |
| Connection type | Lug |
| Dimensions | 4.36 in L x 4.12 in W x 6.4 in H |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 25 kA |
| Mounting type | Unit |
| Number of Poles | 3 |
| Phase | 3 |
| Temperature Rating (Degrees F) | 104 deg F |
| Trip Range | 9 to 325 A |
| Trip Type | Electronic |
| Type | Type HJL |
| Voltage Rating | 600 VAC/250 VDC |
| Wire Size | 14 to 3/0 AWG |
Information About HJL36030M71
The Schneider Electric HJL36030M71 is a rugged industrial motor circuit protector designed to safeguard three-phase motors from overloads, short circuits, and damaging electrical conditions. With a 30-amp rating and a voltage capability of 600 VAC or 250 VDC, it supports a wide range of industrial motor applications. Its electronic trip unit provides an adjustable trip range from 9 to 325 amps, enabling precise protection tailored to motor characteristics. The breaker’s high interrupt rating of 25 kA ensures safe clearing of substantial fault currents in demanding environments. Lug-type terminals support wire sizes from 14 to 3/0 AWG for flexible installation options. Built with a compact H-frame design and a temperature rating up to 104°F, the HJL36030M71 offers durable, dependable performance in harsh industrial settings.
Key Features
- Electronic Trip Protection: Adjustable 9–325A trip range delivers precise overload and short-circuit protection for motor applications.
- High Fault-Clearing Capability: A 25 kA interrupt rating allows the device to safely manage high-energy industrial faults.
- Three-Pole Design: Provides coordinated protection for three-phase motor circuits, ensuring full-phase isolation during trip events.
- H-Frame Durability: Compact yet robust construction supports demanding industrial installations with long service life.
- Toggle Handle Actuator: Enables clear, reliable manual operation for switching, resetting, and maintenance tasks.
- Wide Voltage Compatibility: Operates at 600 VAC or 250 VDC, supporting diverse motor control system requirements.
- Flexible Wiring Options: Lug connections accommodate 14 to 3/0 AWG conductors, simplifying panel integration.
The HJL36030M71 delivers the reliability and precision required for protecting industrial three-phase motors in demanding operational environments.
