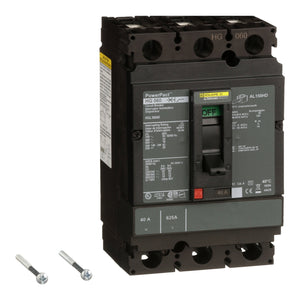

HJL36040 | Schneider Electric Circuit Breaker
- Regular price
- $697.00
- Sale price
- $697.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: HJL36040
Description
The HJL36040 is a PowerPacT H-Frame circuit breaker, engineered to safeguard electrical systems against overload and short circuit hazards. It is equipped with thermal magnetic circuit protection, offering a breaking capacity of 25kA at 600VAC. Featuring dual-break rotating contacts, it minimizes peak current during short circuit faults. The breaker includes an integral push-to-trip button for manual circuit interruption. Available in both 2 and 3-pole configurations, it supports unit mount and I-Line installations. This specific model, a 40A, 3-pole breaker, boasts lugs on both line and load sides. With a continuous current rating of 80%, it adheres to UL, CSA, NOM, and IEC standards and carries the CE mark.
Technical Specifications
|
Part # |
HJL36040 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker Range |
|
Product name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
40 A |
|
Number of Poles |
3P |
|
Protected poles description |
3t |
|
Control Type |
Toggle |
|
Breaking capacity code |
J |
|
Rated operational voltage (Ue) |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
Rated impulse withstand voltage (Uimp) |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
850 A |
|
Magnetic hold current |
400 A |
|
Continuous current rating |
80 % |
|
Rated insulation voltage (Ui) |
750 V IEC 60947-2 |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
|
Local signalling |
Switched off (OFF) 1 trip indicator green) |
|
Mounting mode |
Unit mount lug) |
|
Mounting Support |
Lug |
|
Electrical connection |
Lugs, line |
|
|
Lugs, load |
|
Terminal identifier |
AL150HD |
|
Power wire stripping length |
0.63 in (16 mm) |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb(US) (2.2 kg) |
|
Quantity per Set |
1 |
|
Circuit breaker application |
HACR rated |
|
IP degree of protection |
Front cover IP40 IEC 60529 |
|
Pollution degree |
3 IEC 60947-1 |
|
Ambient Air Temperature for Operation |
-13…158 °F (-25…70 °C) |
|
Ambient Air Temperature for Storage |
-58…185 °F (-50…85 °C) |
|
Operating altitude |
< 6561.68 ft (2000 m) without derating |
Information About HJL36040
The HJL36040 is a PowerPacT H-Frame circuit breaker engineered to safeguard electrical systems against damage resulting from overloads and short circuits. It is available with either thermal magnetic or Micrologic electronic trip protection units. This specific model offers thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC.
Equipped with dual-break rotating contacts, the HJL36040 reduces the peak current during short circuit faults. It features an integral push-to-trip button in the cover for manual circuit interruption. PowerPacT H circuit breakers are offered in both 2 and 3-pole unit mount and I-Line constructions.
The breaker is designed with lugs on both the line and load sides for ease of installation and connection. With a continuous current rating of 80%, it complies with UL, CSA, NOM, and IEC standards and bears the CE mark, ensuring adherence to industry regulations and standards.
