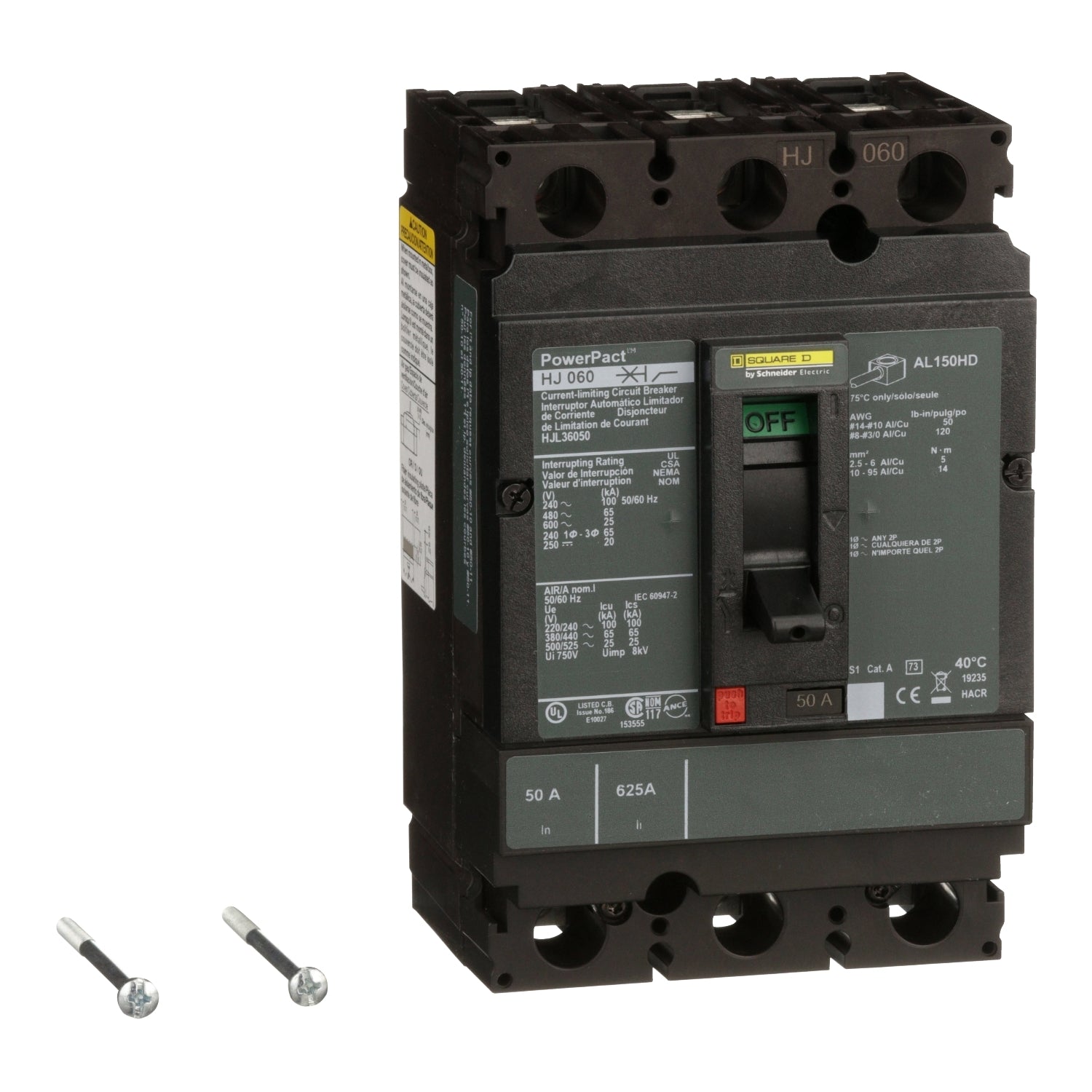

HJL36050 | Schneider Electric Circuit Breaker
- Regular price
- $462.00
- Sale price
- $462.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: HJL36050
Description
The HJL36050 is a PowerPacT H-Frame circuit breaker, designed to safeguard electrical systems from damage caused by overloads and short circuits. It features thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. Equipped with dual-break rotating contacts, it reduces peak current during short circuit faults.
This circuit breaker is configured with lugs on both the line and load sides, facilitating secure electrical connections. It is a 3-pole unit mount with a current rating of 50A. Operating at 600VAC, it maintains a continuous current rating of 80%. The breaker features an integral push-to-trip button in the cover for manual tripping.
Technical Specifications
|
Part # |
HJL36050 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
50 A |
|
Number of Poles |
3P |
|
Protected poles description |
3t |
|
Control Type |
Toggle |
|
Breaking capacity code |
J |
|
Rated operational voltage (Ue) |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
Rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
850 A |
|
Magnetic hold current |
400 A |
|
Continuous current rating |
80 % |
|
Rated insulation voltage (Ui) |
750 V IEC 60947-2 |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
AWG 14...AWG 3/0 aluminium/copper |
|
Terminal |
Lugs, line |
|
Terminal |
Lugs, load |
|
Terminal identifier |
AL150HD |
|
Power wire stripping length |
0.63 in (16 mm) |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb(US) (2.2 kg) |
|
Quantity per Set |
1 |
Information About HJL36050
The HJL36050 is a circuit breaker belonging to the PowerPacT H-Frame series, designed to safeguard electrical systems from damage caused by overloads and short circuits. These circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. The HJL36050 specifically provides thermal magnetic circuit protection, featuring a breaking capacity of 25kA at 600VAC.
All PowerPacT H-Frame circuit breakers, including the HJL36050, are equipped with dual-break rotating contacts designed to reduce the amount of peak current during a short circuit fault. Additionally, they feature an integral push-to-trip button in the cover, enabling manual tripping of the circuit breaker when necessary.
PowerPacT H circuit breakers are available in both 2 and 3-pole unit mount as well as I-Line constructions, offering flexibility in installation configurations. The HJL36050 breaker is configured with lugs on both the line and load sides, facilitating secure electrical connections.
