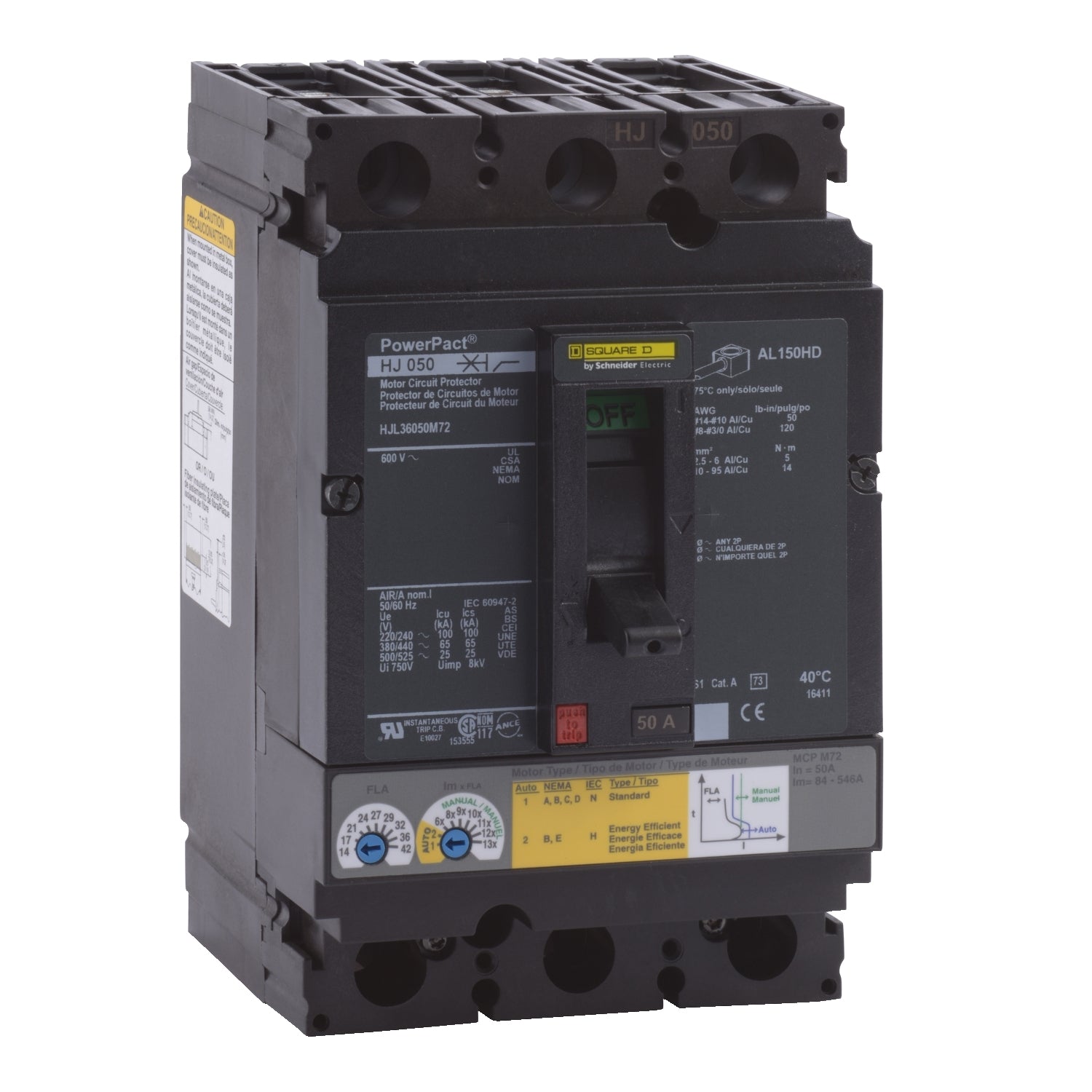

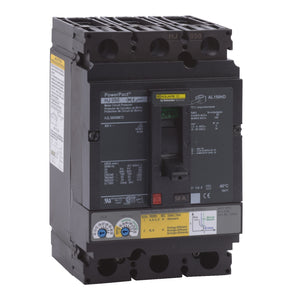

HJL36050M72 | Schneider Electric Motor Circuit Protector
- Regular price
- $788.00
- Sale price
- $788.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HJL36050M72
Description
The HJL36050M72 is a Motor Circuit Protector (MCP) from the PowerPacT H-Series designed by Schneider Electric. It is engineered as a three-pole (3P) circuit protector with a current rating of 50A, operating at a voltage of 600VAC. With a breaking capacity of 25kA at 600VAC, it offers robust short-circuit protection for motors.
This MCP is equipped with lugs on both the line and load sides, facilitating secure electrical connections. Its unique design accommodates transient motor inrush current without causing nuisance tripping, ensuring reliable operation. Additionally, the HJL36050M72 accepts the same accessories and terminals as PowerPacT H circuit breakers, providing versatility in installation and customization.
Technical Specifications
|
Part Number |
HJL36050M72 |
|
Manufacturer |
Schneider Electric / Square D |
|
Family |
Powerpact |
|
Pole |
3 |
|
Amp |
50 |
|
Volt |
600 |
|
Phase |
3 |
|
Category |
Molded Case / 3-Pole |
|
Connection |
Feed-Thru |
|
Type |
HJL |
|
Functions |
LI - Long-Time and Instantaneous |
|
Protection |
Thermal Magnetic |
|
AIC Ratings |
65kA@480V |
Information About HJL36050M72
The HJL36050M72 is a motor circuit protector belonging to the PowerPacT H-Frame series. These protectors, also known as MCPs (Motor Circuit Protectors), function as instantaneous-trip circuit breakers specifically engineered to provide short circuit protection for motors.
The design of the PowerPacT MCPs is tailored to accommodate transient motor inrush current without causing nuisance tripping. This ensures optimal operational efficiency and reliability for motor-driven systems.
This particular PowerPacT H motor circuit protector is rated at 50A and features a 3-pole configuration, suitable for applications requiring a voltage of 600VAC. With a breaking capacity of 25kA at 600VAC, it offers robust protection against short circuits.
Equipped with lugs on both the line and load sides, this motor protector facilitates convenient and secure connections within electrical systems. Additionally, it is compatible with the same accessories and terminals as other PowerPacT H circuit breakers, enhancing versatility and ease of installation.
With a continuous current rating of 80%, this circuit protector is capable of sustaining prolonged operation under normal load conditions without compromising performance or safety.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
