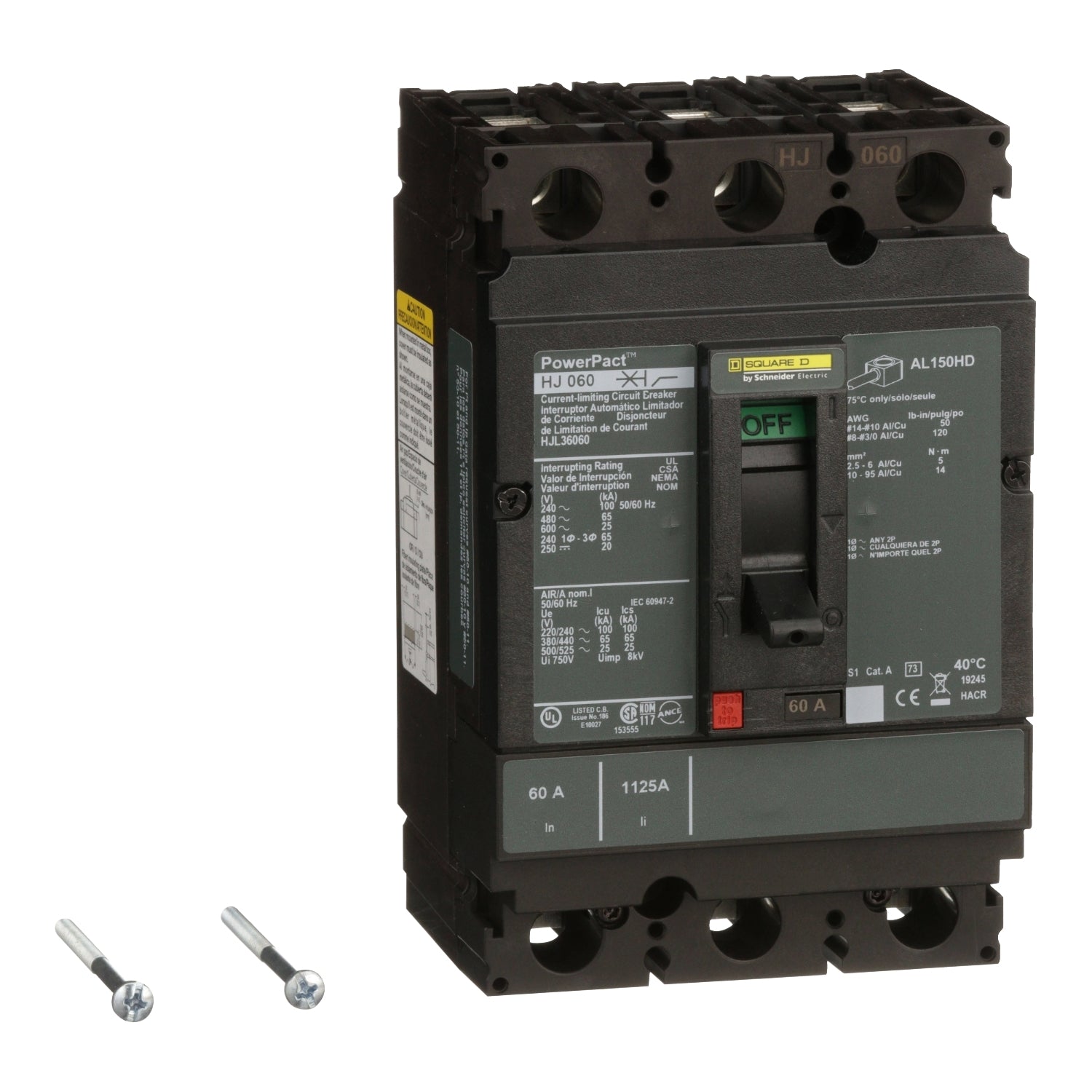

HJL36060 | Schneider Electric Circuit Breaker
- Regular price
- $654.00
- Sale price
- $654.00
- Regular price
-
Do you need help?
Product Description P/N: HJL36060
Description
The HJL36060 is a PowerPact H circuit breaker rated for 60 amps with three poles, designed to operate at 600 volts AC. It features a 25kA interrupting capacity, ensuring reliable protection against electrical faults. Equipped with lugs for secure connections, this breaker utilizes a thermal magnetic mechanism, providing both thermal overload and magnetic short circuit protection. It is built to handle up to 80% of its rated current continuously, ensuring durability and safety in electrical distribution systems.
Technical Specifications
Brand | Schneider Electric |
Part Number | HJL36060 |
Category | Circuit Breaker |
Subcategory | Molded Case Circuit Breaker |
Family | Powerpact |
Type | HJL |
Voltage | 600 |
Amperage | 60 |
Frame Type | H Frame |
Functions | LI - Long-Time and Instantaneous |
Protection | Thermal Magnetic |
Poles | 3 |
Connection | Feed-Thru |
AIC Rating | 65kA@480V |
Phase | 3 |
Information About HJL36060
The HJL36060 is a circuit breaker manufactured by Schneider Electric under the PowerPact family, specifically the HJL type. It operates at a voltage of 600 volts AC and has a current rating of 60 amps. This breaker belongs to the H frame category, indicating its robust construction suitable for industrial applications.
Equipped with Long-Time (LI) and Instantaneous trip functions, the HJL36060 provides comprehensive protection against both sustained overloads and short circuits. Its thermal magnetic protection mechanism ensures efficient operation by combining thermal elements for overload conditions and magnetic elements for quick response to faults.
With three poles, the HJL36060 is designed for three-phase systems, supporting reliable power distribution in various environments. It features a feed-thru connection type, facilitating straightforward installation and enhancing flexibility in electrical panel configurations.
The circuit breaker boasts an impressive AIC (Ampere Interrupting Capacity) rating of 65kA at 480 volts, demonstrating its capability to safely interrupt high fault currents, thereby safeguarding electrical equipment and personnel.
In summary, the HJL36060 from Schneider Electric is a dependable solution for industrial applications requiring robust circuit protection. It combines advanced thermal magnetic technology, high interrupting capacity, and versatile installation features to ensure reliable performance and safety in electrical distribution systems.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
