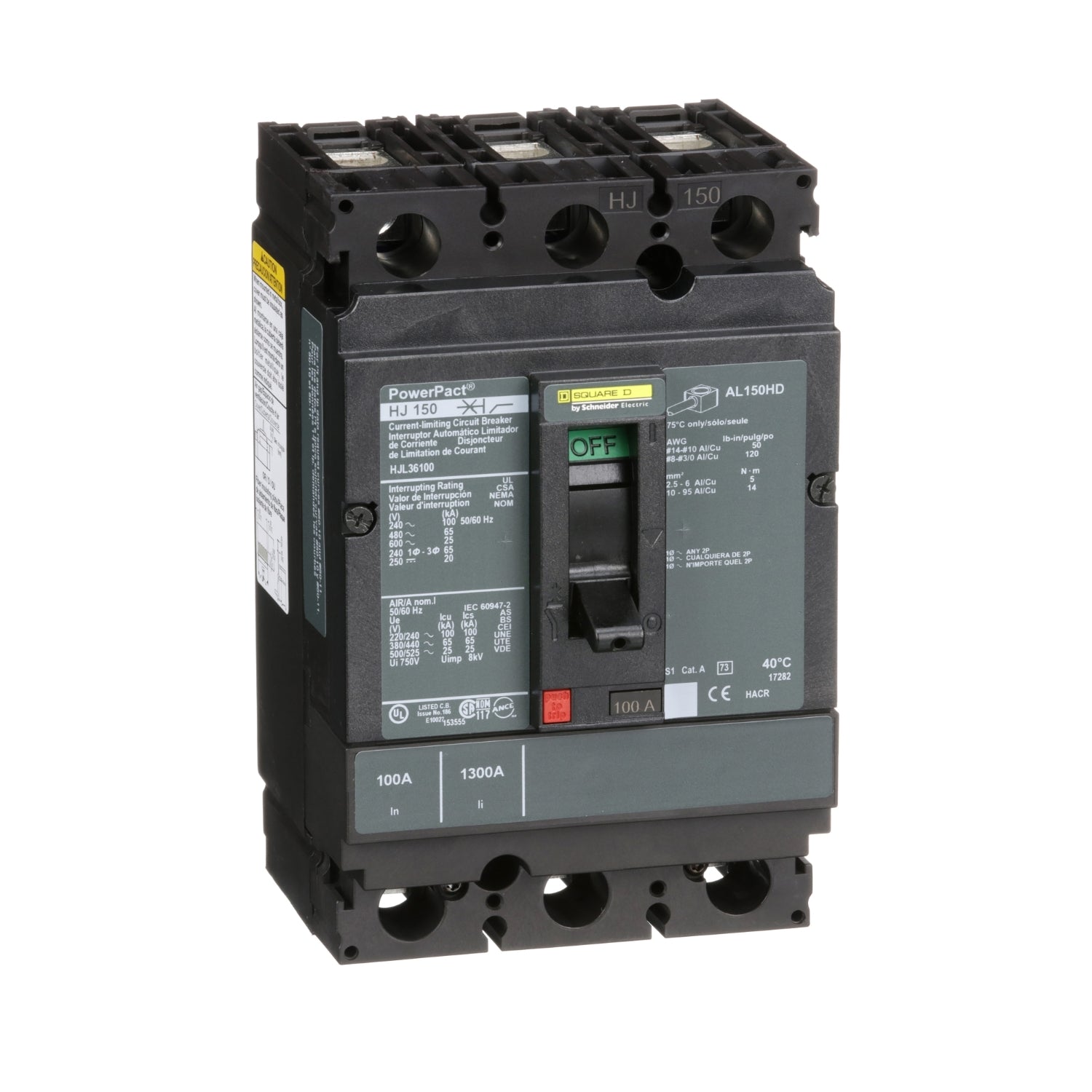

HJL36100 | Schneider Electric Circuit Breaker
- Regular price
- $682.00
- Sale price
- $682.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HJL36100
Description
The HJL36100 is a thermal-magnetic circuit breaker from the PowerPacT H series, engineered to safeguard electrical systems against damage caused by overloads and short circuits. Offering a breaking capacity of 25kA at 600VAC, this breaker ensures reliable circuit protection.
Featuring dual-break rotating contacts, PowerPacT H-Frame circuit breakers effectively mitigate peak current levels during short circuit faults. They are equipped with an integral push-to-trip button in the cover, facilitating manual tripping when necessary.
Technical Specifications
|
Part # |
HJL36100 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
[In] Rated Current |
100 A |
|
Number of Poles |
3P |
|
Protected Poles Description |
3t |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
J |
|
[Ue] Rated Operational Voltage |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
1700 A |
|
Magnetic Hold Current |
900 A |
|
Continuous Current Rating |
80 % |
|
[Ui] Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 14...AWG 3/0 aluminum/copper terminal |
|
Local Signalling |
Switched off (OFF) 1 trip indicator green) |
|
Mounting Mode |
Unit mount lug) |
|
Mounting Support |
Lug |
|
Electrical Connection |
Lugs, line Lugs, load |
|
Terminal Identifier |
AL150HD Power wire stripping length |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb(US) (2.2 kg) |
|
Quantity per Set |
1 |
|
Communication Interface |
Modbus Ethernet |
|
Circuit Breaker Application |
HACR rated |
|
IP Degree of Protection |
Front cover IP40 IEC 60529 |
|
Pollution Degree |
3 IEC 60947-1 |
|
Ambient Air Temperature for Operation |
-13…158 °F (-25…70 °C) |
|
Ambient Air Temperature for Storage |
-58…185 °F (-50…85 °C) |
Information About HJL36100
PowerPacT H-Frame circuit breakers, exemplified by the HJL36100 model, are engineered to safeguard electrical systems against the detrimental effects of overloads and short circuits. These circuit breakers, part of the PowerPacT H series, offer a choice between thermal magnetic or Micrologic electronic trip protection units, catering to diverse application requirements. The HJL36100 circuit breaker, specifically, provides thermal magnetic circuit protection and boasts a formidable breaking capacity of 25kA at 600VAC.
Equipped with dual-break rotating contacts, all PowerPacT H-Frame circuit breakers, including the HJL36100, effectively mitigate peak current levels during short circuit faults, thereby enhancing system safety and reliability. Moreover, these circuit breakers feature an integral push-to-trip button integrated into the cover, allowing for manual tripping when necessary.
Available in 2 and 3-pole unit mount configurations, as well as I-Line constructions, the PowerPacT H circuit breakers offer versatile installation options to suit various setups. The HJL36100 model, in particular, incorporates lugs on both the line and load sides, facilitating convenient and secure electrical connections.
With its robust specifications, the PowerPacT HJL36100 circuit breaker delivers a continuous current rating of 80%, ensuring reliable performance under normal operating conditions. Furthermore, adhering to stringent UL, CSA, NOM, and IEC standards, and bearing the CE mark, PowerPacT H circuit breakers, including the HJL36100, uphold industry-leading quality and compliance standards.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
