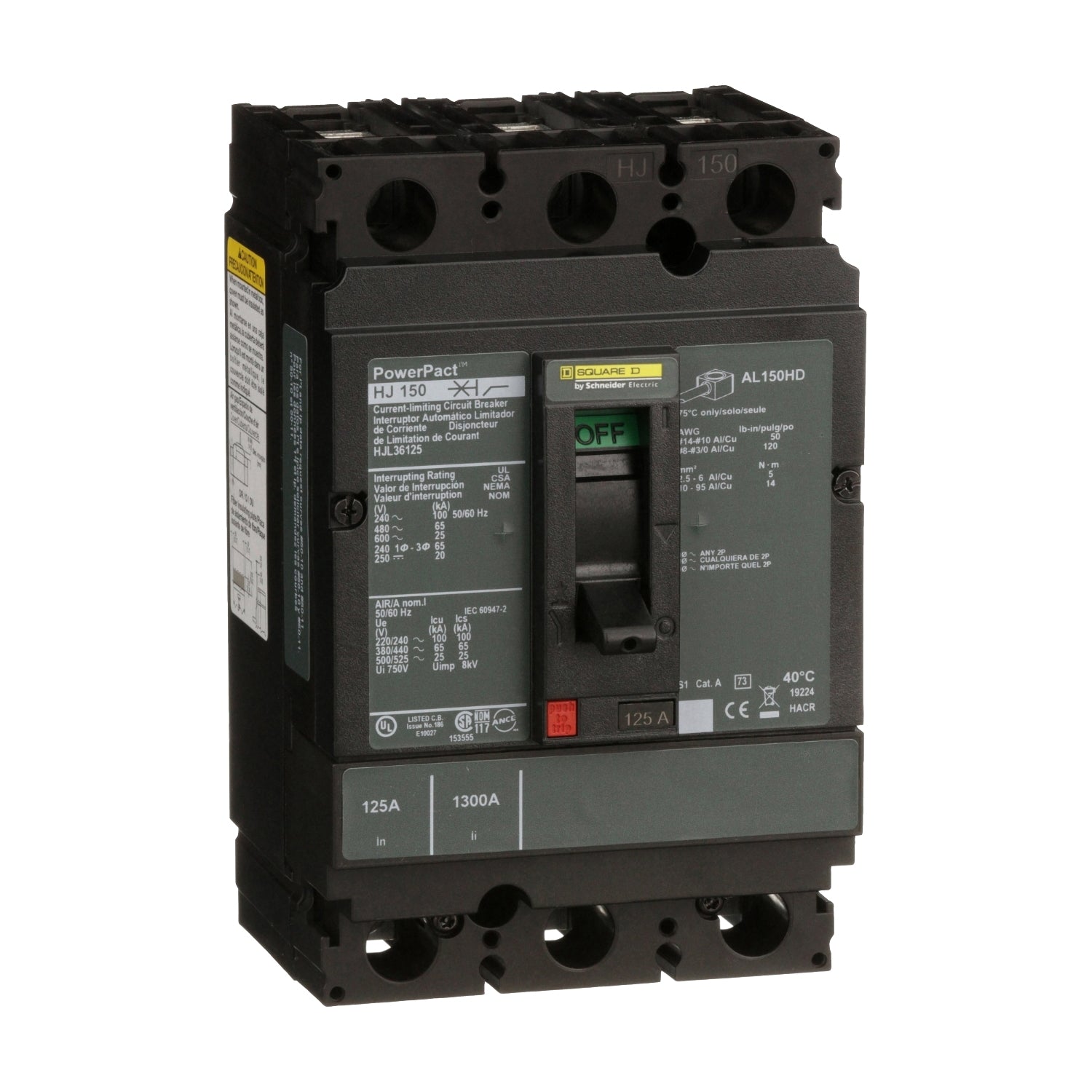

HJL36125 | Schneider Electric Circuit Breaker
- Regular price
- $1,419.00
- Sale price
- $1,419.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: HJL36125
Description
The HJL36125 is a PowerPacT H-Frame Circuit Breaker, rated at 125A with a 3-pole configuration and a voltage rating of 600VAC. It offers a breaking capacity of 25kA. This circuit breaker provides thermal magnetic protection and features lugs on both the line and load sides. All PowerPacT H-Frame circuit breakers, including the HJL36125, are equipped with dual-break rotating contacts to reduce peak current during short circuit faults. They also include an integral push-to-trip button for manual operation. PowerPacT H-Frame circuit breakers are available in both unit mount and I-Line constructions. The continuous current rating is 80%. Compliance includes UL, CSA, NOM, and IEC standards, and the breaker is CE marked.
Technical Specifications
|
Part # |
HJL36125 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product Range |
PowerPact |
|
Product Name |
PowerPact H |
|
Line Rated Current |
125 A |
|
Number of Poles |
3 |
|
Protected Poles Description |
3t |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
J |
|
Rated Operational Voltage (Ue) |
690 V AC 50/60 Hz IEC 60947-3 |
|
Rated Impulse Withstand Voltage (Uimp) |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
1700 A |
|
Magnetic Hold Current |
900 A |
|
Continuous Current Rating |
80% |
|
Rated Insulation Voltage (Ui) |
750 V IEC 60947-2 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
Terminal AWG Gauge |
AWG 14...AWG 3/0 aluminium/copper |
|
Local Signalling |
Switched off (OFF) 1 trip indicator (green) |
|
Mounting Mode |
Unit mount (lug) |
|
Power Wire Stripping Length |
0.63 in (16 mm) |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb (2.2 kg) |
|
Quantity per Set |
1 |
|
IP Degree of Protection |
Front cover IP40 IEC 60529 |
|
Pollution Degree |
3 IEC 60947-1 |
|
Ambient Air Temperature for Operation |
-13…158 °F (-25…70 °C) |
|
Ambient Air Temperature for Storage |
-58…185 °F (-50…85 °C) |
Information About HJL36125
The HJL36125 PowerPacT H-Frame circuit breaker is engineered to safeguard electrical systems from potential damage caused by overloads and short circuits. These circuit breakers are versatile, offering both thermal magnetic and Micrologic electronic trip protection units. The HJL36125 specifically provides thermal magnetic circuit protection with a robust breaking capacity of 25kA at 600VAC.
Each PowerPacT H-Frame circuit breaker features dual-break rotating contacts that effectively mitigate peak current during short circuit faults. Additionally, all models include an integral push-to-trip button integrated into the cover for manual tripping when necessary. Available in configurations for 2 and 3-pole unit mount and I-Line constructions, the HJL36125 incorporates lugs on both the line and load sides for secure electrical connections.
Rated at 125A across 3 poles, this circuit breaker maintains a continuous current rating of 80%, ensuring reliable operation under varying load conditions. The PowerPacT H series conforms to rigorous UL, CSA, NOM, and IEC standards, underscoring its adherence to international safety and performance benchmarks. Furthermore, it carries the CE marking, attesting to its compliance with European Union regulations.
