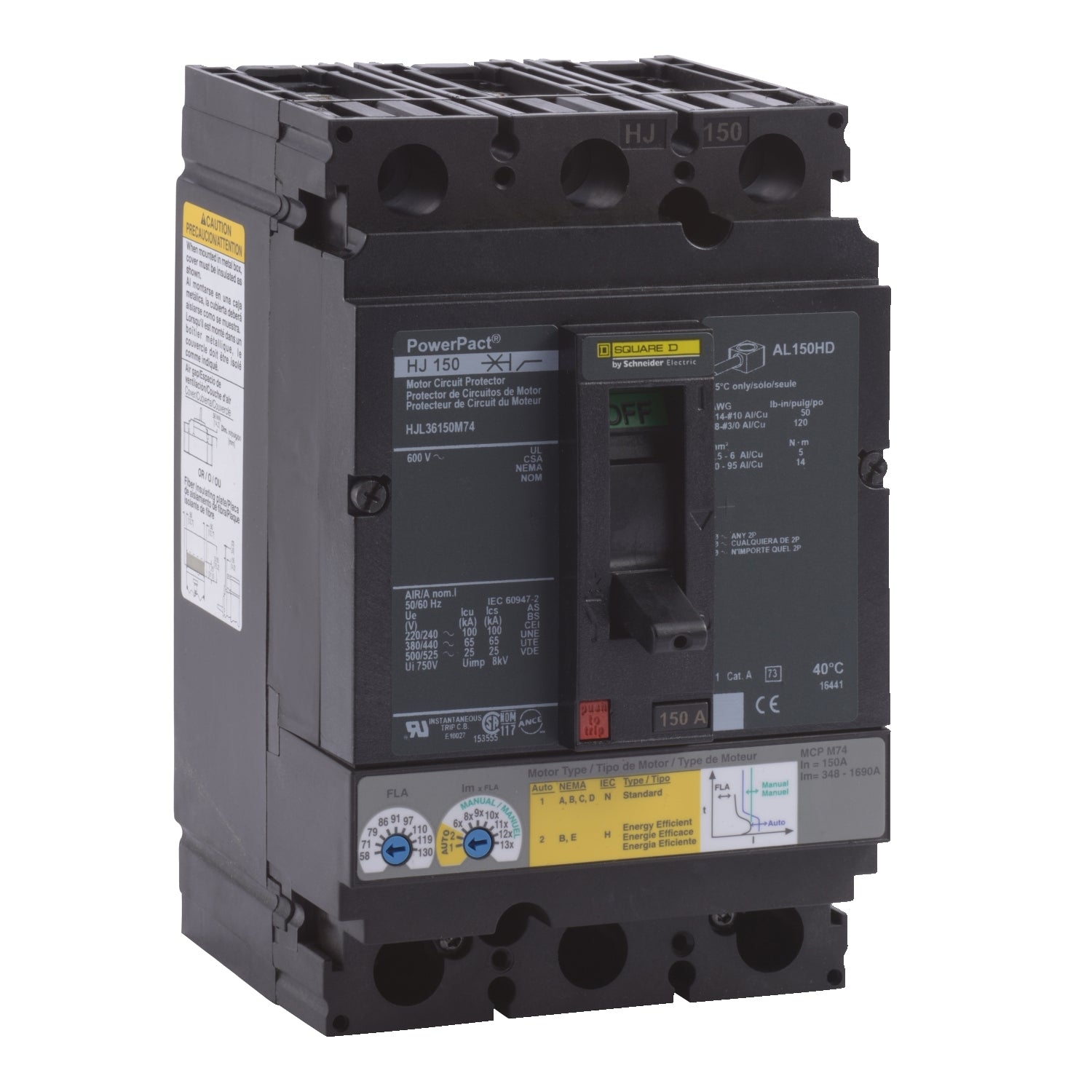

HJL36150M74 | Schneider Electric Motor Circuit Protector
- Regular price
- $1,584.00
- Sale price
- $1,584.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HJL36150M74
Description
The HJL36150M74 is a Motor Circuit Protector (MCP) from the PowerPacT H series, engineered to provide instantaneous-trip circuit protection for motors. Designed to withstand transient motor inrush currents without triggering nuisance tripping, PowerPacT MCPs offer reliable short circuit protection.
This specific PowerPacT H MCP is configured with a 150A rating and features 3 poles, ensuring compatibility with various motor setups. With a breaking capacity of 25kA at 600VAC, it ensures robust protection against electrical faults.
Equipped with lugs on both the line and load sides, this motor protector offers versatile connectivity options. It accepts the same accessories and terminals as PowerPacT H circuit breakers, enhancing flexibility in installation and configuration.
Technical Specifications
|
Part # |
HJL36150M74 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact H |
|
Product or Component Type |
Motor Circuit Protector |
|
Device Application |
Distribution |
|
Line Rated Current |
150 A |
|
Number of Poles |
3P |
|
Protected poles description |
3t |
|
Control Type |
Toggle |
|
Breaking capacity code |
J |
|
[Ue] rated operational voltage |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
[Ith] conventional free air thermal current |
58…130 A |
|
Magnetic tripping current |
348…1690 A |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
AWG 14...AWG 3/0 aluminium/copper |
|
Mounting mode |
Unit mount lug |
|
Mounting Support |
Lug |
|
Electrical connection |
Lugs, line |
|
|
Lugs, load |
|
Terminal identifier |
AL150HD |
|
Power wire stripping length |
0.63 in (16 mm) |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb(US) (2.2 kg) |
|
Quantity per Set |
1 |
|
IP degree of protection |
Front cover IP40 IEC 60529 |
|
Pollution degree |
3 IEC 60947-1 |
|
Ambient air temperature for operation |
-13…158 °F (-25…70 °C) |
|
Ambient Air Temperature for Storage |
-58…185 °F (-50…85 °C) |
Information About HJL36150M74
The HJL36150M74 is a Motor Circuit Protector (MCP) belonging to the PowerPacT H series, specifically designed as instantaneous-trip circuit breakers tailored to provide short circuit protection for motors. These MCPs feature a unique design that enables them to accommodate transient motor inrush currents effectively, minimizing the occurrence of nuisance tripping.
Configured with a rating of 150A and equipped with three poles, the PowerPacT H MCP ensures robust protection for motor circuits. With a breaking capacity of 25kA at 600VAC, it guarantees reliable performance under high electrical fault conditions.
Featuring lugs on both the line and load sides, this motor protector offers versatile connectivity options, facilitating easy installation and configuration. Moreover, it is compatible with the same accessories and terminals as PowerPacT H circuit breakers, enhancing flexibility and compatibility in electrical systems.
Operating with a continuous current rating of 80%, the HJL36150M74 ensures consistent and uninterrupted operation under varying load conditions. Additionally, it adheres to stringent safety standards, being compliant with UL, CSA, and IEC standards, and bears the CE mark, signifying conformity with European regulatory requirements.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
