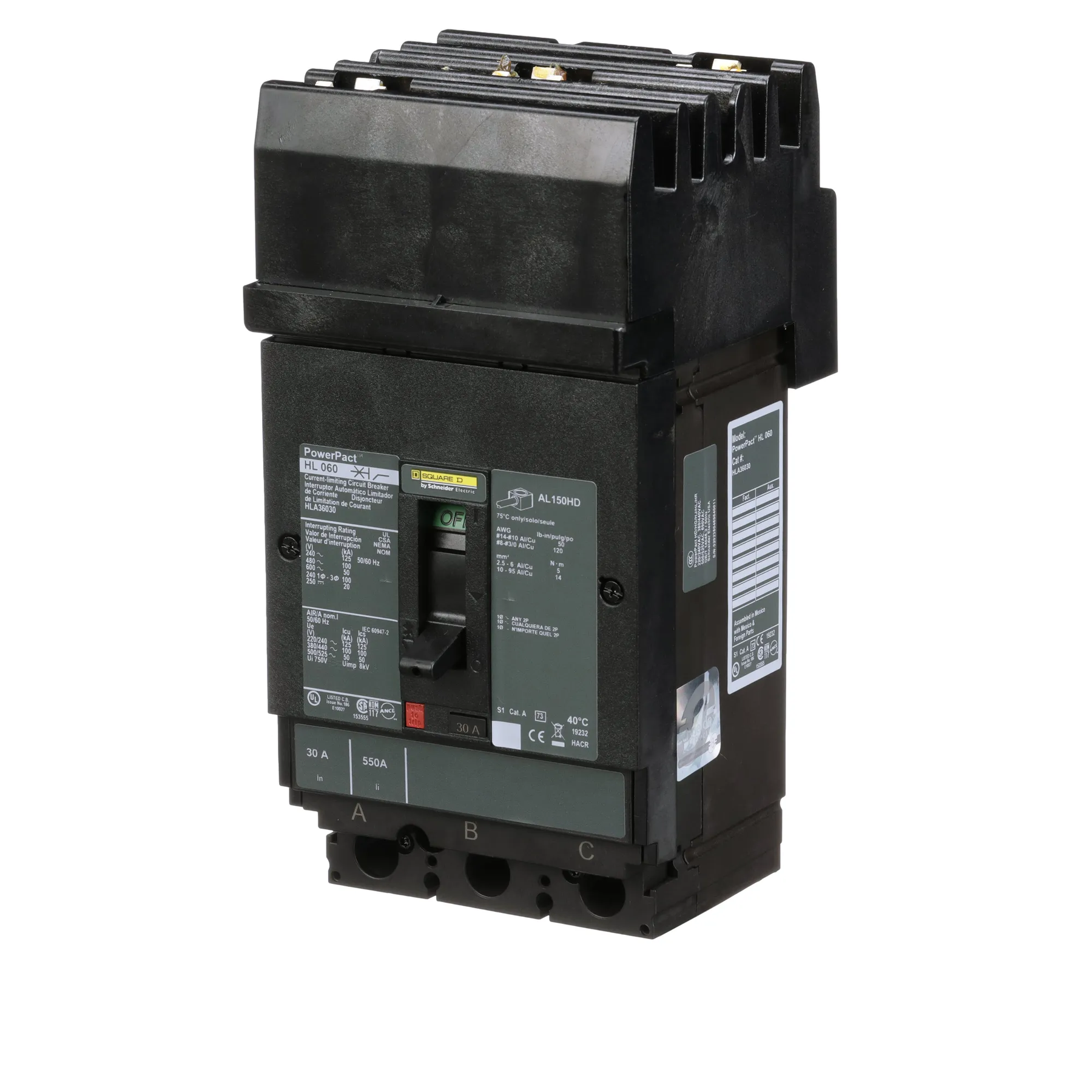

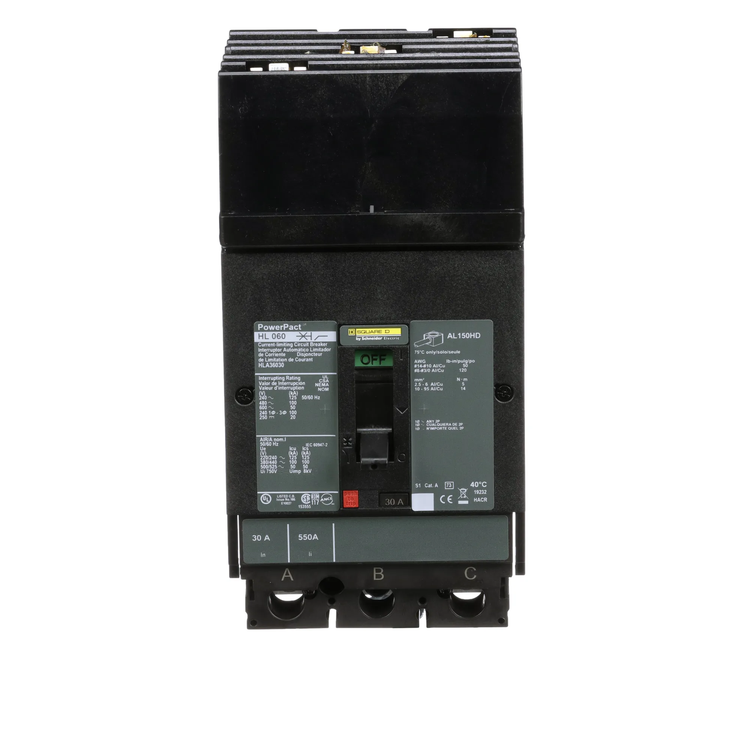

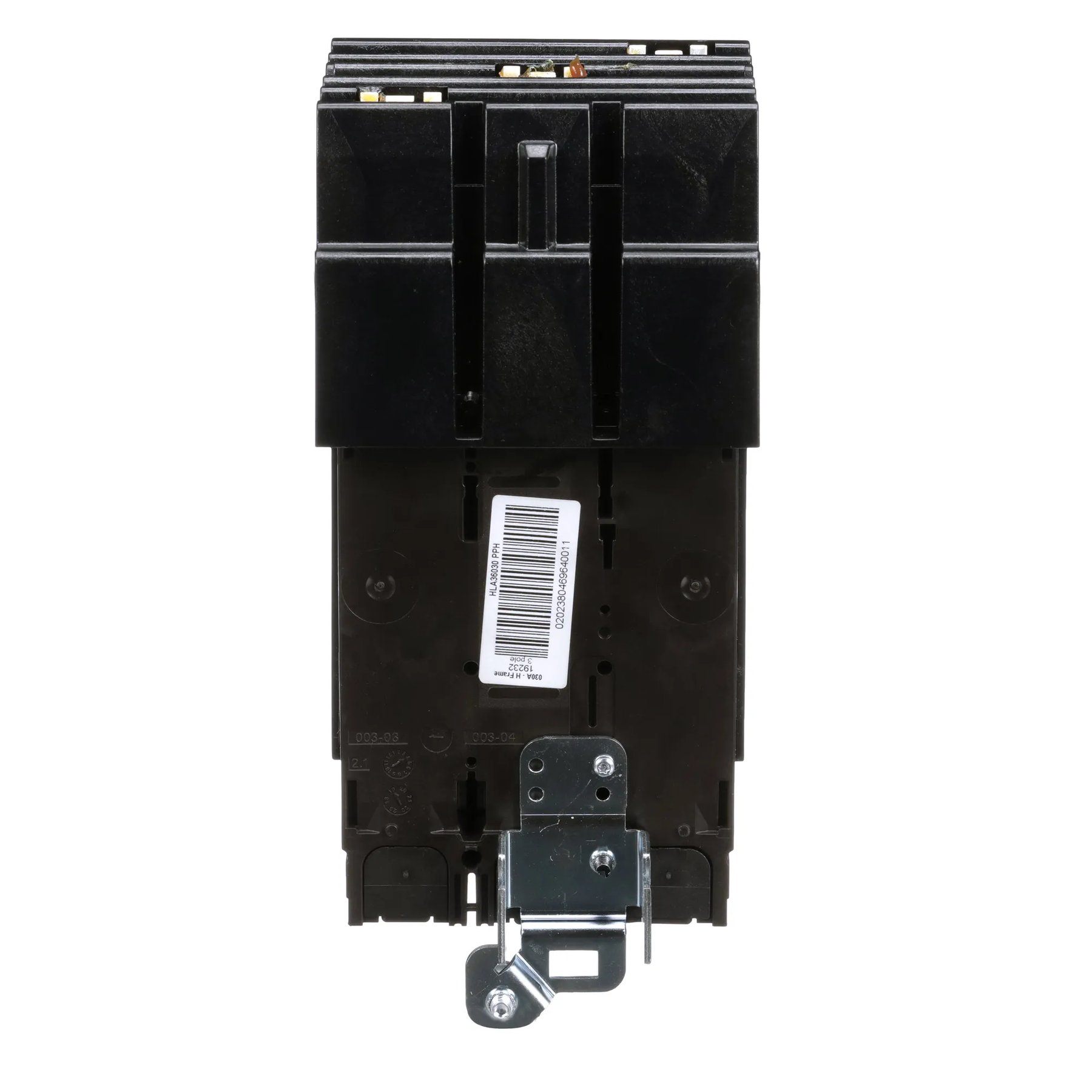

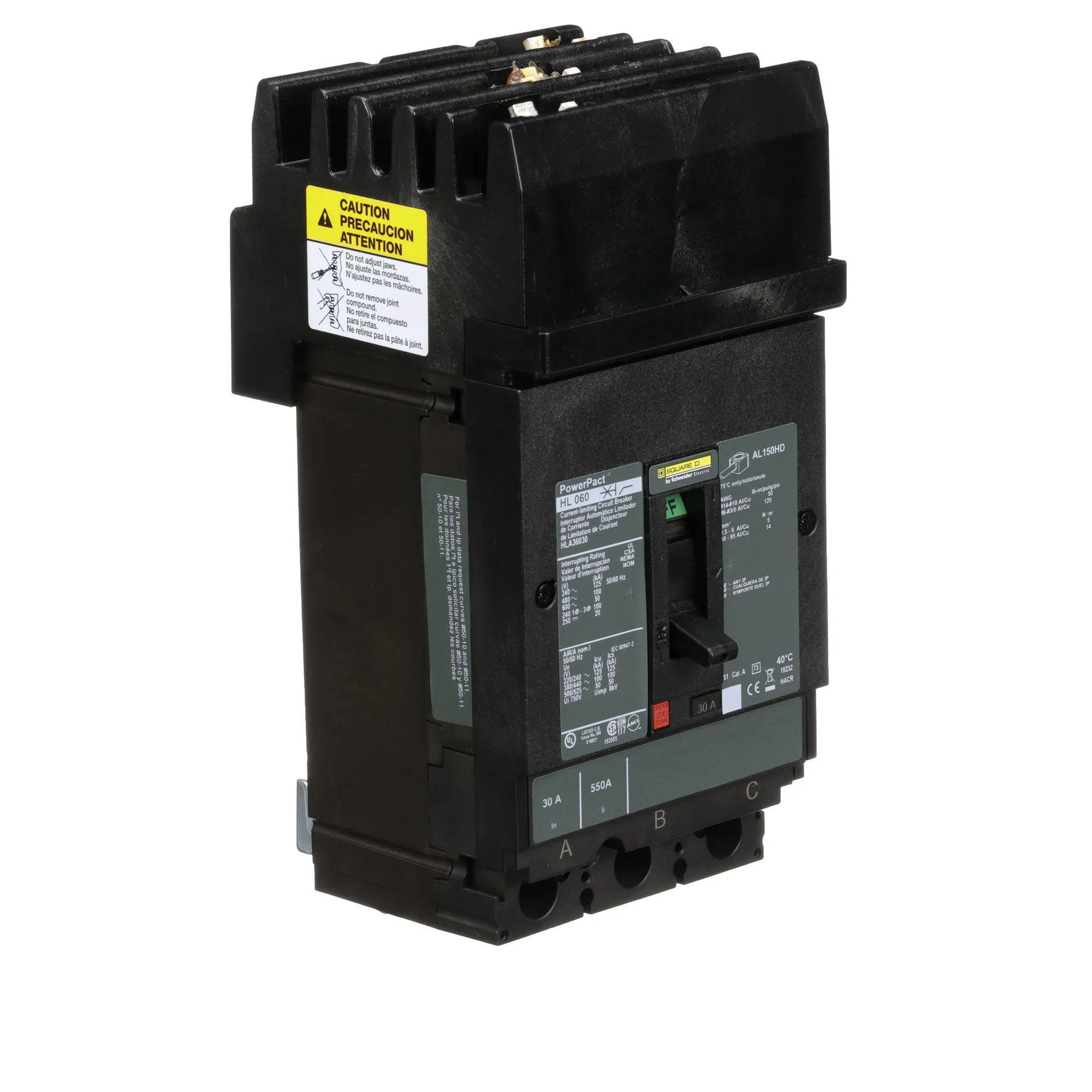

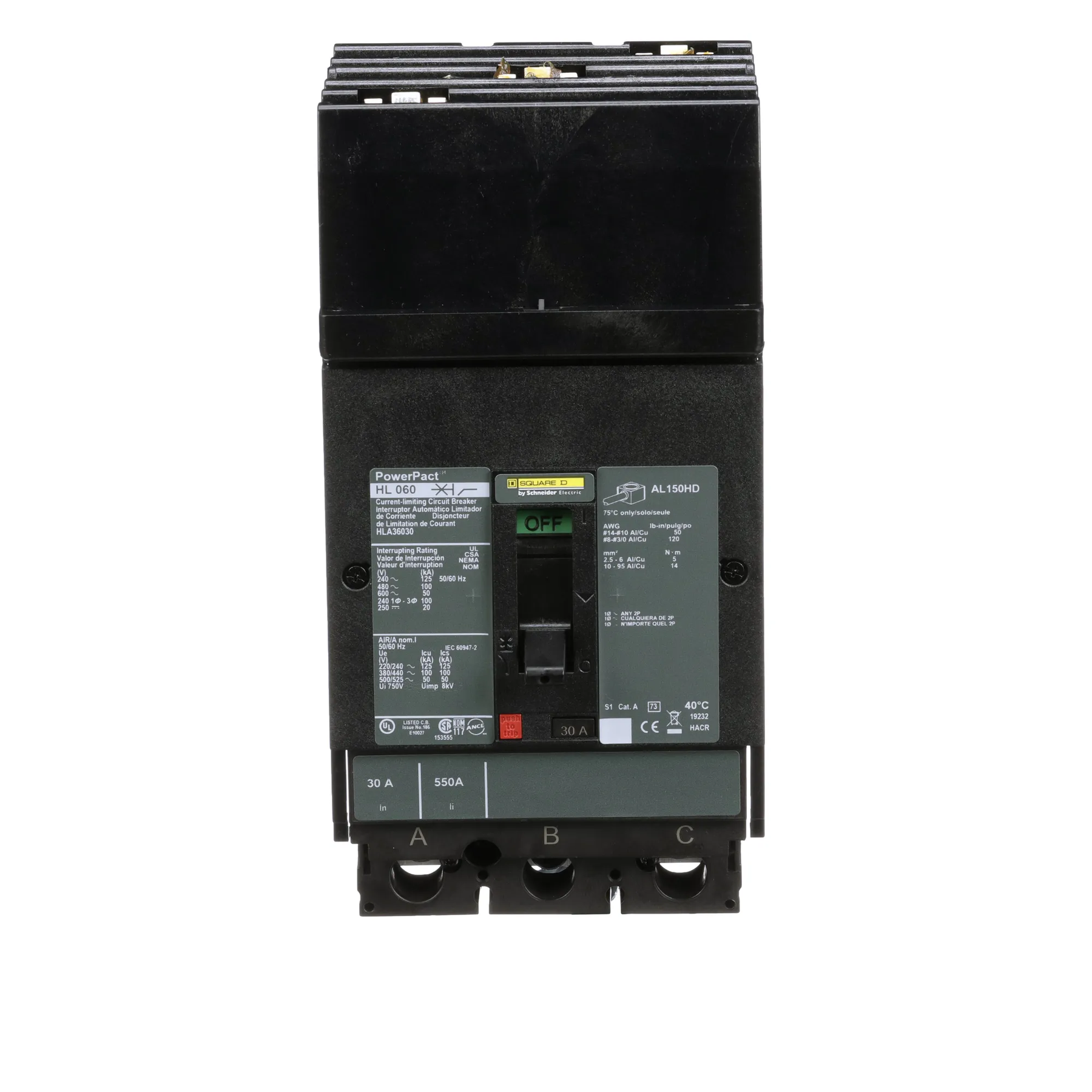

HLA36030 | Square D PowerPacT H-Frame 30A 3-Pole Molded Case Circuit Breaker, 600VAC
- Regular price
- $1,278.00
- Sale price
- $1,278.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HLA36030
Description
The Square D HLA36030 is a PowerPacT H-frame molded case circuit breaker designed to provide dependable overcurrent protection in commercial and industrial power distribution systems. This 3-pole breaker is rated at 30 amps and up to 600 VAC, utilizing a thermal magnetic, current-limiting trip mechanism for effective overload and short-circuit protection. Built for I-Line plug-in mounting, the HLA36030 enables secure and efficient installation in compatible panelboards and switchboards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | HLA36030 |
| Subcategory | Molded Case Circuit Breaker |
| Series / Frame | PowerPacT H-Frame |
| Breaker Type | HLA |
| Amperage Rating | 30 A |
| Voltage Rating | 600 VAC, 250 VDC |
| Number of Poles | 3 |
| Phase | Three Phase |
| Trip Unit Type | Thermal Magnetic, Current Limiting |
| Trip Functions | Long-Time and Instantaneous |
| Interrupt Rating | 100 kA @ 480 VAC, 50 kA @ 600 VAC |
| Continuous Current Rating | 80% |
| Mounting Type | I-Line Plug-In |
| Connection Type | I-Line Line Side / Lug Load Side |
| Wire Size Range | AWG 14 to AWG 3/0 (Aluminum/Copper) |
| Operating Temperature | -25°C to 70°C |
| Certifications | UL Listed, CSA Certified, CE Marked |

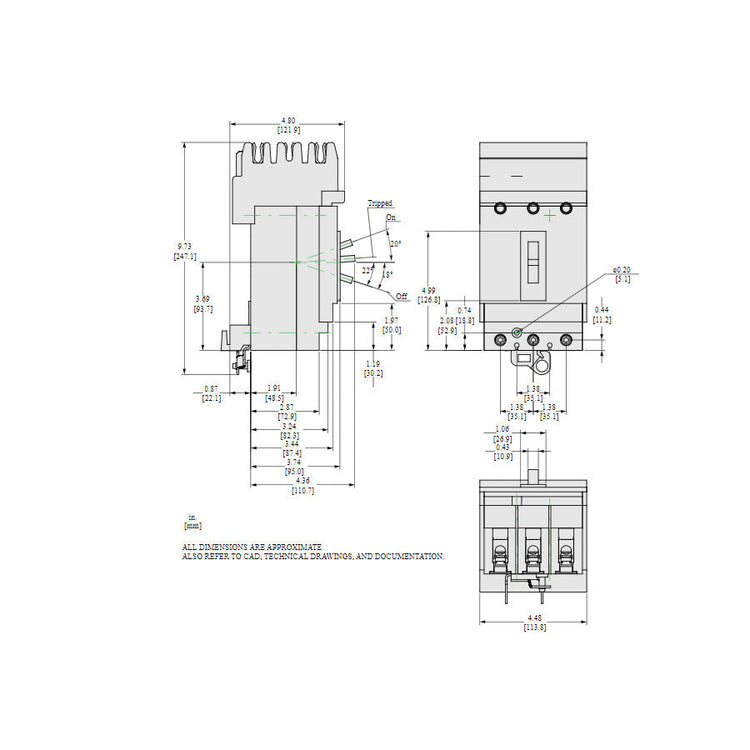

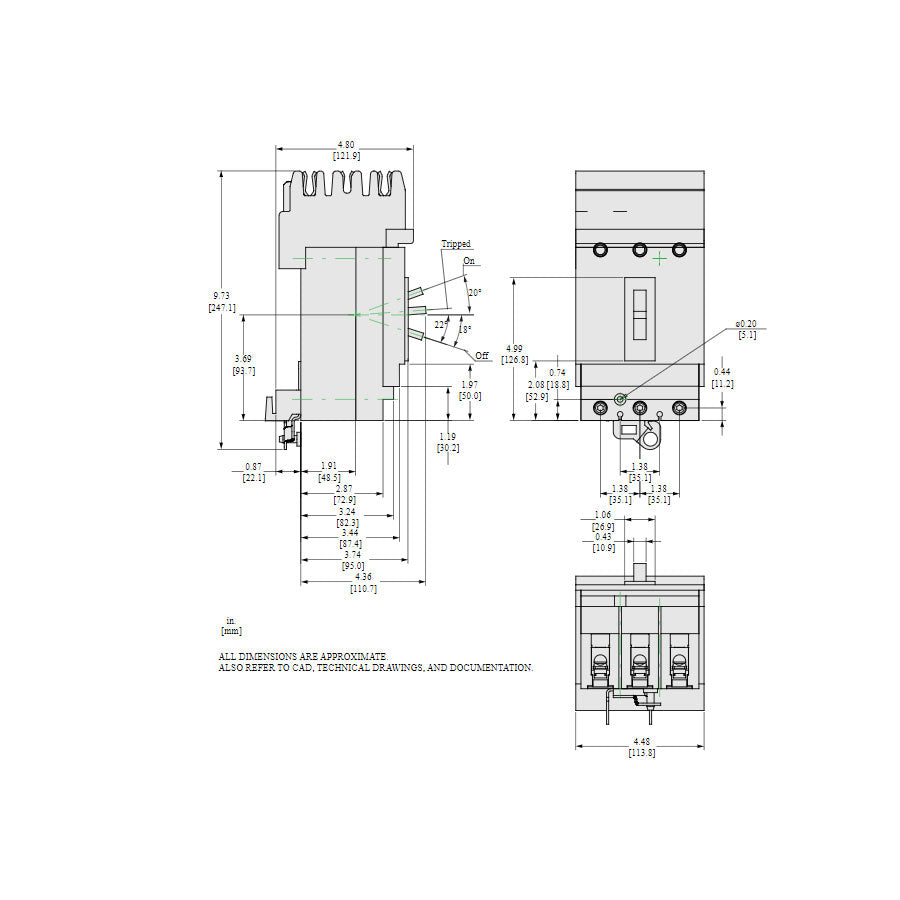

| Dimensions (H × W × D) | 6.42 in × 4.44 in × 3.09 in |
| Weight | 2.49 lb |
Information About HLA36030
The HLA36030 is a Square D PowerPacT H-series circuit breaker engineered for three-phase distribution applications requiring compact, high-performance protection. It features a non-interchangeable thermal magnetic trip unit with long-time and instantaneous functions, optimized for reliable fault interruption. The breaker uses I-Line connections on the line side with mechanical lugs on the load side, allowing streamlined integration into I-Line distribution equipment. Designed to meet UL, CSA, and CE standards, it supports international installations and complies with recognized electrical safety requirements.
Key Features:
- 30 Amp Current Rating: Designed for low-current three-phase distribution circuits
- 3-Pole Configuration: Supports balanced protection across three conductors
- Thermal Magnetic Trip Unit: Provides long-time and instantaneous overcurrent protection
- High Interrupting Capacity: Rated up to 100kA at 480 VAC for robust fault handling
- I-Line Plug-In Mounting: Enables fast, secure installation in compatible systems
- Current-Limiting Design: Reduces peak fault energy to protect downstream equipment
- Broad Wire Compatibility: Accepts aluminum or copper conductors from AWG 14 to 3/0
The HLA36030 delivers the reliability and precision required for commercial and industrial power distribution protection.
