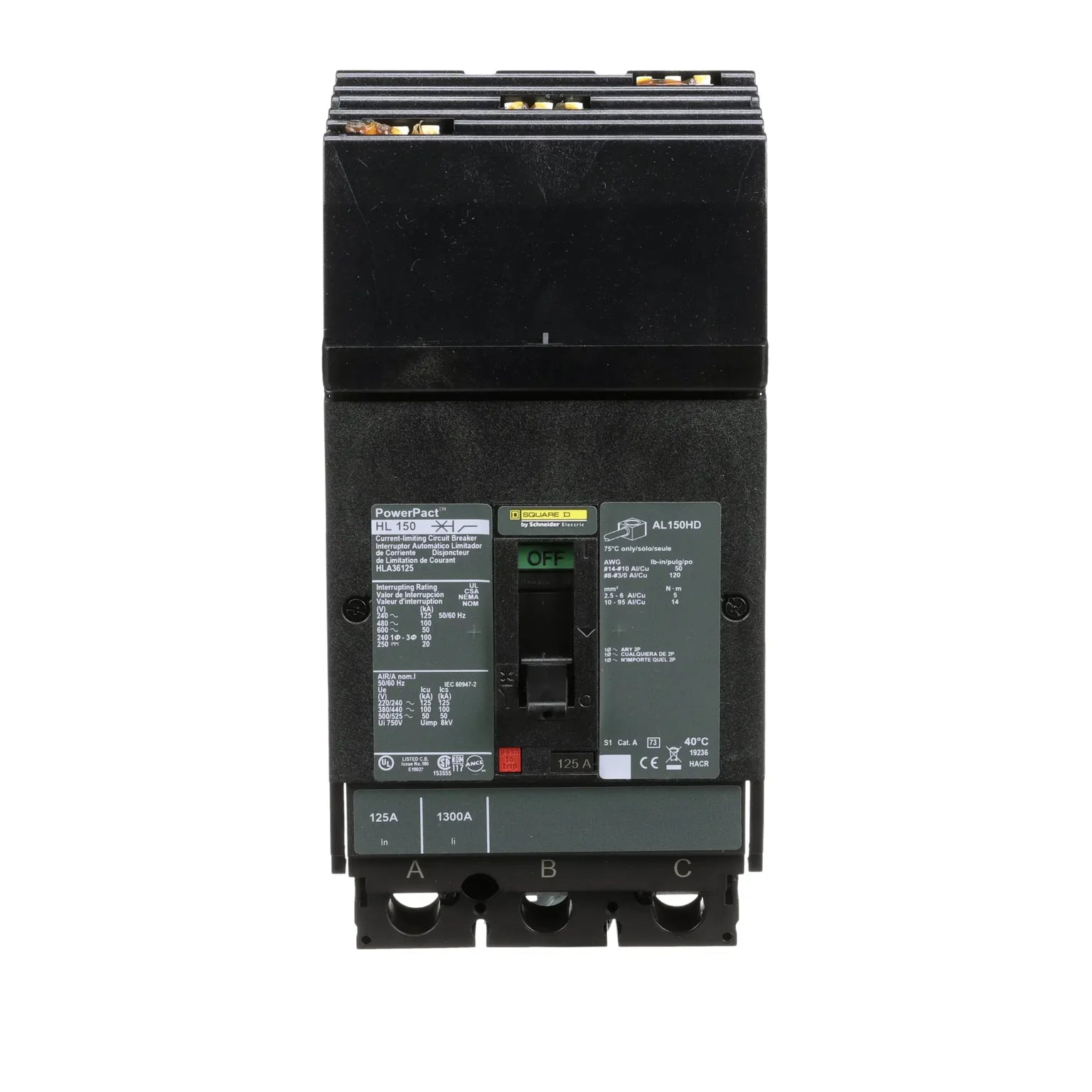

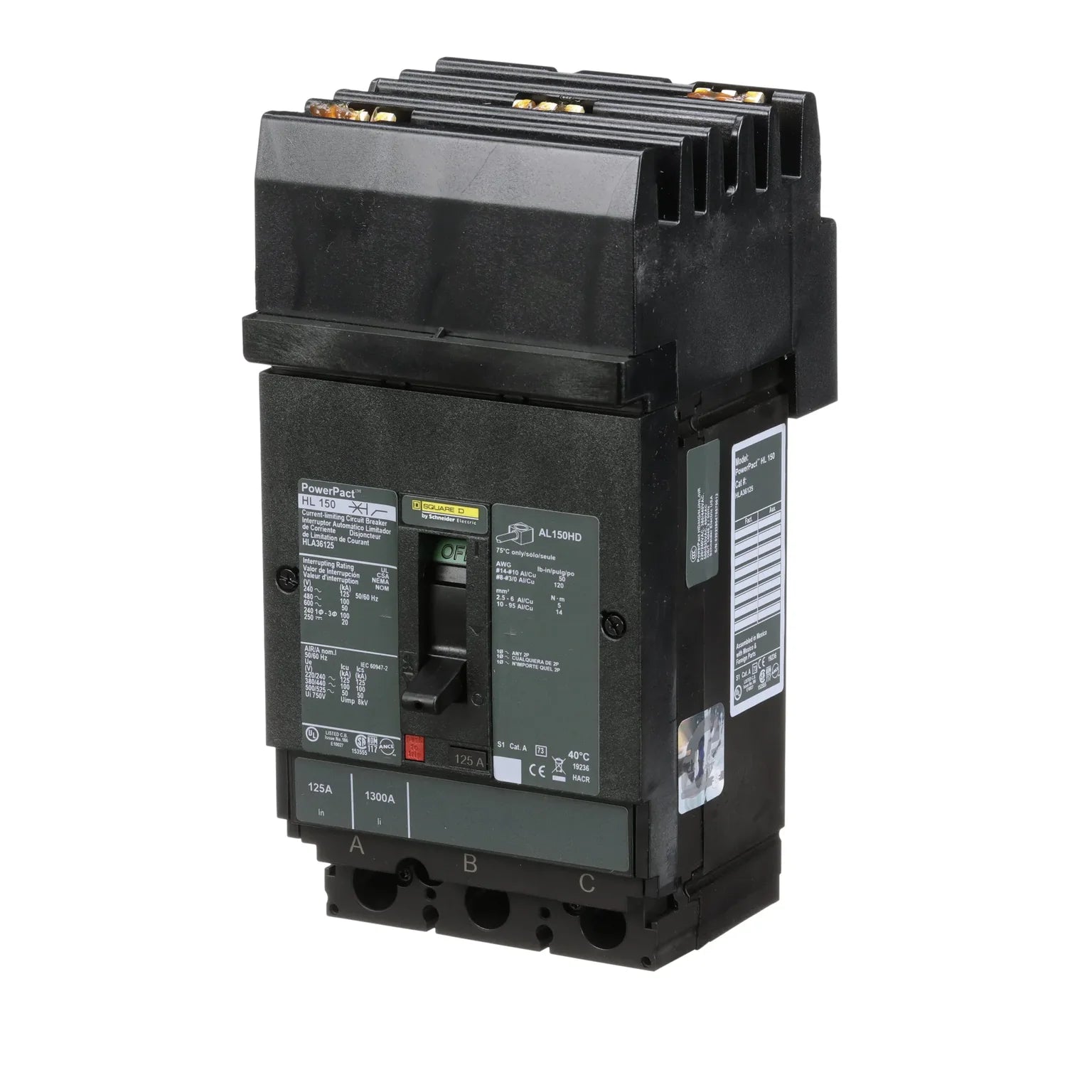

HLA36125 | Schneider Electric Circuit Breaker

Description

Part HLA36125 is a molded case circuit breaker under the circuit breaker category. It is rated for 600V and 125A, designed for overcurrent protection in electrical systems.

Technical Specifications

Information About HLA36125

The HLA36125 is a molded case circuit breaker specifically designed for reliable and robust overcurrent protection in electrical distribution systems. Classified under the circuit breaker category, this device is engineered to interrupt excessive current flow to prevent equipment damage and mitigate potential hazards associated with electrical overloads and short circuits. With a voltage rating of 600V, it is suitable for deployment in high-voltage applications, ensuring compatibility across a broad range of industrial, commercial, and institutional electrical systems. This voltage capacity provides the necessary insulation and arc resistance to support safe operations in systems with higher power demands, aligning with industry standards for secure high-voltage circuit protection.

Rated for a continuous current of 125A, the HLA36125 is capable of handling moderate to high electrical loads, making it an ideal solution for applications where consistent, high-current throughput is required. This current rating supports use in primary distribution networks, machinery, and larger systems that demand reliable protection against abnormal current conditions. The 125A capacity enables this circuit breaker to handle peak currents without nuisance tripping, offering stability in systems where consistent power supply is critical. This feature is particularly advantageous in environments such as manufacturing plants, data centers, and commercial facilities where uninterrupted operation is essential.

The molded case construction of the HLA36125 provides several advantages, including enhanced durability and compactness, allowing the device to maintain structural integrity under a wide range of operating conditions. The molded case serves as an insulated housing that fully encases the internal components, offering improved protection against environmental factors such as dust, moisture, and other contaminants. This sealed design minimizes maintenance needs and extends the lifespan of the circuit breaker, making it well-suited for installation in areas with variable environmental conditions. Additionally, the molded case design contributes to the device’s resistance to impact and vibration, ensuring reliable performance even in heavy-duty and industrial settings.

A key feature of the HLA36125 is its trip mechanism, which is calibrated to respond promptly to overcurrent conditions by interrupting the electrical circuit. This mechanism ensures that the breaker responds within milliseconds, reducing the risk of overheating and component damage. The trip unit is designed to maintain high sensitivity to both overload and short-circuit events, ensuring reliable performance under a wide range of fault conditions. This high-precision tripping function is essential for protecting downstream equipment, safeguarding personnel, and maintaining the stability of the broader electrical system. The breaker’s trip characteristics are tailored to meet rigorous safety standards, making it a dependable choice for systems where safety and reliability are paramount.
